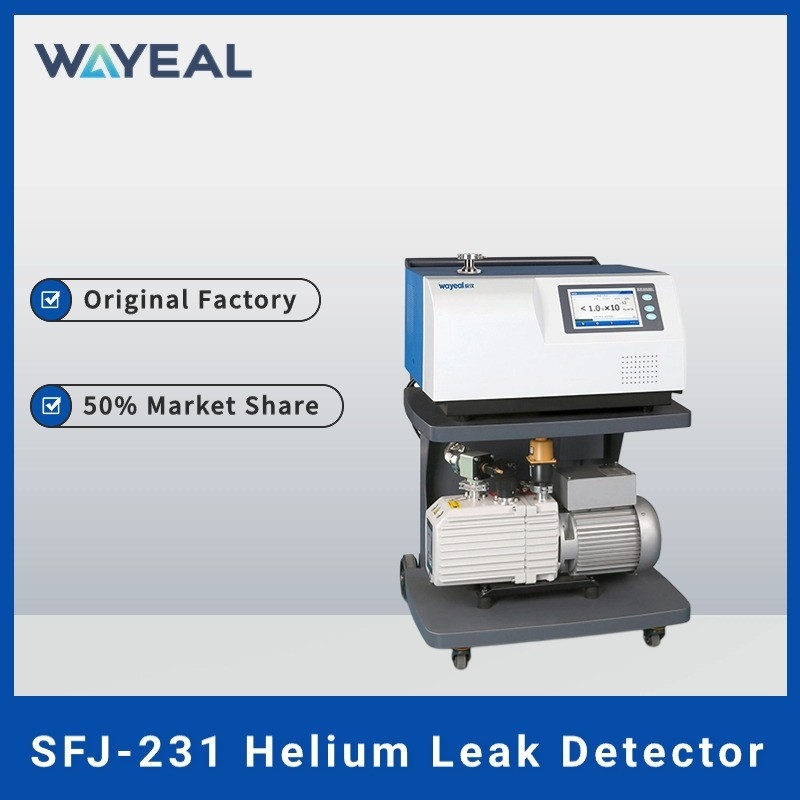

Wayeal SFJ-231 RS232/485 Communication Interface Helium Leak Detection Equipment

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-231
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
I/O Input Output Interface 8 Inputs, 8 Outputs Product Name Helium Leak Detector
Response Time(s) <1 Diamension 645*678*965mm
MES Interface Standard Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s
Start Time (min) ≤2 Leak Detection Port DN25KF
High Light

Robust Helium Leak Detector

,

Pressure 1500Pa Helium Leak Detector

,

645*678*965 Helium leak detection system

Leave a Message
Product Description

Introduction of Helium Leak Detector:



Helium Leak Detector is an industrial vacuum detection device designed for vaccum leak detection. It is a mass spectrometer leak detector with superior sensitivity and accuracy. It has a mini leak detection rate of 5*10-9 Pa·m3/s and sniffer mode for maximum leak testing performance. It is suitable for all kinds of industrial vacuum leak detection applications.



Technical Parameters of Helium Leak Detector:



Wayeal SFJ-231 RS232/485 Communication Interface Helium Leak Detection Equipment








Performance Indicators

Minimum detectable leak rate
(Pa·m3/s)/ vacuum mode
5.0×10-13
Minimum detectable leak rate
(Pa·m3/s)/ sniffer mode
5.0×10-9
Response time(s) <1
Startup time(min) ≤2
Leakage detection range
(Pa·m3/s)
5.0×10-13~1.0×10-3
Leakage rate display range
(Pa·m3/s)
1.0×10-12~1.0×10-3
Maximum allowable leak detection pressure(Pa) 1330
Detectable quality 2,3,4(H2 , He3, He4)










Basic Configuration

Man-machine interface 7 "color LCD Touch Screen
Ion source 2pcs, iridium coated yttrium oxide, automatic switching
I/O Input/output interface Eight inputs and eight outputs
Communication interface RS232/485,USB*2
MES interface Standard
Physical size of instrument
(W)×(D)×(H),mm
645 x 678 x 965mm
Specifications of leak detection port DN25 KF
Power Supply AC220V,50Hz/60Hz
Operating temperature 0-40ºC
Power 1000W
Display language Both Chinese and English
Leakage rate display Figure, bar chart, curve chart


Applications of Helium Leak Detector:



Wayeal SFJ-231 Helium Leak Detector is a reliable and precise tool for industrial vacuum detection. It is certified by CE and comes with a minimum order quantity of 1 unit.  It is ideal for industrial leak detection, as it offers the highest accuracy and reliability. Helium leak detection has a wide range of applications and has been found to be an important process in various industries such as automotive, aerospace, HVAC, refrigeration and semiconductor manufacturing. From detecting leaks in refrigeration systems to finding leaks in underground pipelines, helium leak testing has shown efficacy across the everchanging sectors.



Optional Accessories of Helium Leak Detector

Spray probe, wireless remote control, 20 micron inlet filter, calibration leak, customized tooling, sniffer, leak detection chamber, helium pressure chamber, vaccum pump oil





Applications of Helium Leak Detector



Helium leak detection has a wide range of applications and has been found to be an important process in various industries such as automotive, aerospace, HVAC, refrigeration and semiconductor manufacturing. Semiconductor industry like packing, chip manufacturing, vacuummachine, epitaxial wafer, wafer, connector, filter, photovoltaic.





Methods of Helium Leak Detection

Wayeal SFJ-231 RS232/485 Communication Interface Helium Leak Detection Equipment 0

Wayeal SFJ-231 RS232/485 Communication Interface Helium Leak Detection Equipment 1

Wayeal SFJ-231 RS232/485 Communication Interface Helium Leak Detection Equipment 2



Wayeal SFJ-231 RS232/485 Communication Interface Helium Leak Detection Equipment 3



Wayeal SFJ-231 RS232/485 Communication Interface Helium Leak Detection Equipment 4Wayeal SFJ-231 RS232/485 Communication Interface Helium Leak Detection Equipment 5

Wayeal SFJ-231 RS232/485 Communication Interface Helium Leak Detection Equipment 6
