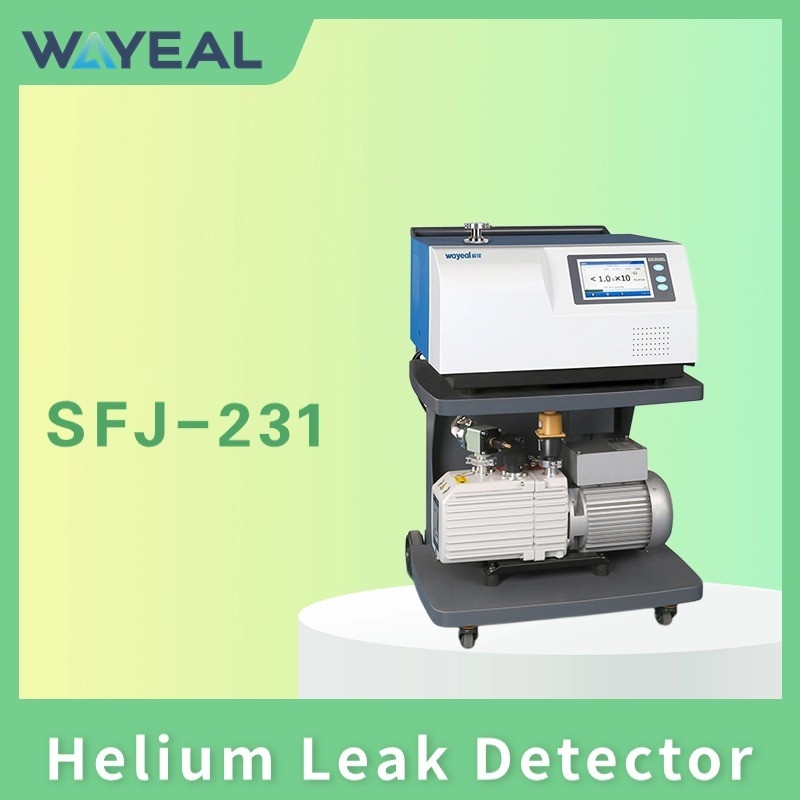

Wayeal SFJ-231 Mobile Helium Leak Detector Machine Price 5.0×10-13 Pa·m3/s

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number SFJ-231
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 30 days
Payment Terms L/C, T/T
Supply Ability 30 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Helium Leak Detector Power Supply AC220V, 50Hz/60Hz
Response Time(s) <1 Startup Time(min) ≤2
Detectable Quality 2,3,4(H2 , He3, He4) Operating Temperature 0-40ºC
High Light

Mobile Helium Leak Detector Machine

,

Helium Leak Detector Machine

Leave a Message
Product Description

Wayeal SFJ-231 Mobile Helium Leak Detector Machine Price 5.0×10-13 Pa·m3/s



Introduction of Helium Leak Detector



The helium leak detector, or helium mass spectrometer, is an indespensable vacuum troubleshooting tool. The tracer gas, helium, is introduced to a test part that is connected to the leak detector. The helium leaking through the test part enters through the system and this partial pressure is measured and the results are displayed on a meter. Moreover, we also offer many helium detector accessories such as gas regulator valves, helium spray guns, helium sniffer probes, and calibrated helium leak standards, as well as hard-to-find boards, ion sources, filaments, seals, and throttles.



Parameters of Helium Leak Detec

Wayeal SFJ-231 Mobile Helium Leak Detector Machine Price 5.0×10-13 Pa·m3/s







Performance Indicators

Minimum detectable leak rate
(Pa·m3/s)/ vacuum mode
5.0×10-13
Minimum detectable leak rate
(Pa·m3/s)/ sniffer mode
5.0×10-9
Response time(s) <1
Startup time(min) ≤2
Leakage detection range
(Pa·m3/s)
5.0×10-13~1.0×10-3
Leakage rate display range
(Pa·m3/s)
1.0×10-12~1.0×10-3
Maximum allowable leak detection pressure(Pa) 1330
Detectable quality 2,3,4(H2 , He3, He4)










Basic Configuration

Man-machine interface 7 "color LCD Touch Screen
Ion source 2pcs, iridium coated yttrium oxide, automatic switching
I/O Input/output interface Eight inputs and eight outputs
Communication interface RS232/485,USB*2
MES interface Standard
Physical size of instrument
(W)×(D)×(H),mm
645 x 678 x 965mm
Specifications of leak detection port DN25 KF
Power Supply AC220V,50HZ/60HZ
Operating temperature 0-40ºC
Power 1000W
Display language Both Chinese and English
Leakage rate display Figure, bar chart, curve chart





Optional Accessories of Helium Leak Detector

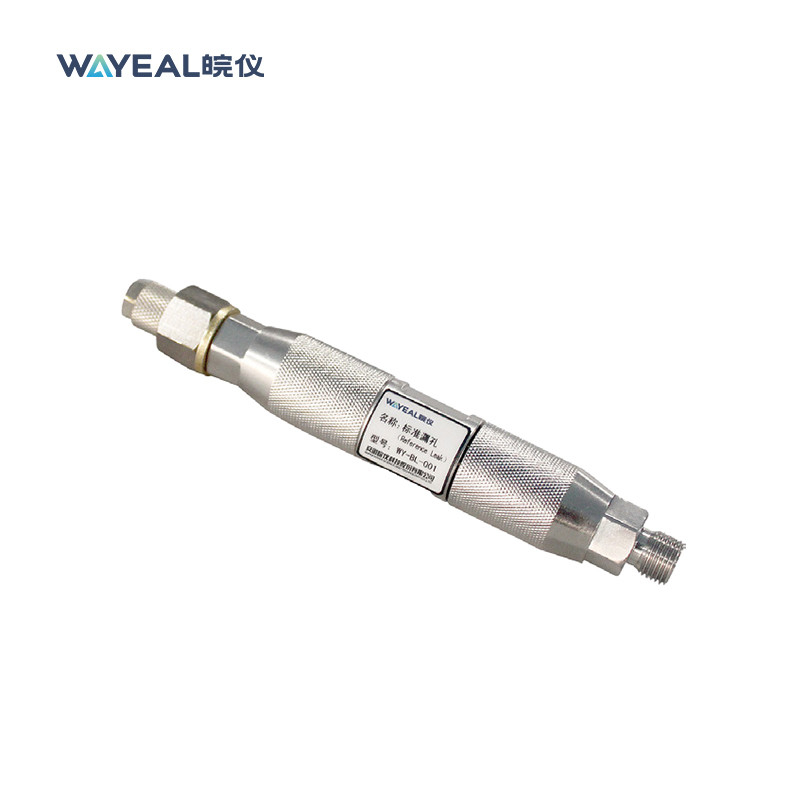

Spray probe, wireless remote control, 20 micron inlet filter, calibration leak, customized tooling, sniffer, leak detection chamber, helium pressure chamber, vaccum pump oil.





Applications of Helium Leak Detector



Medical Industry: Cochlear implant, cardiac pacemaker, cerebral pacemaker, endoscope, gastroscope, colonbscope, etc.



Traditional Vaccum Industry: Pump valve, casting, vacuum tube, gas pipe, bellows, LNG, steam, low tempefature tank truck, vacuum funace, vacuum coating, accelerator and so on.



Other Industries: Industrial process tools • power generation • high energy physics • research & development • nanotechnology instrumentation • small parts manufacturing



Methods of Helium Leak Detection

Wayeal SFJ-231 Mobile Helium Leak Detector Machine Price 5.0×10-13 Pa·m3/s 0

Wayeal SFJ-231 Mobile Helium Leak Detector Machine Price 5.0×10-13 Pa·m3/s 1

Wayeal SFJ-231 Mobile Helium Leak Detector Machine Price 5.0×10-13 Pa·m3/s 2



Wayeal SFJ-231 Mobile Helium Leak Detector Machine Price 5.0×10-13 Pa·m3/s 3



Wayeal SFJ-231 Mobile Helium Leak Detector Machine Price 5.0×10-13 Pa·m3/s 4Wayeal SFJ-231 Mobile Helium Leak Detector Machine Price 5.0×10-13 Pa·m3/s 5

Wayeal SFJ-231 Mobile Helium Leak Detector Machine Price 5.0×10-13 Pa·m3/s 6
