Fluorescence Quantitative Real Time PCR System 5 Channels

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number GT-96
Minimum Order Quantity 1 Unit
Price Negotiation
Packaging Details 1 unit of pcr analyzer packed in wooden cases
Delivery Time 30 Days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 30 Units/ Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Real-time Fluorescent Quantitative PCR Analyzer Quantification Error ±2%
Reaction System 10-100μL Quantitative Repeatability CV≤2%
Sample Linearity |r|≥0.990 Temperature Range 4℃-100℃
High Light

Fluorescence Real Time PCR System

,

Quantitative Real Time PCR System

,

5 Channels PCR System

Leave a Message
Product Description

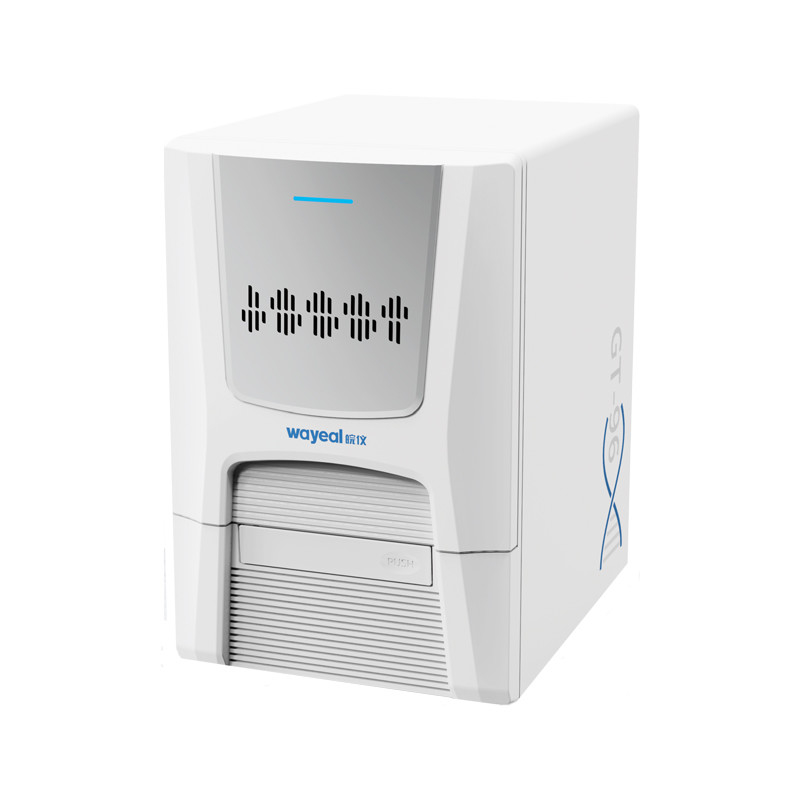

5 Channels Fluorescence Quantitative Real-time PCR System 96 PCR Analyzer



Product Introduction



As a necessary choice for quantitative analysis of molecular biology, real-time PCR system has been widely used in various fields such as scientific research, clinical detection and diagnosis, quality and safety testing, and forensic applications. The GT-96 Real-Time Fluorescence PCR instrument is a multiplexed fluorescence PCR analysis technology platform. The maximum throughput of the product is up to 96 samples, enabling five-channel fluorescence detection.



Product Parameters



5 Channels Fluorescence Quantitative Real-time PCR System 96 PCR Analyzer
Product Size 470*350*530mm
Power Supply 100-220VAC, 50/60Hz, 1000VA
Average Heating Rate ≥3.0℃/s
Average Cooling Rate ≥2.0℃/s
Temperature Control Accuracy ±0.1℃
Temperature Accuracy ±0.1℃
Temperature Uniformity ±0.1℃
Temperature Range 4℃-100℃
Light Source Light Source
Repeatability of Fluorescence Intensity Repeatability of Fluorescence Intensity
Uniformity of Fluorescence Intensity CV≤5%
Linearity of Fluorescence Intensity |r|≥0.990
Detection Channels 5 Channels
Dyes F1:FAM,SYBR Green
F2:HEX,VIC
F3:TAMRA,CY3
F4:ROX,TEXAS Red
F5:CY5
Reaction System 10-100μL
Kinetics Scope 1-1010 copies
Sample Linearity |r|≥0.990
Quantitative Repeatability CV≤2%
Quantification Error ±2%
Stability CV≤5%

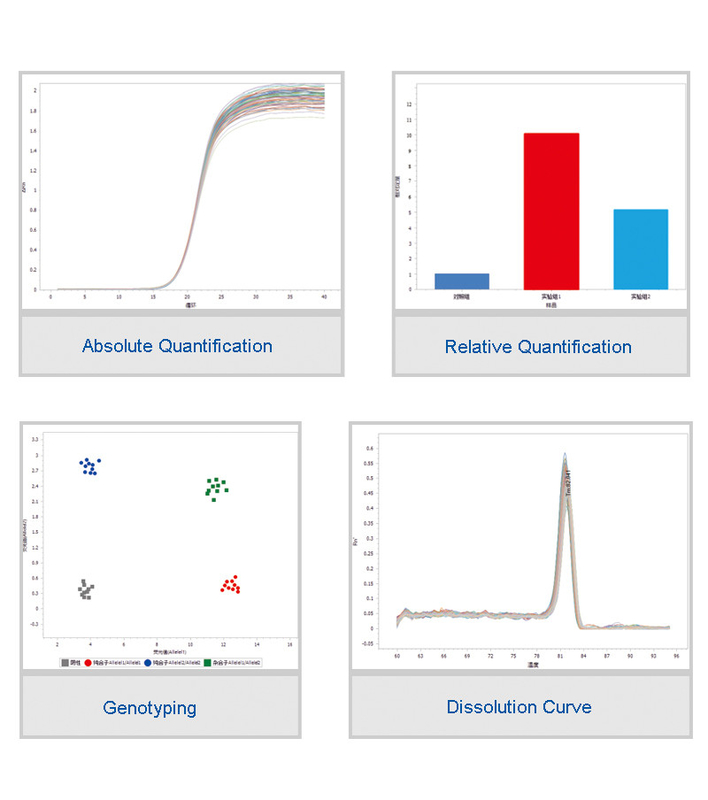

Experiments Absolute quantification,
Relative quantification,
Genotyping,
Dissolution curve



Product Performance



1. Maintenance-free and long service life LED excitation light source
2. 5-channel fluorescence detection

3. Fast reaction:Semiconductor cooling technology for rapid temperature rise and fall, saving the user's experimental time

4. Good temperature uniformity: multi-temperature zone regulation to ensure the stability of experimental results

5. Open experimental program settings to enhance the convenience of experiments

6. Comprehensive function of analysis and export, making data results more intuitive
