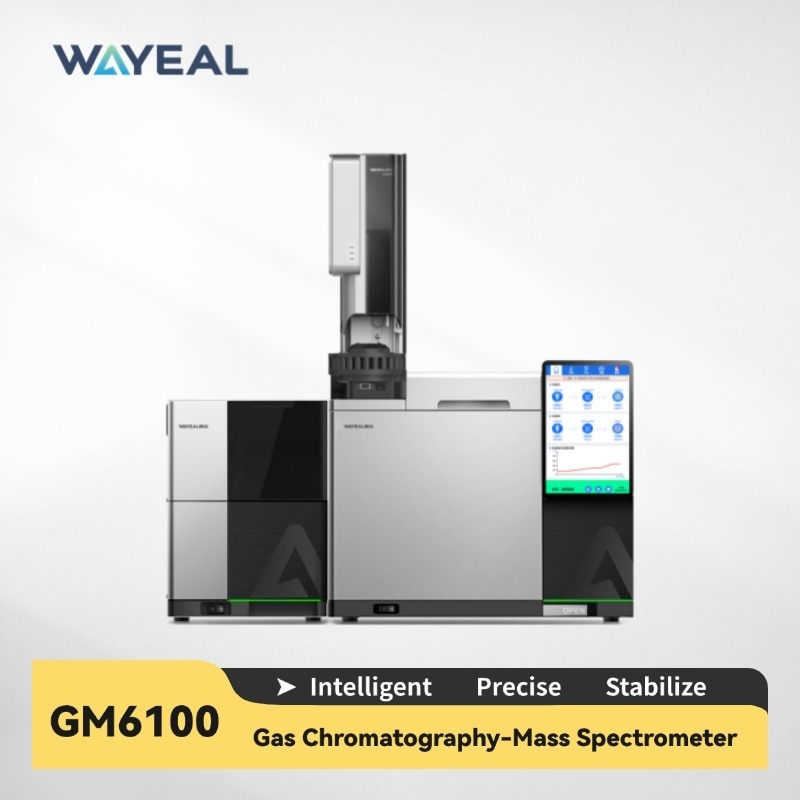

CE Certificated GM6100 Gas Chromatography-Mass Spectrometer GCMS

Basic Properties
Place of Origin: Anhui, China
Brand Name: Wayeal
Certification: CE
Model Number: GM6100
Trading Properties
Minimum Order Quantity: 1 Unit
Price: Negotiation
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 Units/ Month
Tags

gas chromatography equipment

gc ms instrumentation

gc ms spectrometer GC gas chromatography
Specifications
Product name: GM6100 GCMS Power Supply: 220V ±10%, 50Hz ±2%
Ambient Temperature: 5°C To 40°C Relative Humidity: 20% To 85%
Maximum Operating Temperature: 450°C Control Precision: 0.001psi
High Light:

gas chromatography mass spectrometer

,

gcms

,

chromatography mass spectrometer
Product Description

Technical Parameters of GM6100

Working Conditions



Power Supply

220V ±10%, 50Hz ±2%
Ambiet Temperature 5°C to 40°C
Relative Humidity 20%~85%
GC Injection Port
Injection Port Split/Splitless
Maximum Operating Temperature 450°C
Control Prexision 0.001psi
Control Range 0-100psi
Maximum Split Ratio 12500:1
Optional Carrier Gases N2, H2, He, Ar
Flow Rate Range (with N2 as carrier gas) 0-500mL/min
Oven
Temperature Range Above ambient temperature +4°C to 450°C
Programmable Temperature Ramps 32 steps/33 platforms
Maximum Heating Rate ≥75°C/min
Column Cooling Time (22°C ambient) From 450°C to 50°C in less than 5 minutes
Maximun Program Run Time 9999.99 minutes
Environmental Temperature Sensitivity Column temperature changes <0.01°C for every 1°C change in ambient temperaute
Mass Spectrometry Detector
Ion Source OFN IDL lower than 10fg
Ionization Energy 15-250eV
Ion Source Temperature 150-350°C
Transfer Line Temperature 100-350°C
Mass Range 0.5amu-1250amu
Mass Stability <0.10amu/48hrs
Acquistion Mode Scan, SIM, Scan and SIM
Ion Detector Triaxial detector equipped with high-energy dynode and a long-life, high-sensitivity electron multiplier
Maximum Scan Speed 20000amu/s
Dynamic Range 106
Fore Pump Pumping Speed ≥4m3/h
Turbo Molecular Pump Pumping Speed ≥250L/s
Autosampler
Sampler Capacity 16 positions
Solvent Bottle Positions 2
Waste Bottle Positions 1

Application of GCMS in the Environmental Analysis

Gas Chromatography-Mass Spectrometry (GC-MS) has specific applications in environmental analysis, covering atmospheric, water, soil, and biological samples, with mature detection solutions for different types of pollutants.
1. Volatile Organic Compounds (VOCs) Detection
Targets: Benzene, toluene, ethylbenzene, xylene (BTEX), formaldehyde, vinyl chloride, etc.
2. Semi-Volatile Organic Compounds (SVOCs)
Targets: Polycyclic aromatic hydrocarbons (PAHs), phthalates (plasticizers), organophosphate esters (flame retardants).
3. Organic Pollutants in Drinking Water
Targets: Trihalomethanes (THMs, e.g., chloroform), pesticides (e.g., atrazine), plasticizers (e.g., DEHP).
4. Industrial Wastewater and Surface Water
Targets: Total petroleum hydrocarbons (TPH), phenols, polychlorinated biphenyls (PCBs).
5. Persistent Organic Pollutants (POPs)
Targets: Organochlorine pesticides (DDT, hexachlorocyclohexane), PCBs, dioxins (requiring high-resolution GC-HRMS).
6. Additives in Microplastics
Targets: Antioxidants (e.g., BHT), flame retardants (e.g., TCEP).
7. Per- and Polyfluoroalkyl Substances (PFAS)
Applicability: Only some volatile PFAS (e.g., fluorotelomer alcohols) can be detected by GC-MS.
