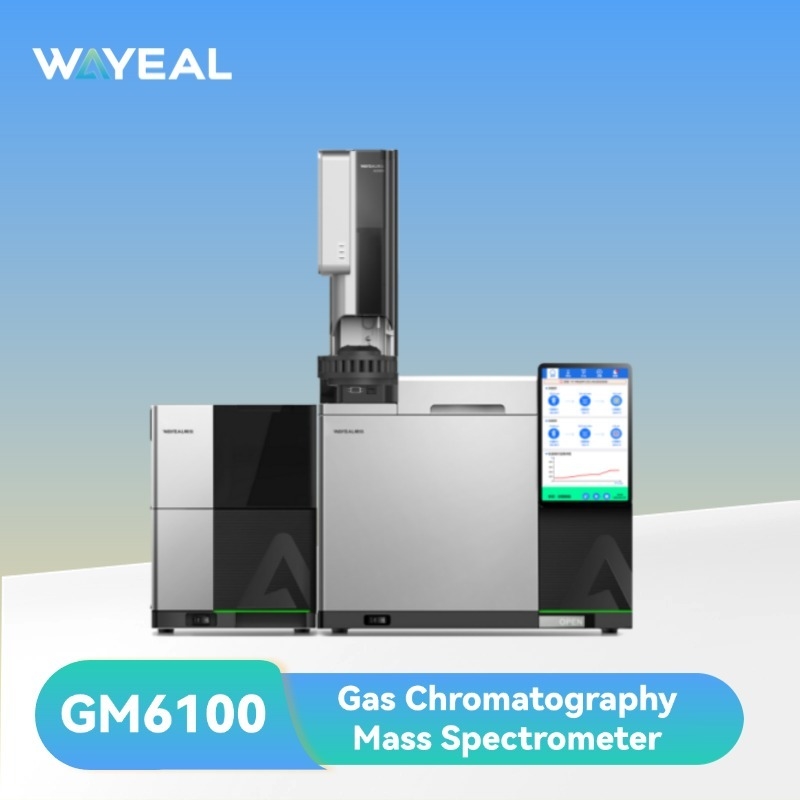

High Sensitivity Gas Chromatograph Mass Spectrometer for Lab Analysis

Name: High Sensitivity Gas Chromatograph Mass Spectrometer for Lab Analysis
Brand: Anhui Wanyi Science and Technology Co., Ltd.
SKU: GM6100
Price: 15,400.00 USD
Availability: InStock

Basic Properties

Place of Origin: Anhui, China

Brand Name: Wayeal

Certification: CE

Model Number: GM6100

Trading Properties

Minimum Order Quantity: 1 Unit

Price: Negotiation

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 30 Units/ Month

gas chromatography equipment

gc ms instrumentation

gc ms spectrometer GC gas chromatography

Specifications

Product name:	GM6100 Gas Chromatography Mass Spectrometer	IOn Source:	EI
Ionization Energy:	15-250eV	Ion Source Temperature:	150-350℃
Mass Range:	0.5amu-1250 Amu	Mass Stability:	< 0.10amu/48hrs
High Light:	gas chromatography mass spectrometer , gcms instrument , chromatography mass spectrometer

Product Description

Technical Parameters of GM6100 GCMS

Working Conditions
Power Supply	220V ±10%, 50Hz ±2%
Ambiet Temperature	5°C to 40°C
Relative Humidity	20%~85%
GC Injection Port
Injection Port	Split/Splitless
Maximum Operating Temperature	450°C
Control Prexision	0.001psi
Control Range	0-100psi
Maximum Split Ratio	12500:1
Optional Carrier Gases	N2, H2, He, Ar
Flow Rate Range (with N2 as carrier gas)	0-500mL/min
Oven
Temperature Range	Above ambient temperature +4°C to 450°C
Programmable Temperature Ramps	32 steps/33 platforms
Maximum Heating Rate	≥75°C/min
Column Cooling Time (22°C ambient)	From 450°C to 50°C in less than 5 minutes
Maximun Program Run Time	9999.99 minutes
Environmental Temperature Sensitivity	Column temperature changes <0.01°C for every 1°C change in ambient temperaute
Mass Spectrometry Detector
Ion Source	OFN IDL lower than 10fg
Ionization Energy	15-250eV
Ion Source Temperature	150-350°C
Transfer Line Temperature	100-350°C
Mass Range	0.5amu-1250amu
Mass Stability	<0.10amu/48hrs
Acquistion Mode	Scan, SIM, Scan and SIM
Ion Detector	Triaxial detector equipped with high-energy dynode and a long-life, high-sensitivity electron multiplier
Maximum Scan Speed	20000amu/s
Dynamic Range	10⁶
Fore Pump Pumping Speed	≥4m³/h
Turbo Molecular Pump Pumping Speed	≥250L/s
Autosampler
Sampler Capacity	16 positions
Solvent Bottle Positions	2
Waste Bottle Positions	1

Applications of GCMS in the Industry of Petrochemical and Energy Industries

GC-MS, with its high separation capability, exceptional sensitivity, and precise qualitative/quantitative analysis, is widely used in the petrochemical and energy industries for applications such as petroleum composition analysis, fuel quality control, process monitoring, and pollutant detection.

1. Petroleum and Petrochemical Product Composition Analysis

Hydrocarbon composition analysis (alkanes, alkenes, aromatics)
Sulfur compounds (mercaptans, thiophenes)
Oxygen-containing compounds (alcohols, ketones)

2. Fuel Quality Testing

Gasoline/aviation fuel (benzene, toluene, ethylbenzene, xylene—BTEX)
Diesel (polycyclic aromatic hydrocarbons—PAHs, cetane number-related components)
Biofuels (fatty acid methyl esters—FAME)

3. Pollutant Detection in the Energy Industry
