Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
CE
Model Number:
GT-96

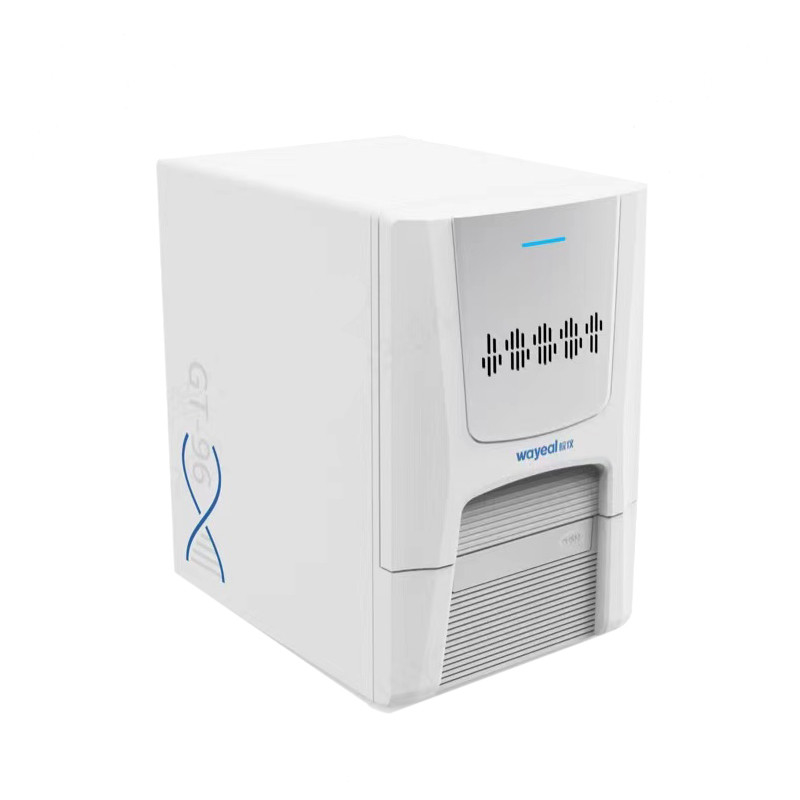

Product Introduction
In conventional PCR, the amplified DNA product, or amplicon, is detected in an end-point analysis. In real-time PCR, the accumulation of amplification product is measured as the reaction progresses, in real time, with product quantification after each cycle. The GT-96 Real-Time Fluorescence PCR instrument is a multiplexed fluorescence PCR analysis technology platform. The maximum throughput of the product is up to 96 samples, enabling five-channel fluorescence detection.
Product Parameters
| Blood Chemistry Analyzer 96 Wells Fluorescent Quantitative Detection ystem PCR Analyzer | |
| Product Size | 470*350*530mm |
| Power Supply | 100-220VAC, 50/60Hz, 1000VA |
| Average Heating Rate | ≥3.0℃/s |
| Average Cooling Rate | ≥2.0℃/s |
| Temperature Control Accuracy | ±0.1℃ |
| Temperature Accuracy | ±0.1℃ |
| Temperature Uniformity | ±0.1℃ |
| Temperature Range | 4℃-100℃ |
| Light Source | Light Source |
| Repeatability of Fluorescence Intensity | Repeatability of Fluorescence Intensity |
| Uniformity of Fluorescence Intensity | CV≤5% |
| Linearity of Fluorescence Intensity | |r|≥0.990 |
| Detection Channels | 5 Channels |
| Dyes | F1:FAM,SYBR Green
F2:HEX,VIC
F3:TAMRA,CY3
F4:ROX,TEXAS Red
F5:CY5
|
| Reaction System | 10-100μL |
| Kinetics Scope | 1-1010 copies |
| Sample Linearity | |r|≥0.990 |
| Quantitative Repeatability | CV≤2% |
| Quantification Error | ±2% |
| Stability | CV≤5% |
| Experiments | Absolute quantification,
Relative quantification,
Genotyping,
Dissolution curve
|

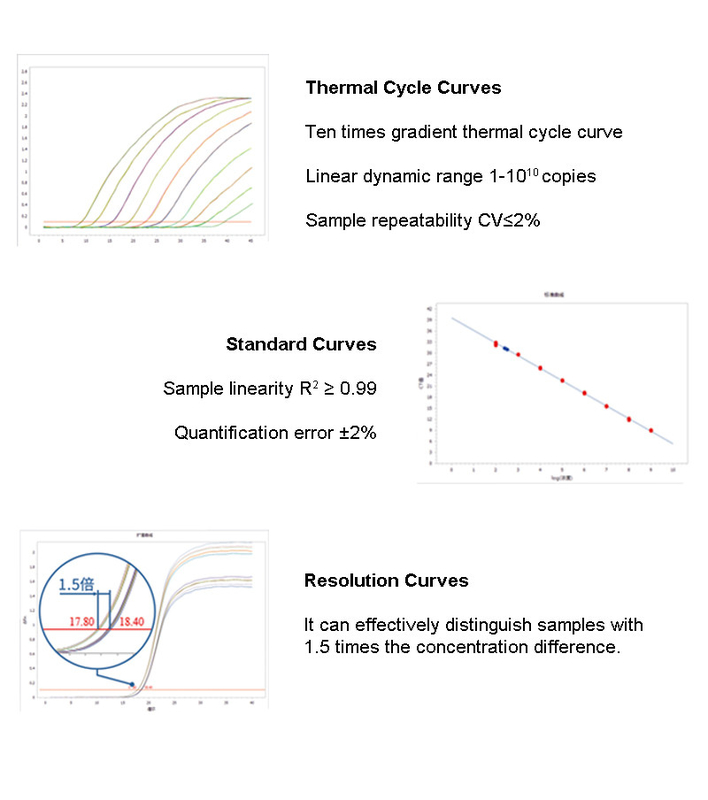

Product Performance
Optical System
