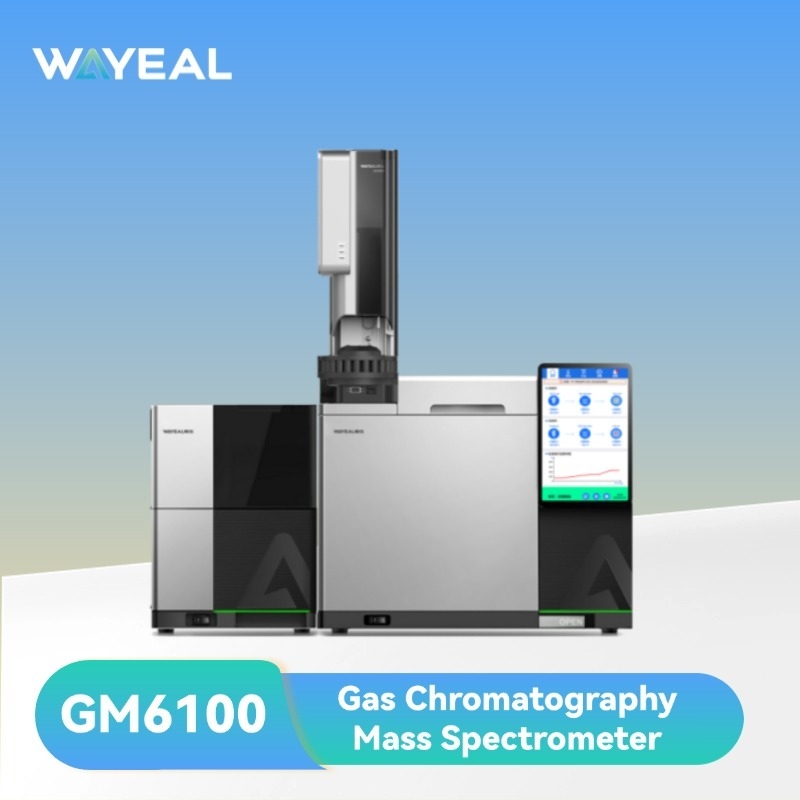

10.1inch Touch Screen GC-MS Gas Chromatography Mass Spectrometer with EI Ion Source
| Product name: | GM6100 Gas Chromatography Mass Spectrometer | Control Range: | 0–100 Psi |
| Optional Carrier Gases: | N₂, H₂, He, Ar | Maximum heating rate: | ≥75°C/min |
| Ionization energy: | 15-250eV | Mass range: | 0.5amu-1250 Amu |
| High Light: | gas chromatography mass spectrometer,gcms chromatography,chromatography mass spectrometer |
||
Technical Specifications of GM6100 Gas Chromatography Mass Spectrometer
| Working Conditions | |
| Power Supply | 220V ±10%, 50Hz ±2% |
| Ambiet Temperature | 5°C to 40°C |
| Relative Humidity | 20%~85% |
| GC Injection Port | |
| Injection Port | Split/Splitless |
| Maximum Operating Temperature | 450°C |
| Control Prexision | 0.001psi |
| Control Range | 0-100psi |
| Maximum Split Ratio | 12500:1 |
| Optional Carrier Gases | N2, H2, He, Ar |
| Flow Rate Range (with N2 as carrier gas) | 0-500mL/min |
| Oven | |
| Temperature Range | Above ambient temperature +4°C to 450°C |
| Programmable Temperature Ramps | 32 steps/33 platforms |
| Maximum Heating Rate | ≥75°C/min |
| Column Cooling Time (22°C ambient) | From 450°C to 50°C in less than 5 minutes |
| Maximun Program Run Time | 9999.99 minutes |
| Environmental Temperature Sensitivity | Column temperature changes <0.01°C for every 1°C change in ambient temperaute |
| Mass Spectrometry Detector | |
| Ion Source | OFN IDL lower than 10fg |
| Ionization Energy | 15-250eV |
| Ion Source Temperature | 150-350°C |
| Transfer Line Temperature | 100-350°C |
| Mass Range | 0.5amu-1250amu |
| Mass Stability | <0.10amu/48hrs |
| Acquistion Mode | Scan, SIM, Scan and SIM |
| Ion Detector | Triaxial detector equipped with high-energy dynode and a long-life, high-sensitivity electron multiplier |
| Maximum Scan Speed | 20000amu/s |
| Dynamic Range | 106 |
| Fore Pump Pumping Speed | ≥4m3/h |
| Turbo Molecular Pump Pumping Speed | ≥250L/s |
| Autosampler | |
| Sampler Capacity | 16 positions |
| Solvent Bottle Positions | 2 |
| Waste Bottle Positions | 1 |
Application of GCMS in the Pharmaceutical and Life Sciences Fields
Gas Chromatography-Mass Spectrometry (GC-MS) plays an indispensable role in the pharmaceutical and life sciences fields. Its high sensitivity, high specificity, and multi-component simultaneous analysis capabilities make it a critical tool from drug development to clinical diagnostics.
1. Drug Impurity Analysis
Applications: Detection of organic volatile impurities (per ICH Q3C guidelines), degradation products, and synthetic byproducts in APIs and formulations.
Examples:
Analysis of nitrosamine genotoxic impurities (e.g., NDMA, with detection limits as low as 0.03 ppm) in anticancer drugs.
Residual solvent testing (e.g., dichloromethane) in penicillin.
2. Metabolomics Analysis
Sample Types: Serum, urine
Examples: Small-molecule metabolites (organic acids, amino acids, fatty acids).
