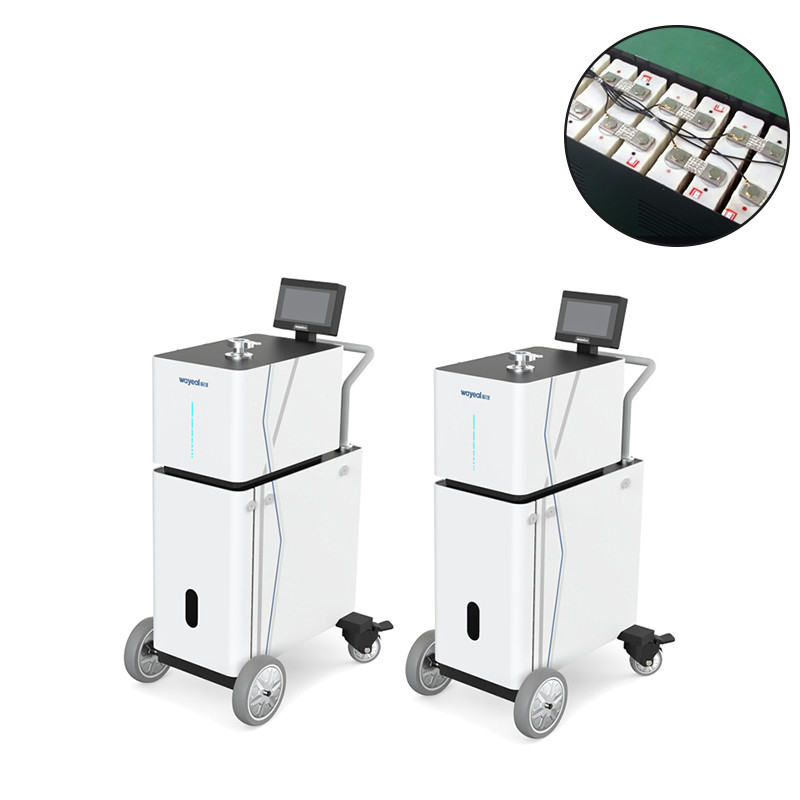

Wayeal SFJ-16D Integrated Helium Leak Detector Machine Price With Trolly
Introduction of Helium Leak Detector
A helium leak detector is an instrument commonly used to detect and locate small leaks. A leak is detected through the helium leak test by charging helium gas to the tested work and passing the leaked gas through the mass analyzer tube to detect helium only.
The leaked helium gas is ionized by the electron beam from the filament within the ion chamber of the analyzing tube. The ions are accelerated and move out through a slit and then pass through the magnetic field generated by the analyzer. Since the circular trajectories of the ions depend on their mass, the collector can catch only the helium ions and detect helium.
Parameters of Helium Leak Detector
| Wayeal SFJ-16D Integrated Helium Leak Detector Machine Price With Trolly | ||
|
Performance Indicators |
Model | SFJ-16D |
| Minimum detectable leakage rate (Pa. m3/s)/ Vacuum Mode | 5.0*10-13 | |
| Minimum Detectable Leakage Rate (Pa.m3/s)/Sniffer Mode | 2.5*10-9 | |
| Maximum Detectable Leakage Rate (Pa) | 1800 | |
| Response Time (s) | <1 | |
| Start-up Time (min) | ≤ 95s | |
| Detectable Quality | 2, 3, 4 (H2, He-3, He-4) | |
| Man-machine Interface | 7" color LCD Touch Screen | |
| Ion Source | 2pcs, Iridium-coated Yttrium Oxide, Automatic Switching | |
|
Basic Configuration |
Pre-stage Pumps | Optional |
| I/O Input/ Output Interface | 8 Inputs, 8 Outputs | |
| Communication Interface | RS232/485, LAN | |
| MES Interface | Standard | |
| (Physical Size )W*D*H, mm | 755*467*1180 | |
| Specifications of Leak Detection Hole | DN25KF | |
| Power Supply | AC220V, 50Hz/60Hz | |
| Operating Temperature | 0~40°C | |
| Display Language | Chinese/English | |
| Leakage Rate Display | Figure, Bar Chat, Curve Chat | |
Performance of Helium Leak Detector
1. Rapid and accurate detection of helium and hydrogen by helium injection mode, sniffer mode and others.
2. Automatic evacuation pressure and time setting, high leak detection efficiency;
3. Suitable for industrial leak detection in various high requirements and hash environment.
4. Wireless remote-control function (optional);
Applications of Helium Leak Detector
It is widely used in production line industries such as refrigeration and air conditioning, automotive parts, carbonated beverage containers food packages and aerosol packaging, as well as in the manufacture of steam products, gas bottles, fire extinguishers, tire valves, and numerous other products including all vacuum systems.
Leak Detection Methods
Negative Pressure Method
Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)
Vacuum Chamber Helium Leak Detection and Recovery System (external filling)
Sniffer Method
