Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
ISO90001, CE
Model Number:
SFJ-16C

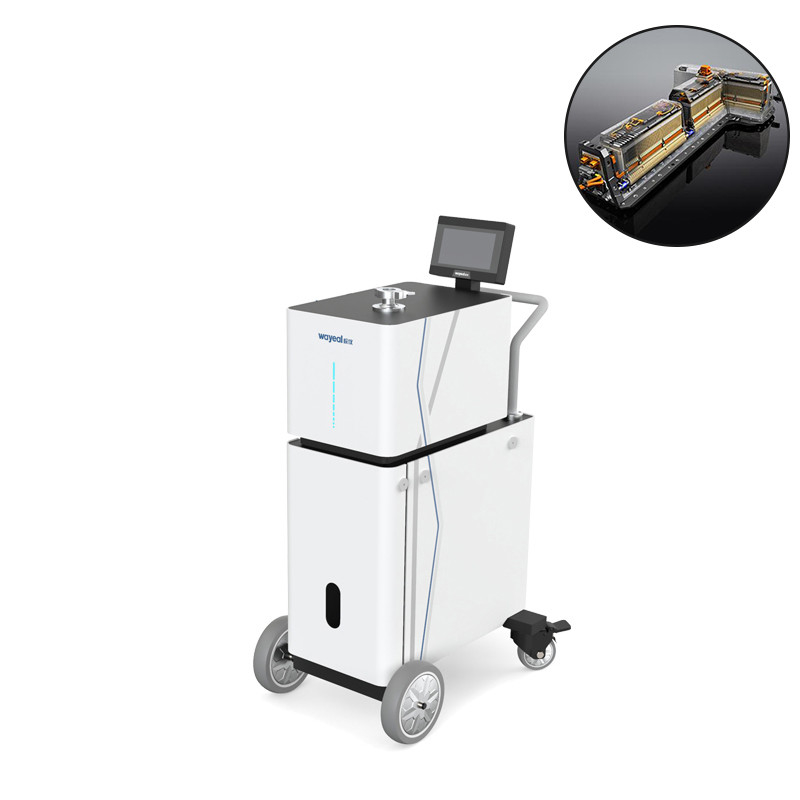

Wayeal SFJ-16C Modular Vacuum Helium Leak Detection Equipment for Clear Energy Industry
Introduction of Helium Leak Detector
A helium leak detector is an instrument commonly used to detect and locate small leaks. It typically uses a vacuum chamber in which a sealed container filled with helium is placed. Helium leaks out of the container, and the rate of the leak is detected by a mass spectrometer.
Helium leak detectors is used in production line industries such as refrigeration and air conditioning, automotive parts, carbonated beverage containers food packages and aerosol packaging, as well as in the manufacture of steam products, gas bottles, fire extinguishers, tire valves, and numerous other products including all vacuum systems.
Parameters of Helium Leak Detector
| Wayeal SFJ-16C Modular Vacuum Helium Leak Detection Equipment for Clear Energy Industry | ||
|
Performance Indicators |
Model | SFJ-16C |
| Minimum detectable leakage rate (Pa. m3/s)/ Vacuum Mode | 5.0*10-13 | |
| Minimum Detectable Leakage Rate (Pa.m3/s)/Sniffer Mode | 2.5*10-9 | |
| Maximum Detectable Leakage Rate (Pa) | 1800 | |
| Response Time (s) | <1 | |
| Start-up Time (min) | ≤ 95s | |
| Detectable Quality | 2, 3, 4 (H2, He-3, He-4) | |
| Man-machine Interface | 7" color LCD Touch Screen | |
| Ion Source | 2pcs, Iridium-coated Yttrium Oxide, Automatic Switching | |
|
Basic Configuration |
Pre-stage Pumps | Optional |
| I/O Input/ Output Interface | 8 Inputs, 8 Outputs | |
| Communication Interface | RS232/485, LAN | |
| MES Interface | Standard | |
| (Physical Size )W*D*H, mm | 755*467*1180 | |
| Specifications of Leak Detection Hole | DN25KF | |
| Power Supply | AC220V, 50HZ/60HZ | |
| Operating Temperature | 0~40°C | |
| Display Language | Chinese/English | |
| Leakage Rate Display | Figure, Bar Chat, Curve Chat | |
Performance of Helium Leak Detector
1. Rapid and accurate detection of helium and hydrogen by helium injection mode, sniffer mode and others.
2. Automatic evacuation pressure and time setting, high leak detection efficiency;
3. Suitable for industrial leak detection in various high requirements and hash environment.
4. Wireless remote-control function (optional);
Application of Helium Leak Detector
It is widely used in production line industries such as refrigeration and air conditioning, automotive parts, carbonated beverage containers food packages and aerosol packaging, as well as in the manufacture of steam products, gas bottles, fire extinguishers, tire valves, and numerous other products including all vacuum systems.
Leak Detection Methods
Negative Pressure Method
Vacuum Chamber Helium Leak Detection and Recovery System (external filling)
Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)
Sniffer Method
