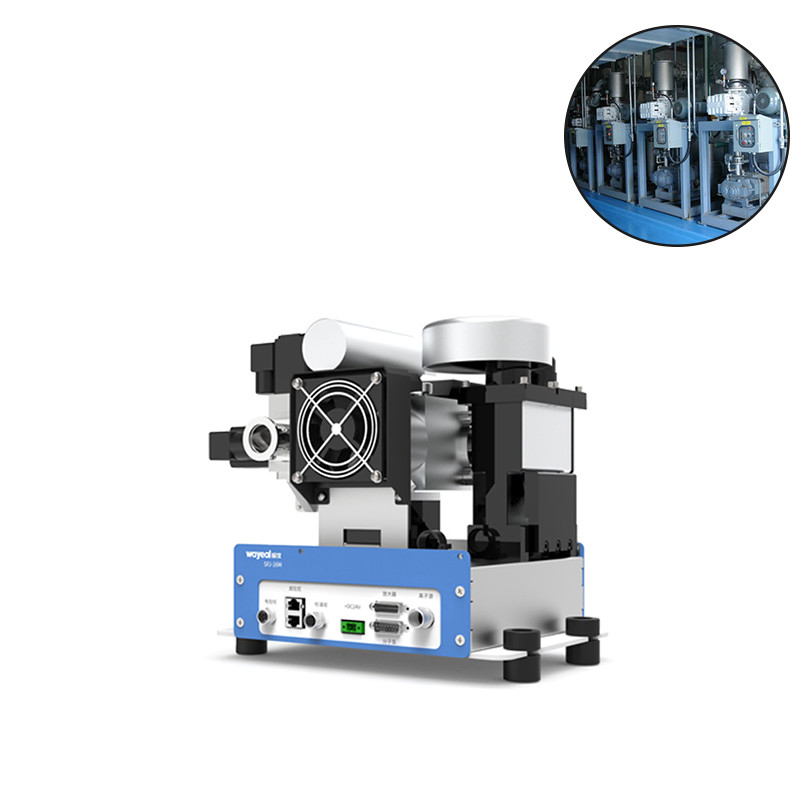

Touch Screen Helium Mass Spectrometer Leak Detector For Automotive Industry

Basic Properties
Place of Origin: Anhui, China
Brand Name: Wayeal
Certification: ISO90001, CE
Model Number: SFJ-16M+
Trading Properties
Minimum Order Quantity: 1 Piece
Price: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200Pieces Per Month
Tags

helium leak detector machine

helium mass spectrometer leak detector

vacuum helium leak detector
Specifications
Product Name: Helium Leak Detector For Automotive Industry Working Power: DC24V
Response Time (s): <1s Manual Interface: 5" Color LCD Touch Screen
Start-up Time (min): ≤ 1.58min Application Industry: Automotive Industry
High Light:

DC24V Mass Spectrometer Leak Detector

,

DC24V Helium Mass Spectrometer Leak Detector

,

LCD Touch Screen Helium Leak Detector
Product Description

Leak Tester Equipment Helium Mass Spectrometer Leak Detector for Automotive Industry

Introduction of Helium Leak Detector

A helium leak detector, also known as a Mass Spectrometer Leak Detector (MSLD), is used to locate and measure the size of leaks into or out of a system or containing device. Helium is the best choice of tracer gas to find leaks for a number of reasons. It is non-toxic, inert, non-condensable, non-flammable and not normally present in the atmosphere at more than trace amounts (5 ppm). Due to its small atomic size, helium passes easily through leaks.

Parameters of Helium Leak Detector

Leak Tester Equipment Helium Mass Spectrometer Leak Detector for Automotive Industry

Performance Indicators

 Model SFJ-16M+

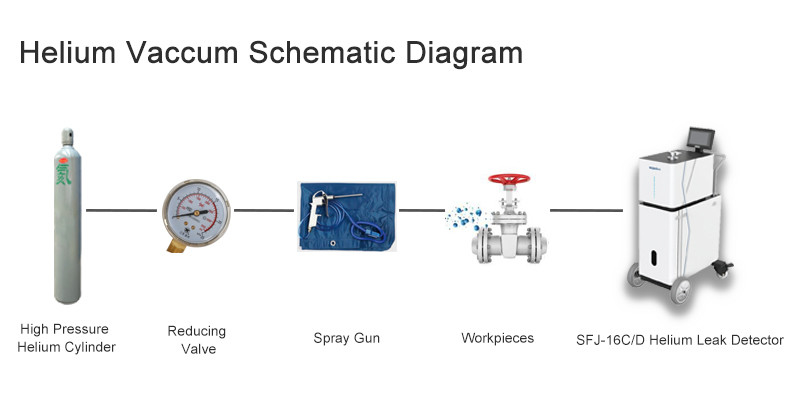

Minimum detectable leakage rate (Pa. m3/s)/ Vacuum Mode 5.0*10-13

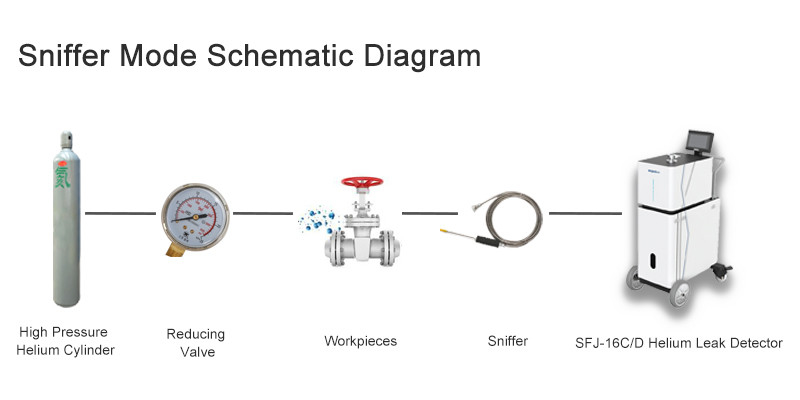

Minimum Detectable Leakage Rate (Pa.m3/s)/Sniffer Mode 3.0*10-9
Maximum Detectable Leakage Rate (Pa) 1800
Response Time (s) <1
Start-up Time (min) ≤ 95s
Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Man-machine Interface 5" color LCD Touch Screen
Ion Source 2pcs, Iridium-coated Yttrium Oxide, Automatic Switching

Basic Configuration

 Pre-stage Pumps Optional
I/O Input/ Output Interface 8 Inputs, 8 Outputs
Communication Interface RS232/485, LAN
MES Interface Standard
(Physical Size )W*D*H, mm 400*335*310
Specifications of Leak Detection Hole DN25KF
Power Supply DC24V
Operating Temperature 0~40°C
Display Language Chinese/English
Leakage Rate Display Figure, Bar Chat, Curve Chat

Features of Helium Leak Detector

1. Modular struture design
2. Automatic evacuation pressure and time setting, high leak detection efficiency;
3. Intergrated system, it is widely used in various automated assembly lines
4. Wireless remote-control function (optional);

Applications Helium Leak Detector

New energy, automitive industry, refrigeration industry, Lithium battery industry and etc.
