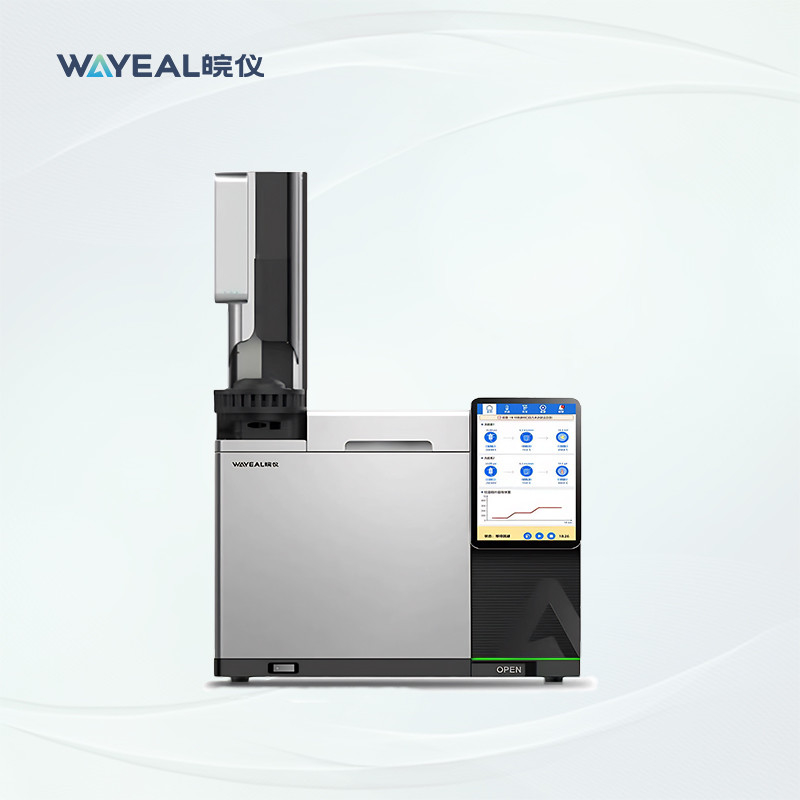

FID ECD Gas Chromatography Analyzer Liquid Injection Laboratory Analysis

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number GC6000
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 30 days
Payment Terms L/C, T/T
Supply Ability 15 Pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Gas Chromatgraphy Analyzer Supply Voltage 220V±10%
Temperature 18-28℃ Detector ECD
Humidity 40-70% Qualitative Repeatability ≤0.1%
High Light

Liquid Injection Gas Chromatography Analyzer

,

FID ECD Gas Chromatography Analyzer

,

Lab Analysis Gas Chromatography Analyzer

Leave a Message
Product Description

450 ℃Maximum operating temperatureLiquid Injection Laboratory Analysis FID ECD Gas Chromatography Analyzer





Product Introduction



The GC6000 series gas chromatographs achieve high automation, high efficiency and high precision. A wide range of detectors (FID, FPD, ECD, TCD, RID) are available as options. Three independent circuits, a gas system and three signal outputs are available simultaneously.



Product Parameter



Liquid Injection Laboratory Analysis FID ECD Gas Chromatography Analyzer
Laboratory Environment
Supply Voltage 220V±10%
Temperature 18-28℃
Humidity 40-70%
Whole Machine Parameters
Qualitative Repeatability ≤0.1%
Quantitative Repeatability ≤1.5%
Baseline Noise 0.01pA
Baseline Drift 0.1pA/30min
Inlet Port
Maximum Operating Temperature 400℃
Flow Control Mode EFC
Control Accuracy 0.001psi
Maximum Shunt Ratio 999:1
Optional Carrier Gas Types N2, H2, He, Ar
Sampler
Linearity 0.999
Cross-contamination 0.01%
Number of Injection Bits 16 bits
Number of Reagent Bits 3 bits
Column Oven
Above Room Temperature +4℃- 450℃
Programmed Temperature Rise Rate 40℃/min
Program temperature rise repeatability <0.5%
Minimum Adjustment Amount ≦0.01℃
Temperature Control Accuracy ±0.05℃
Maximum run time 999.9min
Detector (hydrogen flame (FID) detector)
Maximum operating temperature 450 ℃
Minimum detection limit 2.5pg / s
Linear range ≥ 106


Software



1. Self-developed, with software copyright
2. Workstation interface is simple, intuitive, convenient operation process, with a comprehensive audit trail and rights management functions
3. Graphical full counter-control interface, providing suitable real-time analysis of the parameters and analysis results, online modification and acquisition of the working parameters of the components, automatic and rapid data acquisition and post-processing, with instrument-related data and operating conditions traceability function, convenient troubleshooting.
4. Realize the effective integration and control of system components, provide chromatographic detectors, autosampler and other upgrade components for the company's products can be seamlessly added



Product Application



Application of gas chromatography in health inspection

Air, polycyclic aromatic hydrocarbons, benzene, toluene, benzo(a)ratio, etc.
Residual organochlorine and organophosphorus pesticides in crops, etc.
Food additives such as benzoic acid.
Analysis of biological materials such as body fluids and tissues e.g. amino acids, fatty acids, vitamins, etc.
