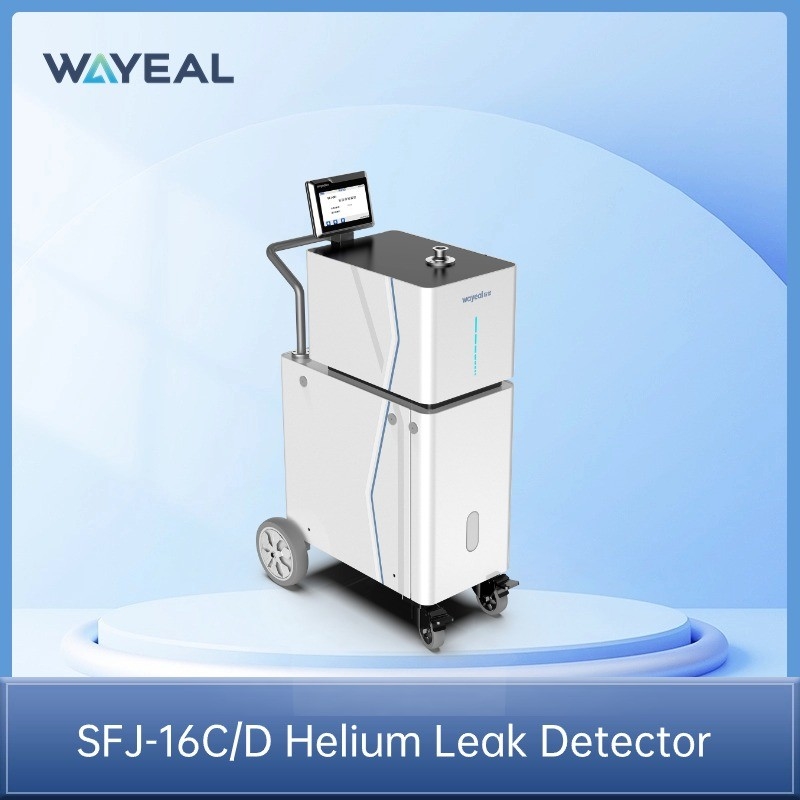

Wayeal SFJ-16C Six Generation of High Sensitivity Helium Leak Detector Machine

Basic Properties
Place of Origin: Anhui, China
Brand Name: Wayeal
Certification: ISO, CE
Model Number: SFJ-16C
Trading Properties
Minimum Order Quantity: 1
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 200 Pieces Per Month
Tags

helium leak detector machine

helium mass spectrometer leak detector

vacuum helium leak detector
Specifications
Product Name: Wayeal SFJ-16C Helium Leak Detector Product Size: 475*714*1168mm
Power Supply: AC220V, 50Hz/60Hz Max Allowable Leak Detection Pressure (Pa): 1800
User Interface: 7inch Color Touch Screen Leak Detection Port: DN25KF
High Light:

High Sensitivity Helium Leak Detector

,

Helium Leak Detector Machine
Product Description

Wayeal SFJ-16C Six Generation of High Sensitivity Helium Leak Detector Machine

Introduction of Helium Leak Detector

Helium leak testing is an indispensable procedure that plays a critical role in various industries, from aerospace and automotive to medical devices and energy sectors. Helium leak detectors are instruments used to detect and locate small leaks in vacuum systems. A typical helium leak detector consists of several components, including a vacuum chamber, a helium source, a tracer gas inlet, an ion chamber, an analyzer cell, and a vacuum pump.

Parameters of Helium Leak Detector

Wayeal SFJ-16C Six Generation of High Sensitivity Helium Leak Detector Machine

Product Name

Helium Leak Detector
Detection Method Helium Mass Spectrometer
Leak Detection Port DN25KF
Leak Rate Display Numbers, Bar Charts, Graphs
Response Time(s) <1s
User Interface 7inch Color Touch Screen
Operating temperature 0~40°C
Max Allowable Leak Detection Pressure (Pa) 1800
Communication Interface RS232/485, LAN
Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 5.0*10 -13 Pa.m3/s
Mini Leak Detection Rate(Pa.m3/s)/Vacuum Mode 2.5*10-9 Pa.m3/s
Startup Time (min) ≤2
Diamension 475*714*1168mm
Power Supply AC220V, 50Hz/60Hz
Language Chinese/English

Optional Accessories of Helium Leak Detector

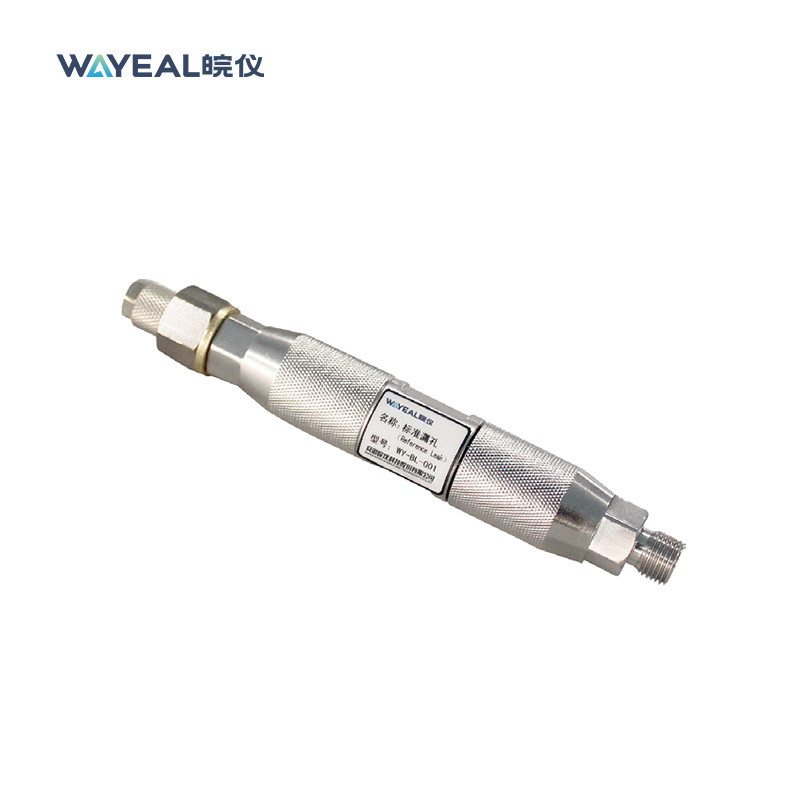

Spray probe, wireless remote control, 20 micron inlet filter, calibration leak, customized tooling, sniffer, leak detection chamber, helium pressure chamber, vaccum pump oil

Applications of Helium Leak Detector

Helium leak detectors are widely used in various industries, including aerospace, automotive, and semiconductor manufacturing. They are essential tools for ensuring the safety and reliability of various systems, and they can help prevent costly downtime and repairs.

Methods of Helium Leak Detection

Wayeal SFJ-16C Six Generation of High Sensitivity Helium Leak Detector Machine 0

Wayeal SFJ-16C Six Generation of High Sensitivity Helium Leak Detector Machine 1

Wayeal SFJ-16C Six Generation of High Sensitivity Helium Leak Detector Machine 2
