CFR 21 PART 11 Compatible High-Precision Ion Chromatography Analyzer

CFR 21 PART 11 Compatible High-Precision Ion Chromatography Analyzer

Lab waters ion chromatography

waters ion chromatography Instrumentation

instrumentation of ion exchange chromatography

Place of Origin:

Anhui, China

Brand Name:

Wayeal

Certification:

ISO, CE

Model Number:

IC6200

Contact Us
Request A Quote
Product Details
Product Name:
Ion Chromatography Instrument
Max Pressure:
42MPa
Flow Rate Range:
0.001~12.000mL/min
Qualitative Repeatability:
≤0.05%
Quantitative Repeatability:
≤0.2%
Flow Stability:
≤±0.1%
Highlight:

Lab waters ion chromatography

,

waters ion chromatography Instrumentation

,

instrumentation of ion exchange chromatography

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Wooden Case
Delivery Time
30 days
Payment Terms
L/C, T/T
Supply Ability
30 Pieces Per Month
Product Description

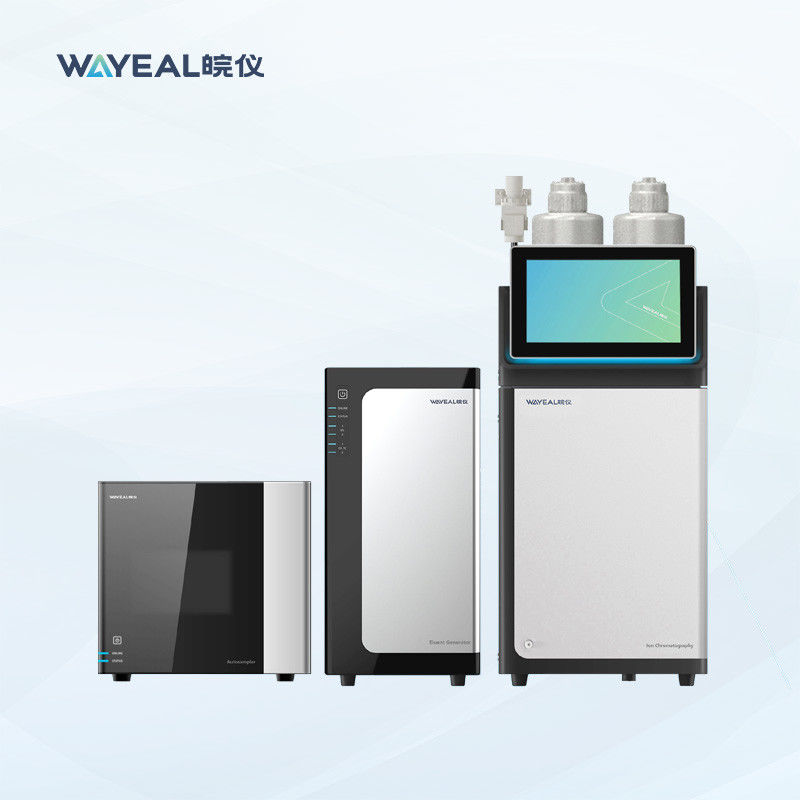

Wayeal Laboratory Analytical Ion Chromatography Instrument With Autosampler

Introduction of Ion Chromatography Instrument

Ion chromatography instrument is a type of high performance liquid chromatograph, so it is also known as high performance ion chromatography (HPIC) or modern ion chromatography. IC systems can analyze particles such as anions, cations, organic salts, and proteins. They are used in environmental, manufacturing, food, pharmaceutical, and chemical industries.

Parameters of Ion Chromatography Instrument

System Parameter



Qualititative Repeatability

≤0.05%

Quantitative Repeatability

≤0.2%

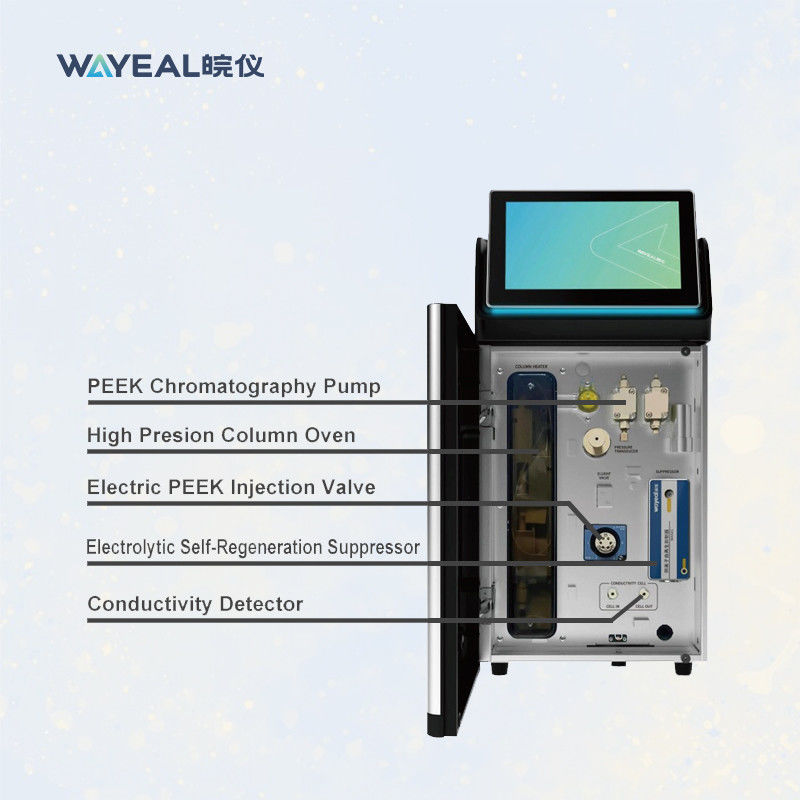

Pump System



Flow Rate (Full PEEK Pump)

(0.001–12.000) mL/min

Pump Head Pressure Resistance

(0–42) MPa

Flow Rate Set Error

≤ ±0.1%

Flow Rate Stability

≤ ±0.1%

Pressure Display Resolution

0.01 MPa

Suppressor



Suppressor Type

Electrolytic self-regenerating membrane suppressor

Constant Current Range

0–500 mA, adjustable in increments of 1 mA

Column Oven



Temperature Range

Ambient +5°C to 85°C

Temperature Stability

±0.01°C

Compatibility

Compatible with 250 mm and 150 mm length columns

AS2800 Series Autosampler



Quantitative Repeatability

< 0.5% RSD (full-loop injection)

Sample Positions

48 positions / 11 positions

Wash Ports

2 ports (fine wash and coarse wash)

Operating Temperature

10–40°C

Vial Types

5mL/ 100mL

Injection Volume

10 µL – 4000 µL (depending on sample loop size)

Single Injection Cycle Time

Approx. 20s (depending on wash time and injection volume)

Injection Mode

Full-loop injection

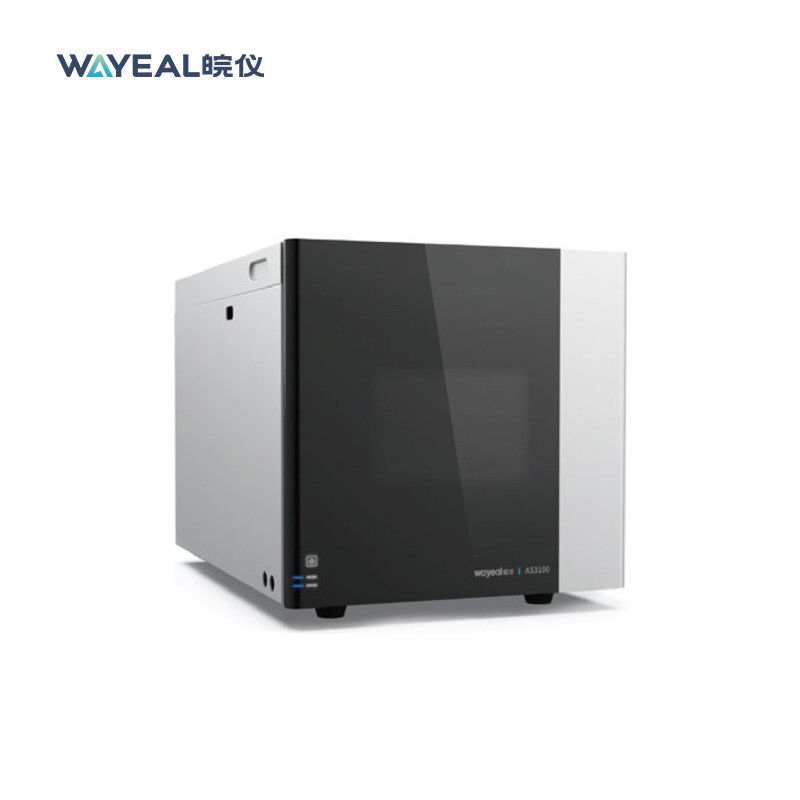

AS3110 Series Autosampler



Sample Capacity

64/120 positions

Cooling Temperature Range

4–30°C

Repeatability

< 0.3% RSD (full-loop injection, injection volume > 5 µL)

Syringe Specifications

Standard: 500 µL; Optional: 250 µL, 1000 µL, 2500 µL

Sample Loop Specifications

Standard: 100 µL; Optional: 25 µL, 50 µL, 200 µL

Carryover (Cross Contamination)

< 0.01%

Performance of Ion Chromatography Instrument

1. Highly accurate and efficient temperature-controlled conductivity cell ensures the stability and high sensitivity of the assay, as well as the stability of the instrument under any laboratory conditions.

2. Simple workstation interface, easy to use processes, and full of detailed management.

3. Automatic and intelligent functions such as bottle shortage alarm, liquid leakage alarm and door opening/closing sensor light to ensure reliable operation of the equipment.

4. The full system thermostat and temperature compensation function allows you to carry out your analytical work without the distraction of controlling the temperature conditions in the laboratory and without the need for air conditioning.

5.Tandem dual plunger mode with electronic pulsation suppression technology provides high precision, low pulsation and low drift drenching solutions.
