Wayeal Helium Leak Tester Gas Chromatograph Mass Spectrometer Machine

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO90001, CE
Model Number SFJ-211
Minimum Order Quantity 1 Piece
Price Negotiation
Packaging Details 1 Piece Per Wooden Case
Delivery Time 15 Days
Payment Terms L/C, T/T, Western Union
Supply Ability 200 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Helium Mass Spectrometer Leak Detector Working Power 240W
Overall Size 645 * 678 * 965mm Detectable Quality 2,3,4(H2 , He3, He4)
Pakage Box And Customized OEM Accepted
High Light

helium leak tester Mass Spectrometer

,

Wayeal helium leak tester

,

Wayeal gas chromatograph mass spectrometer

Leave a Message
Product Description

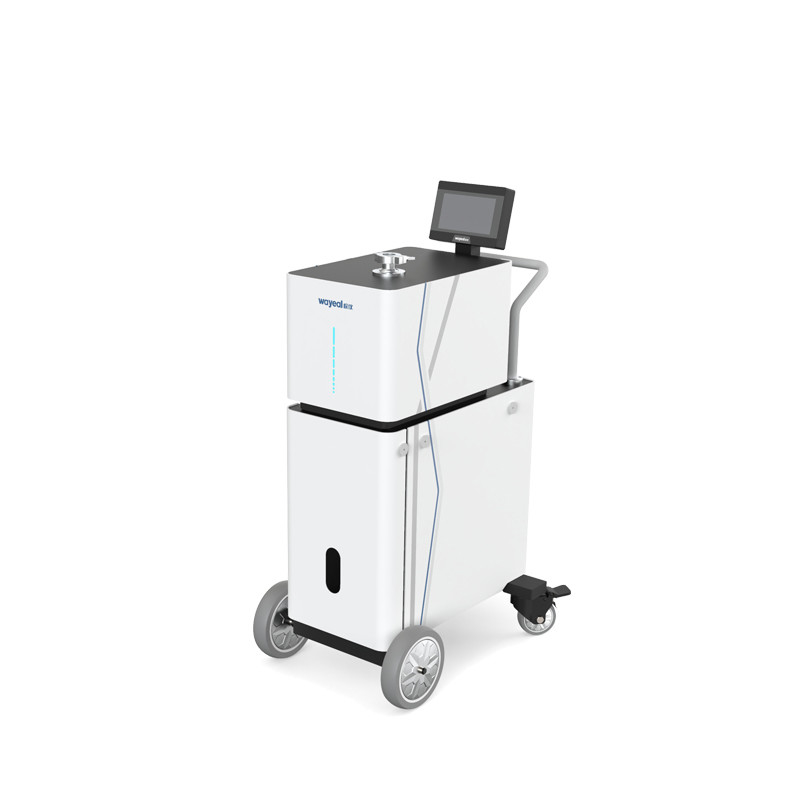

Helium Mass Spectrometer Leak Detector Machine for Semiconductor Electronics Industry





Product Description



Helium mass spectrometry leak detector is an instrument for rapid localization and quantitative measurement of leaks in sealed containers. The helium mass spectrometry leak detection method with the characteristics of high detection sensitivity, high speed and a wide range of applications.



Product Parameters



SFJ-211 Helium Mass Spectrometer Leak Detector















Performance Indicators

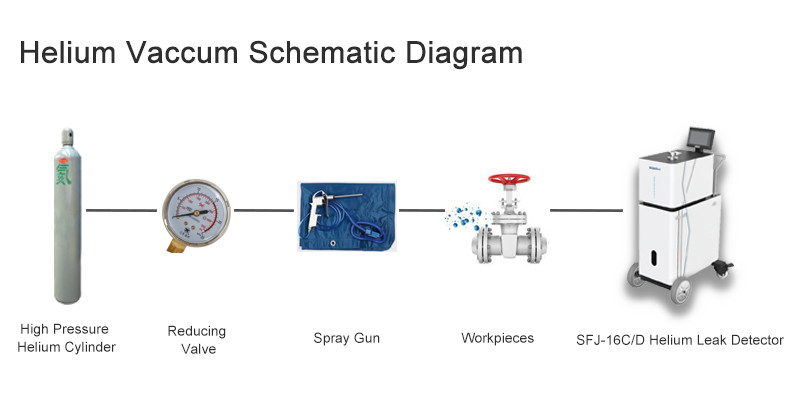

Minimum detectable leak rate
(Pa·m3/s)/ vacuum mode
5.0×10-12

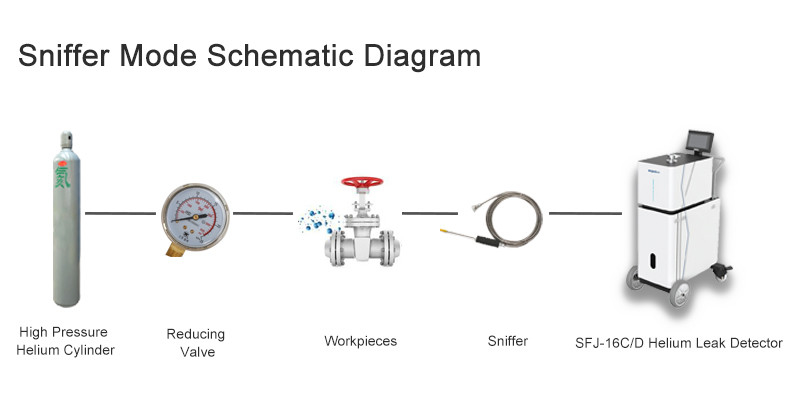

Minimum detectable leak rate
(Pa·m3/s)/ Suction gun mode
5.0×10-9
Response time(s) <1
Startup time(min) ≤2
Leakage detection range
(Pa·m3/s)
5.0×10-13~1.0×10-3
Leakage rate display range
(Pa·m3/s)
1.0×10-13~1.0×10-3
Maximum allowable leak detection pressure(Pa) 1330
Detectable quality 2,3,4(H2 , He3, He4)





















Basic Configuration












Man-machine interface 7 "color LCD Touch Screen
Ion source 2pcs, iridium coated yttrium oxide, automatic switching
I/O INPUT/output interface Eight inputs and eight outputs
Communication interface RS232/485,USB*2
MES interface Standard
Specifications of Leak Detection Port DN25 KF
Specifications of leak detection port DN16 KF/2pcs
Power Supply AC220V,50HZ/60HZ
Operating temperature 0-40ºC
Power 1000W
Display language Both Chinese and English
Leakage rate display Figure, bar chart, curve chart



Product Performance



1. Self-protection functions prevents the background from being polluted;
2. Automatic evacuation pressure and time setting, high leak detection efficiency;
3. Fault prompt and alarm function;
4. Wireless remote-control function (optional);



Product Application



Electricity, Refrigeration, Lithium batteryMedical
