Odm Helium Mass Spectrometer Leak Detector Equipment For Air Conditioning

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO90001, CE
Model Number SFJ-231
Minimum Order Quantity 1 Piece
Price Negotiation
Packaging Details 1 Piece Per Wooden Case
Delivery Time 15 Days
Payment Terms L/C, T/T
Supply Ability 200 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Dimension 645 X 678 X 965mm Voltage AC220V, 50HZ/60HZ
Product Name Helium Mass Spectrometer Leak Detector Operating Temperature 0-40°C
Language Support Chinese And English Response Time(s) <1
High Light

Odm helium mass spectrometer leak detector

,

helium mass spectrometer leak detector

,

Odm helium leak detection equipment

Leave a Message
Product Description

Air Conditioning Helium Leak Detection Equipment Helium Mass Spectrometer Leak Detector


Introduction of Helium Leak Detector

SFJ-231 Helium leak detector is an instrument for rapid positioning and quantitative measurement of leakage of sealed containers.A helium mass spectrometer leak detector is an instrument for the rapid localization and quantitative measurement of leaks in sealed containers. It is characterized by high detection sensitivity, high speed and wide application range.


Product Parameters of Helium Leak Detector

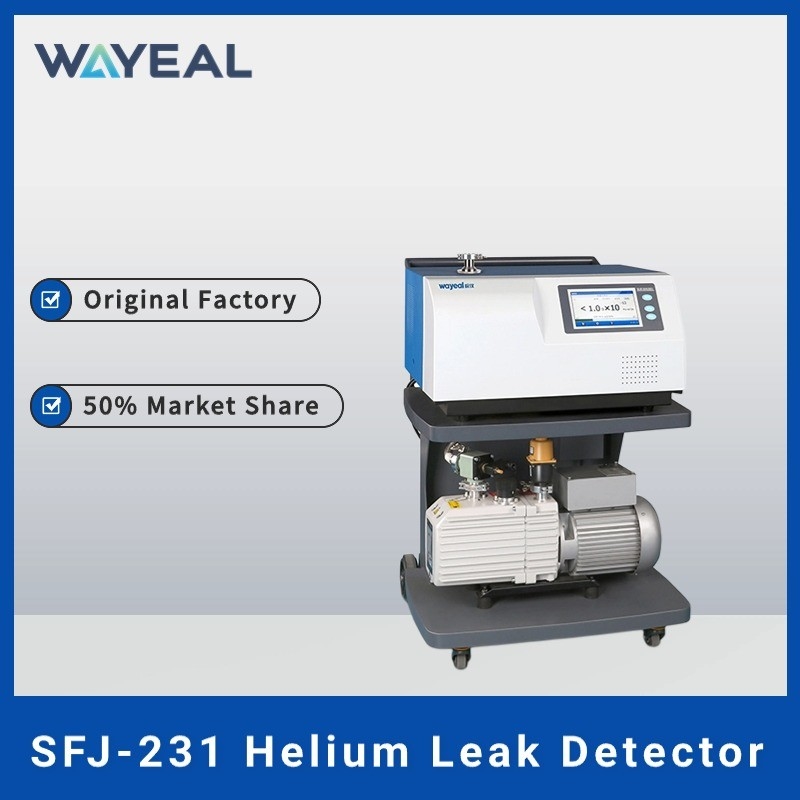

SFJ-231 Helium Leak Detector








Performance Indicators



Minimum detectable leak rate
(Pa·m3/s)/ vacuum mode

5.0×10-13

Minimum detectable leak rate
(Pa·m3/s)/ sniffer mode

5.0×10-9

Response time(s)

<1

Startup time(min)

≤2

Leakage detection range
(Pa·m3/s)

5.0×10-13~1.0×10-3

Leakage rate display range
(Pa·m3/s)

1.0×10-12~1.0×10-3

Maximum allowable leak detection pressure(Pa)

1330

Detectable quality

2,3,4(H2 , He3, He4)











Basic Configuration



Man-machine interface

7 "color LCD Touch Screen

Ion source

2pcs, iridium coated yttrium oxide, automatic switching

I/O Input/output interface

Eight inputs and eight outputs

Communication interface

RS232/485,USB*2

MES interface

Standard

Physical size of instrument
(W)×(D)×(H),mm

645 x 678 x 965mm

Specifications of leak detection port

DN25 KF

Power Supply

AC220V,50HZ/60HZ

Operating temperature

0-40ºC

Power

1000W

Display language

Both Chinese and English

Leakage rate display

Figure, bar chart, curve chart





Features of Helium Leak Detector


1. Original imported molecular pump
2. Double iridium with ion source
3. Signal multi-stage amplification technology
4. High-speed CPU+IDC
5. Wireless remote control
6. One-click automatic clearing of helium background;
