Vacuum Gas Helium Leak Detector Machine Spectrometer For Industrial Refrigeration

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO90001, CE
Model Number SFJ-16M
Minimum Order Quantity 1 Piece
Price Negotiation
Packaging Details 1 Piece Per Wooden Case
Delivery Time 15 Days
Payment Terms L/C, T/T, Western Union
Supply Ability 200 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 350 X 255 X 300mm Power 240W
Product Name Modular Helium Mass Spectrometer Leak Detector Minimum Detectable Leak Rate (Pa·m3/s)/ Vacuum Mode Vacuum Mode (FINE):1.0×10-12 (helium Pumping Speed 2.5 L /s)
Startup Time(min) ≤95s Pakage Wooden Case Or Customized
OEM Accepted
High Light

Vacuum helium leak detector machine

,

helium leak detector machine

,

Vacuum helium spectrometer

Leave a Message
Product Description

Vacuum Gas Leak Detection Helium Leak Detector Machine for Industrial Refrigeration





Introduction of Helium Leak Detector

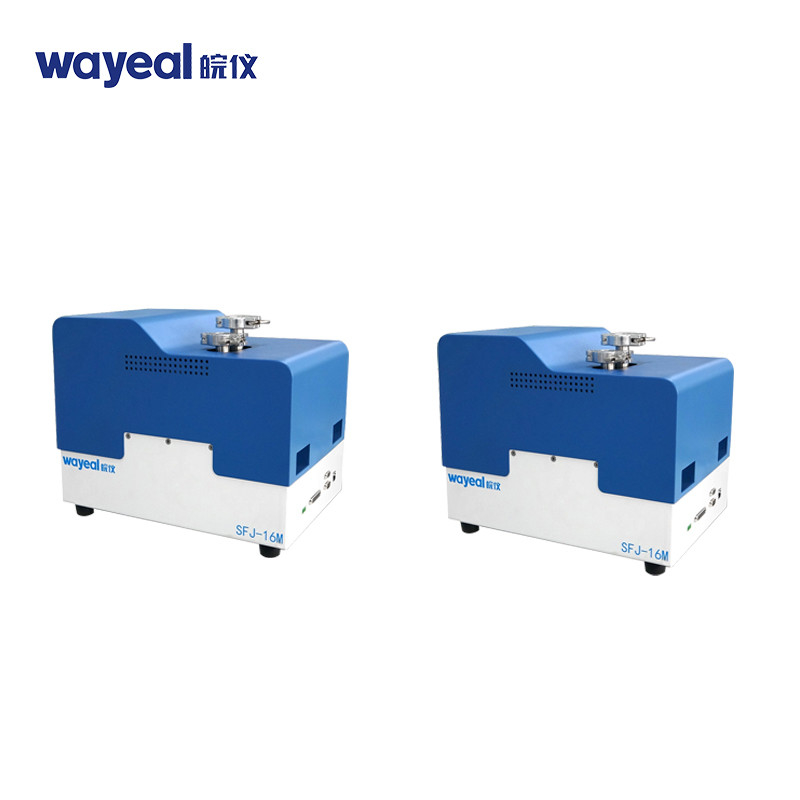

SFJ-16M is a modular helium mass spectrometer leak detector with light modular structure design. Because of its small overall size, it is very easy to be integrated into the industrial leakage test equipment.



Parameters of Helium Leak Detector



SFJ-16M Helium Leak Detector















Performance Indicators








Minimum detectable leak rate
(Pa·m3/s)/ vacuum mode

Vacuum Mode (ULTRA):5.0×10-13 (helium pumping speed >5 l/s)
Vacuum mode (FINE):1.0×10-12 (helium pumping speed 2.5 L /s)

Minimum detectable leak rate

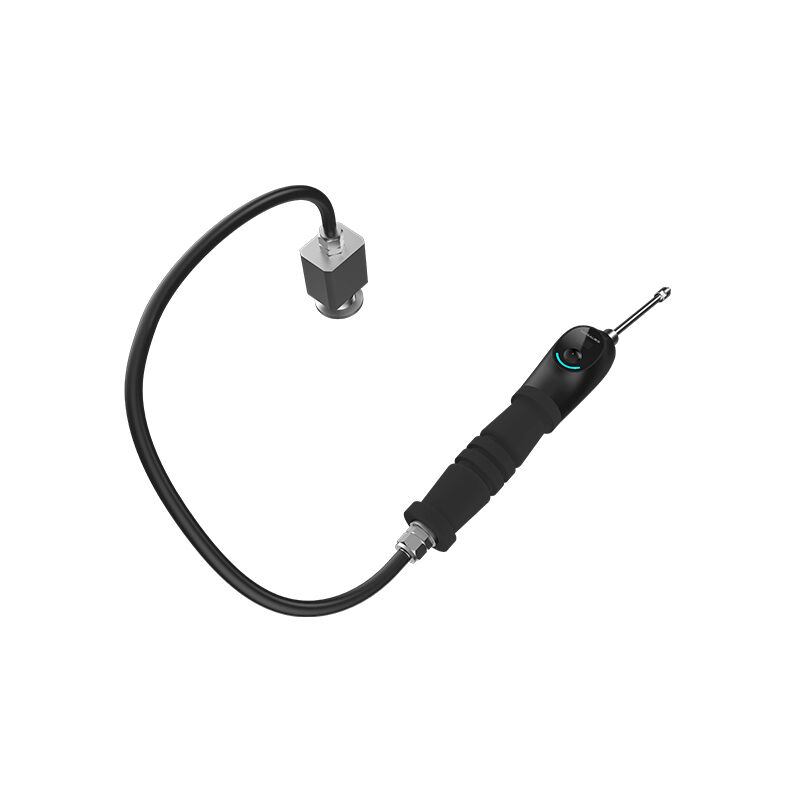

(Pa·m3/s)/ Suction gun mode

5.0×10-8

Response time(s)

<1

Startup time(min)

≤95s

Leakage detection range
(Pa·m3/s)

5.0×10-13~1.0×10-3

Leakage rate display range
(Pa·m3/s)

1.0×10-13~1.0×10-3

Maximum allowable leak detection pressure(Pa)

1500

Detectable quality

2,3,4(H2 , He3, He4)





















Basic Configuration












Man-machine interface

5 "color LCD Touch Screen

Ion source

2pcs, iridium coated yttrium oxide, automatic switching

I/O Input/output interface

Eight inputs and eight outputs

Communication interface

RS232/485,LAN

MES interface

Standard

Physical size of instrument
(W)×(D)×(H),mm

592 * 498 * 370mm

Specifications of leak detection port

DN16 KF/2pcs

Power Supply

DC24V

Operating temperature

0-40ºC

Power

240W

Display language

Both Chinese and English

Leakage rate display

Figure, bar chart, curve chart



Features of Helium Leak Detector

1. Two signal scan calibration algorithm
2. Original imported molecular pump
3. Double iridium with ion source

4. Short starting time, fast signal response and clearing speed;

5. High reliable leak detection efficiency;





Applications of Helium Leak Detector



Electricity,

Refrigeration,

Lithium battery
