Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
ISO90001, CE
Model Number:
SFJ-16M

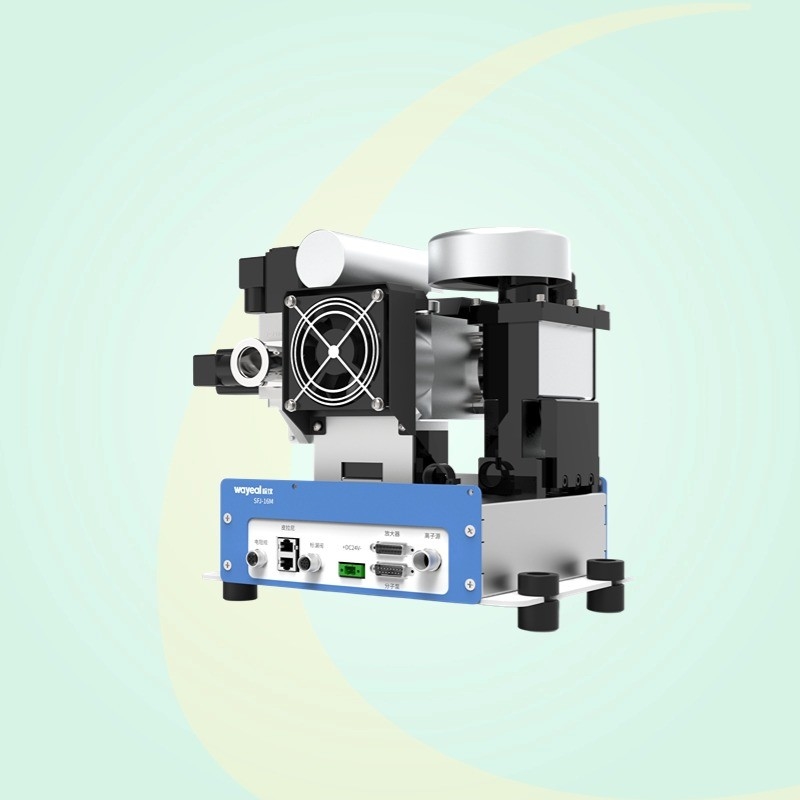

SFJ-16M Modular Helium Mass Spectrometer Leak Detector for New Energy
Introduction of Helium Leak Detector

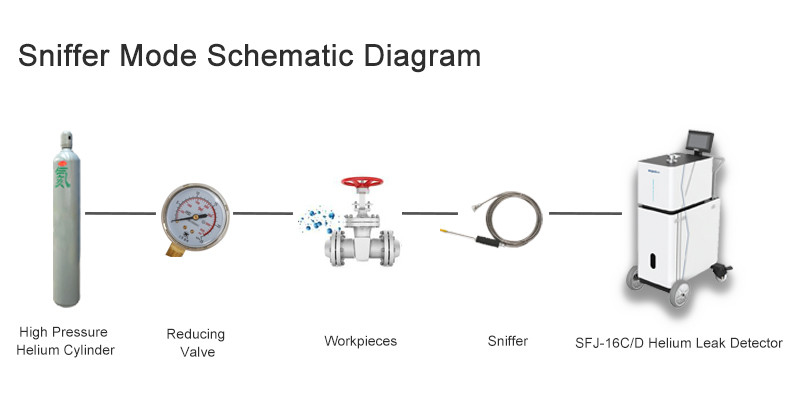

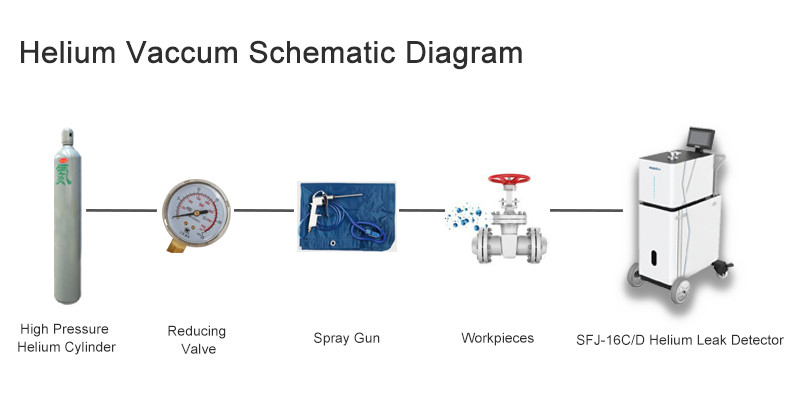

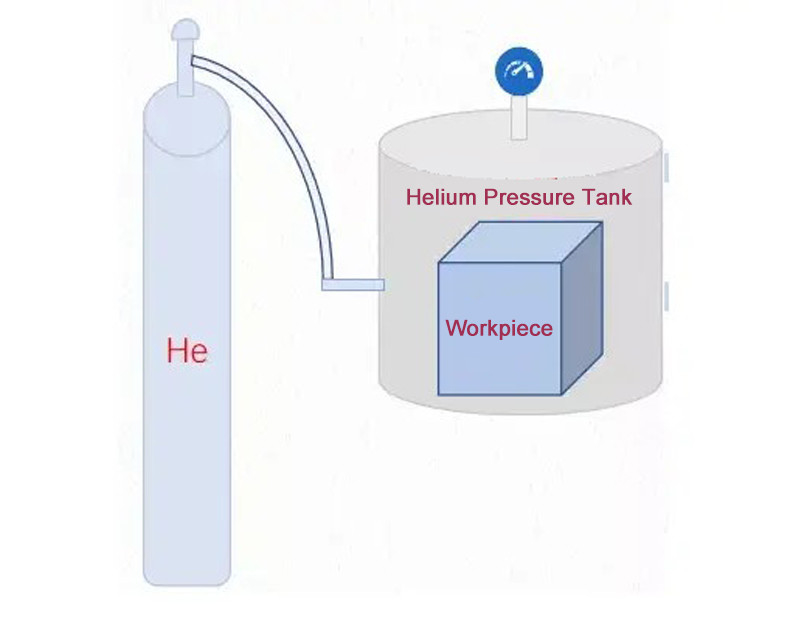

The helium mass spectrometer leak detector selects non-toxic, non-destructive and light inert gas helium as the search gas, so it is safe and reliable. Fast and accurate detection of hydrogen or helium by vacuum helium injection, suction lance, helium hood, back pressure, etc. Suitable for a variety of demanding and harsh industrial environments.
Parameters of Helium Leak Detector
|
SFJ-16M Modular Vaccum Leak Tester Helium Leak Detector Price |
|
|---|---|
|
Product Name |
Helium Leak Detector |
| Detection Method | Helium Mass Spectrometer |
| Leak Detection Port |
ULTRA: DN25KF FINE: DN16KF |
| Leak Rate Display | Numbers, Bar Charts, Graphs |
| Response Time(s) | <1s |
| User Interface | 5inch Color Touch Screen |
| Operating temperature | 0~40°C |
| Max Allowable Leak Detection Pressure (Pa) |
ULTRA:40 FINE: 200 |
| Communication Interface | RS232/485, LAN |
| Detectable Quality | 2, 3, 4 (H2, He-3, He-4) |
| Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode | 5.0*10 -9 Pa.m3/s |
| Mini Leak Detection Rate(Pa.m3/s)/Vacuum Mode | 5.0*10-13 Pa.m3/s |
| Startup Time (min) | ≤2 |
| Diamension | 337*240*318mm |
| Power Supply | DC24V (±5%) |
| Language | Chinese/English |
Features of Helium Leak Detector
1. Original imported molecular pump
2. Functions of real-time monitoring and automatic recording of leak detection curve;
3. Double iridium with ion source
4. The leakage rate value can be read in display modes of digital, bar and trend charts;
5. Clean air circuit system
6. Wireless remote-control function (optional);
