Wayeal Helium Leak Detector Biotechnology Laboratory Analytical Instruments

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO90001, CE
Model Number SFJ-261
Minimum Order Quantity 1 Piece
Price Negotiation
Packaging Details 1 Piece Per Wooden Case
Delivery Time 15 Days
Payment Terms L/C, T/T, Western Union
Supply Ability 200 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 592*498*370mm Power AC220V, 50HZ/60HZ
Startup Time(min) ≤2 Man-machine Interface 7 "color LCD Touch Screen
Application New Energy Industry Detection Range 7 "color LCD Touch Screen
High Light

Laboratory Helium Leak Detector

,

Wayeal Helium Leak Detector

,

Wayeal biotechnology laboratory analytical instruments

Leave a Message
Product Description

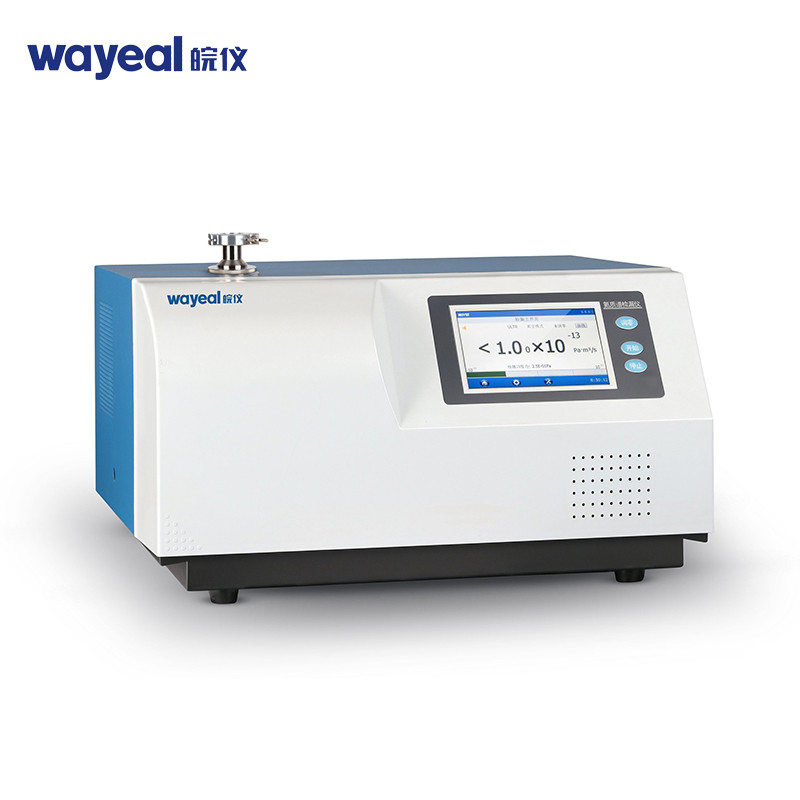

Sfj-261 Suction Gun Vacuum Refrigrant Helium Mass Spectrometer Leak Detector





Product Description



Compared with bubble identification method, pressure decay method and halogen leak detection method, the helium mass spectrometer leak detection method has high detection sensitivity, high speed and wide application range.



Product Performance

1. Original imported molecular pump
2. Unique gas circuit design, relatively low particulate interference;
3.
Double iridium with ion source
4. Automatic evacuation pressure and time setting, high leak detection efficiency;
5.
Clean air circuit system
6. Wireless remote-control function (optional);




Product Parameters



SFJ-261 Helium Leak Detector















Performance Indicators








Minimum detectable leak rate
(Pa·m3/s)/ vacuum mode
5.0×10-13
Minimum detectable leak rate
(Pa·m3/s)/ Suction gun mode
5.0×10-9
Response time(s) <1
Startup time(min) ≤2
Leakage detection range
(Pa·m3/s)
5.0×10-13~1.0×10-3
Leakage rate display range
(Pa·m3/s)
1.0×10-13~1.0×10-3
Maximum allowable leak detection pressure(Pa) 1500
Detectable quality 2,3,4(H2 , He3, He4)





















Basic Configuration












Man-machine interface 7 "color LCD Touch Screen
Ion source 2pcs, iridium coated yttrium oxide, automatic switching
I/O INPUT/output interface Eight inputs and eight outputs
Communication interface RS232/485,USB*2
MES interface Standard
Physical size of instrument
(W)×(D)×(H),mm
592 * 498 * 370mm
Specifications of leak detection port DN25 KF
Power Supply AC220V,50HZ/60HZ
Operating temperature 0-40ºC
Power 1000W
Display language Both Chinese and English
Leakage rate display Figure, bar chart, curve chart
