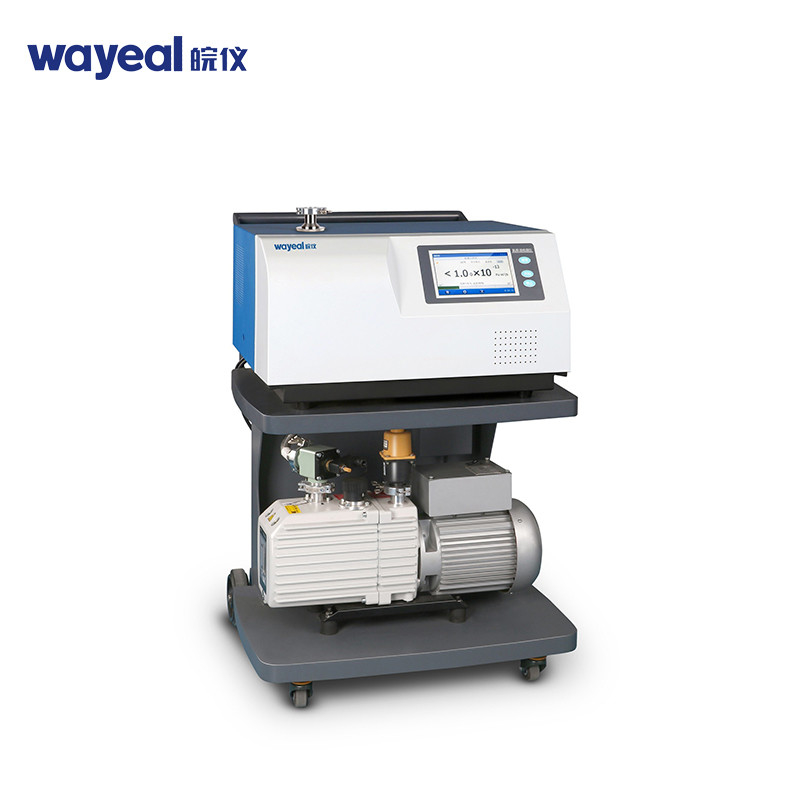

SFJ-231 Mass Spectrometer Helium Leak Detector system For Vacuum Industry 220V 1000W

Basic Properties
Place of Origin: Anhui, China
Brand Name: Wayeal
Certification: ISO90001, CE
Model Number: SFJ-231
Trading Properties
Minimum Order Quantity: 1 Piece
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 2000 Pieces Per Month
Tags

helium leak detector machine

helium mass spectrometer leak detector

vacuum helium leak detector
Specifications
Size: 645 X 678 X 965mm Power: AC220V, 50HZ/60HZ
Product Name: Helium Leak Detector Detectable Quality: 2,3,4(H2 , He3, He4)
Application: Semiconductor, New Energy, Vaccum Pump, Air Conditioner Response Time(s): <1
High Light:

1000W Helium Leak Detector

,

220V Helium Leak Detector

,

220V helium leak detection system
Product Description

SFJ-231 Mass Spectrometer Leak Detector Hellium Leak Detector for Vacuum Industry
Introduction of Helium Leak Detector
SFJ-231 Helium leak detector is an instrument for rapid positioning and quantitative measurement of leakage of sealed containers
Parameters of Helium Leak Detector

SFJ-231 Helium Leak Detector








Performance Indicators


Minimum detectable leak rate
(Pa·m3/s)/ vacuum mode

5.0×10-13

Minimum detectable leak rate
(Pa·m3/s)/ Suction gun mode

5.0×10-9

Response time(s)

<1

Startup time(min)

≤2

Leakage detection range
(Pa·m3/s)

5.0×10-13~1.0×10-3

Leakage rate display range
(Pa·m3/s)

1.0×10-12~1.0×10-3

Maximum allowable leak detection pressure(Pa)

1330

Detectable quality

2,3,4(H2 , He3, He4)











Basic Configuration


Man-machine interface

7 "color LCD Touch Screen

Ion source

2pcs, iridium coated yttrium oxide, automatic switching

I/O Input/output interface

Eight inputs and eight outputs

Communication interface

RS232/485,USB*2

MES interface

Standard

Physical size of instrument
(W)×(D)×(H),mm

645 x 678 x 965mm

Specifications of leak detection port

DN25 KF

Power Supply

AC220V,50HZ/60HZ

Operating temperature

0-40ºC

Power

1000W

Display language

Both Chinese and English

Leakage rate display

Figure, bar chart, curve chart

Features of Helium Leak Detector

1. Original imported molecular pump
2. Double iridium with ion source
3. Clean air circuit system
4. High-speed CPU+IDC
5. Signal multi-stage amplification technology
6. Wireless remote control
7. One-click automatic clearing of helium background;
