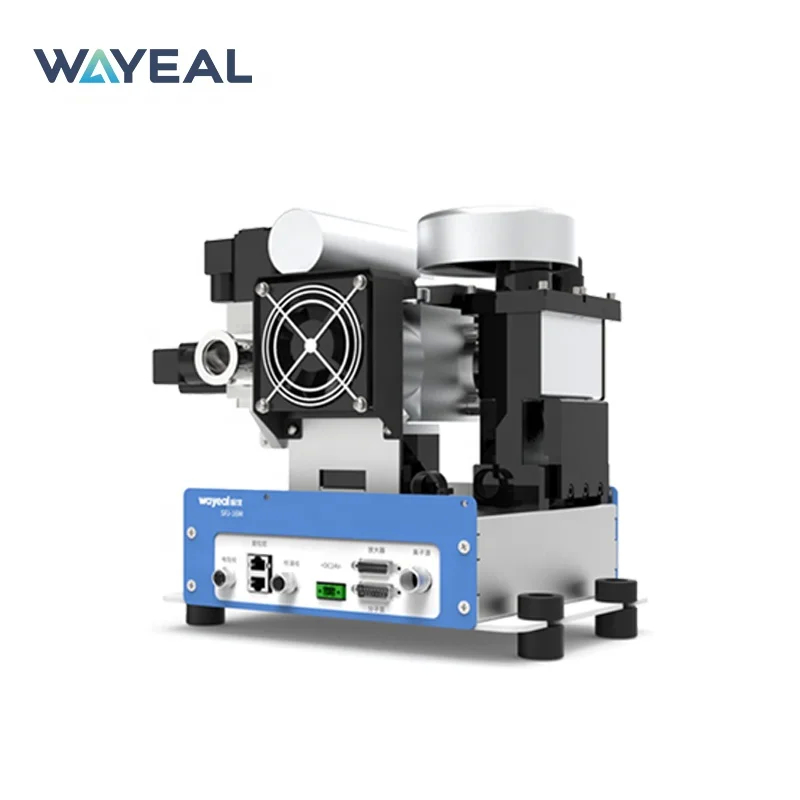

SFJ-16M Modular Vacuum Helium Testing Mass Spectrometer Leak Detector DC24V

SFJ-16M Modular Vacuum Helium Testing Mass Spectrometer Leak Detector DC24V

Automatic Switching helium leak detection

Sniffer Mode helium leak detection

Place of Origin:

Anhui, China

Brand Name:

Wayeal

Certification:

CE

Model Number:

SFJ-16M

Contact Us
Request A Quote
SFJ-16M Modular Vacuum Helium Testing Mass Spectrometer Leak Detector DC24V
SFJ-16M Modular Vacuum Helium Testing Mass Spectrometer Leak Detector DC24V SFJ-16M Modular Vacuum Helium Testing Mass Spectrometer Leak Detector DC24V SFJ-16M Modular Vacuum Helium Testing Mass Spectrometer Leak Detector DC24V SFJ-16M Modular Vacuum Helium Testing Mass Spectrometer Leak Detector DC24V SFJ-16M Modular Vacuum Helium Testing Mass Spectrometer Leak Detector DC24V
Product Details
Operating Temperature:
0~40°C
Ion Source:
2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
Diamension:
400 * 330 *301mm
Power Supply:
DC24V
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode:
5.0*10-9 Pa.m3/s
User Interface:
5inch Color Touch Screen
Leak Detection Port:
(ULTRA): DN25KF, (FINE): DN16KF
Language:
Chines/English
Highlight:

Automatic Switching helium leak detection

,

Sniffer Mode helium leak detection

Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
Negotiate
Packaging Details
Wooden Case
Delivery Time
35 days
Payment Terms
T/T, VISA
Supply Ability
200 Units/Month
RELATED PRODUCTS
Good price Airtightness Helium Mass Spectrometer Leak Detector In Pressurized Systems online Video

Airtightness Helium Mass Spectrometer Leak Detector In Pressurized Systems

Get Best Price
Good price SFJ-16C Mobile Trolley Design Vaccum Helium Leak Detector Machine Price online Video

SFJ-16C Mobile Trolley Design Vaccum Helium Leak Detector Machine Price

Get Best Price
Good price 24V Modular Vacuum gas Helium Leak Detector Mass Spectrum At Pump online Video

24V Modular Vacuum gas Helium Leak Detector Mass Spectrum At Pump

Get Best Price
Good price SFJ-16M Modular Vacuum Helium Testing Mass Spectrometer Leak Detector DC24V online Video

SFJ-16M Modular Vacuum Helium Testing Mass Spectrometer Leak Detector DC24V

Get Best Price
Contact Us
+8613586823203
export@wayeal.com.cn
Contact Now
Product Description

Introduction of Helium Leak Detector:

The helium mass spectrometer leak detector is a complete system for localization and measuring of leaks inside or outside of a product. This method uses so called tracer gas – helium, which is used to fill up the product connected to the detector. Helium leaks in/out of the tested product in to the detector where its partial pressure is measured and displayed on a screen.



Technical Parameters of Helium Leak Detector:

SFJ-16M Helium Leak Detector















Performance Indicators








 Minimum detectable leak rate
(Pa·m3/s)/ vacuum mode		 Vacuum Mode (ULTRA):5.0×10-13 (helium pumping speed >5L/s)
Vacuum mode (FINE):1.0×10-12 (helium pumping speed 2.5L/s)
Minimum detectable leak rate
(Pa·m3/s)/ sniffer mode		 5.0×10-9
Response time(s) <1
Startup time(min) ≤
Maximum allowable leak detection pressure(Pa)

(ULTRA):40

(FINE): 200
Detectable quality 2,3,4(H2 , He-3, He-4)





















Basic Configuration












 Man-machine interface 5 "color LCD Touch Screen
Ion source 2pcs, iridium coated yttrium oxide, automatic switching
I/O Input/output interface Eight inputs and eight outputs
Communication interface RS232/485,LAN
MES interface Standard
Physical size of instrument
(W)×(D)×(H),mm		 400 * 330 * 301mm
Specifications of leak detection port

(ULTRA): DN25KF

(FINE): DN16KF
Power Supply DC24V
Operating temperature 0-40ºC
Power DC24V
Display language Both Chinese and English
Leakage rate display Figure, bar chart, curve chart



Applications of Helium Leak Detector:

Wayeal SFJ-16M/M+ Helium Leak Detector is an advanced and high-precision testing device that is widely used in the industrial sector for helium leak testing, providing a reliable and efficient solution for detecting leaks in vacuum systems. As a prominent helium leak detection supplier, Wayeal SFJ-16M is designed to detect and locate the smallest leaks in vacuum systems and help maintain the quality and safety of the equipment. It's widely used in the area of New energy battery, automobile refrigeration, power plants, pressure vessels, [recision machining, semiconductor industry, vacuum pump system and etc.



Optional Accessories of Helium Leak Detector:

Accurate Leak Detection Vacuum Helium Leak Detector 220V 50Hz 0



SFJ-16M Modular Vacuum Helium Testing Mass Spectrometer Leak Detector DC24V 1



SFJ-16M Modular Vacuum Helium Testing Mass Spectrometer Leak Detector DC24V 2SFJ-16M Modular Vacuum Helium Testing Mass Spectrometer Leak Detector DC24V 3SFJ-16M Modular Vacuum Helium Testing Mass Spectrometer Leak Detector DC24V 4
