Introduction of Helium Leak Detector:

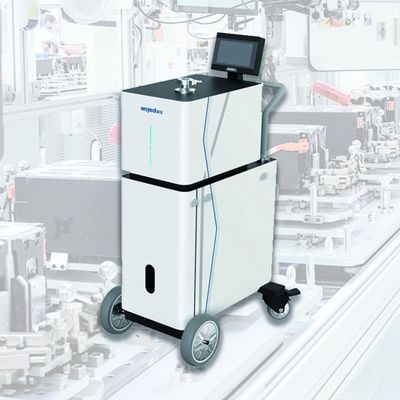

Helium Leak Detector
Helium leak detector is a reliable, advanced and cost-effective solution for helium leak detection supplied by a reliable helium leak detection supplier. This advanced detector is equipped with a helium mass spectrometer leak detector, which can detect and locate helium leaks with up to 1800Pa max allowable leak detection pressure.The helium leak detector is equipped with two ion sources, iridium coated yttrium oxide, which can be switched automatically for reliable detection.
Technical Parameters of Helium Leak Detector:
| RS232/485 Communication Interface Vaccum Helium Mass Spectrometer Leak Detector 220V |
| Product Name |
Helium Leak Detector |
| MES Interface |
Standard |
| Response Time(s) |
<1s |
| Diamension |
755*467*1180mm |
| Detectable Quality |
2, 3, 4 (H2, He3, He4) |
| User Interface |
7inch Color Touch Screen |
| Operating temperature |
0~40°C |
| I/O Input output interface |
8 Inputs, 8 Outputs |
| Communication Interface |
RS232/485, LAN |
| Max Allowable Leak Detection Pressure (Pa) |
1800Pa |
| Startup Time (min) |
≤1.58 |
| HMI |
7inch color LCD touch screen |
| Ion Source |
2pcs, iridium coated yttrium oxide, automatic switching |
| Backing Pumps |
Rotary Vanes Vaccum Pump |
| Power Supply |
AC220V, 50Hz/60Hz |
| Operating Temperature |
0~40°C |
| Language |
Chinese/English |
Applications of Helium Leak Detector:
The helium leak detector is a high-end vacuum detection device manufactured by Wayeal, with model number SFJ-16C.The helium leak detector is widely used in various industries, including pharmaceuticals, aerospace, automotive, and electronics. It is an ideal choice for vacuum detection and helium leak detection applications. With its advanced technologies, the detector is able to detect a leak rate of 5*10-13 Pa.m3/s with a helium mass spectrometer. It is reliable, accurate, and easy to use, making it a perfect choice for customers who are looking for a helium leak detection supplier.
Support and Services:
Helium Leak Detector Technical Support & Services
We offer comprehensive technical support and services for our helium leak detector. Our experienced technicians can provide support and advice for all aspects of the product, including installation, calibration, operation, and maintenance. We can also provide preventive maintenance, troubleshooting, and repair services as needed. If you have any questions or concerns about your helium leak detector, please reach out to us.
Methods of Helium Leak Detector Leak Detection
Negative Pressure Method
Vacuum Chamber Helium Leak Detection and Recovery System (external filling)
Sniffer Method
