SFJ-231D High Precision Leak Detection Rate Dry Pump Helium Leak Detector

SFJ-231D High Precision Leak Detection Rate Dry Pump Helium Leak Detector

SFJ-231D Helium Leak Detector

High Humping Capacity Helium Leak Detector

645678965 mm helium leak tester

Place of Origin:

Anhui, China

Brand Name:

Wayeal

Certification:

CE

Model Number:

SFJ-231D

Contact Us

Request A Quote

SFJ-231D High Precision Leak Detection Rate Dry Pump Helium Leak Detector

SFJ-231D High Precision Leak Detection Rate Dry Pump Helium Leak Detector

SFJ-231D High Precision Leak Detection Rate Dry Pump Helium Leak Detector

Product Details

Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode:

5*10-9 Pa.m3/s

Start Time (min):

≤2

Detectable Quality:

2, 3, 4 (H2, He3, He4)

Language:

Chines/English

Response Time(s):

<1

Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode:

5*10-13 Pa.m3/s

Diamension:

645*678*965mm

MES Interface:

Standard

Highlight:

SFJ-231D Helium Leak Detector

,

High Humping Capacity Helium Leak Detector

,

645678965 mm helium leak tester

Payment & Shipping Terms

Minimum Order Quantity

1 Unit

Price

Negotiate

Packaging Details

Wooden Case

Delivery Time

35 days

Payment Terms

T/T, VISA

Supply Ability

200 Units/Month

RELATED PRODUCTS

Good price Airtightness Helium Mass Spectrometer Leak Detector In Pressurized Systems online

Video

Airtightness Helium Mass Spectrometer Leak Detector In Pressurized Systems

Get Best Price

Good price SFJ-16C Mobile Trolley Design Vaccum Helium Leak Detector Machine Price online

Video

SFJ-16C Mobile Trolley Design Vaccum Helium Leak Detector Machine Price

Get Best Price

Good price 24V Modular Vacuum gas Helium Leak Detector Mass Spectrum At Pump online

Video

24V Modular Vacuum gas Helium Leak Detector Mass Spectrum At Pump

Get Best Price

Good price SFJ-16M Modular Vacuum Helium Testing Mass Spectrometer Leak Detector DC24V online

Video

SFJ-16M Modular Vacuum Helium Testing Mass Spectrometer Leak Detector DC24V

Get Best Price

Contact Us

export@wayeal.com.cn

Contact Now

Product Description

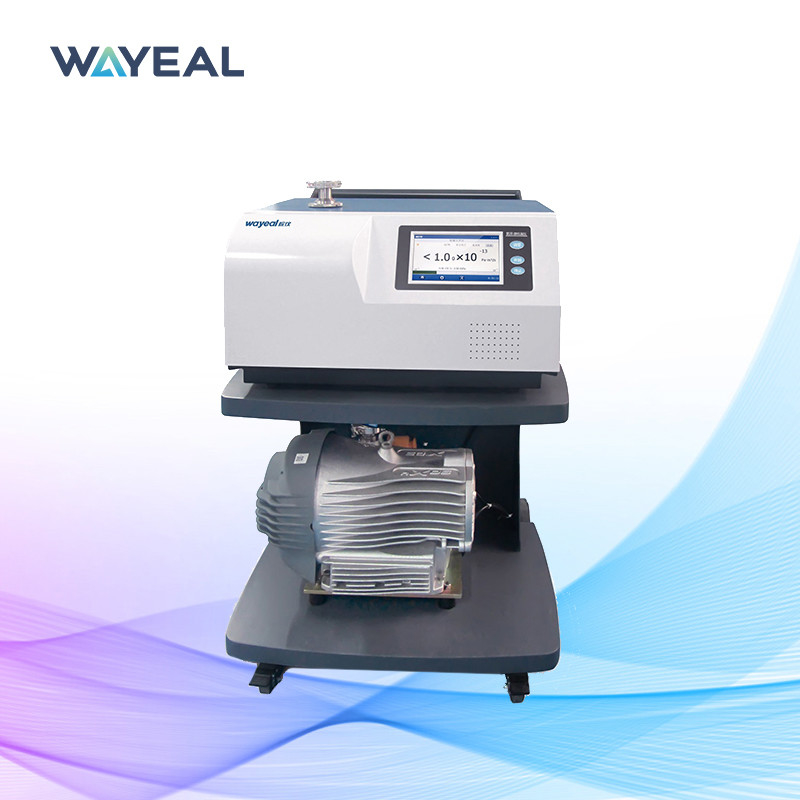

SFJ-231D High Precision Leak Detection Rate Dry Pump Helium Leak Detector

Introduction of Helium Leak Detector:

The Helium Leak Detector is a high-performance vacuum leak detection device for detecting leaks in industrial and laboratory systems. Mobile helium mass specrometer leak detectors are used where high pumping capacity is needed to evacuate a large volume in a short time and fast cleanup of helium background are required. There are used in highly sensitive applications in vacuum and medical technology or research and development or Semiconductor industry where mobility is also a key.

Technical Parameters of Helium Leak Detector:

SFJ-231D High Precision Leak Detection Rate Dry Pump Helium Leak Detector
Product Name	Helium Leak Detector
Communication Interface	RS232/485, USB*2
Mini Leak Detection Rate(Pa.m³/s)/Sniffer Mode	5*10^-9 Pa.m³/s
Mini Leak Detection Rate(Pa.m³/s)/Vaccum Mode	5*10^-13 Pa.m³/s
Ion Source	2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
I/O Input output interface	8 Inputs, 8 Outputs
Startup Time (min)	≤2
Diamension	645678965mm
Response Time(s)	<1s
Detection Method	Helium Leak Testing
Max Allowable Leak Detection Pressure (Pa)	1500
Language	Chinese and English
Power Supply	AC220V, 50Hz/60Hz
Operating Temperature	0~40°C
Leak Port	DN25KF

Applications of Helium Leak Detector:

Brake system: brake master pump/sub pump, brake caliper, wheel cylinder, etcSteering system: steering assembly, etc.

Transmission system: transmission assembly/housing, axle assembly/housing, etc.

Exhaust system: intake/exhaust manifold, EGR, three-way catalytic converter, muffler assembly, etc.

Cooling system: oil cooler, radiator, intercooler, oil cooler, thermostat, etc.

Electrical system: battery, lamp, air conditioning parts, waterproof electric plug, solenoid valve, electriccontrol box, electronic spray system, etc.

Support and Services:

Helium Leak Detector Technical Support and Service

We provide technical support and service for all Helium Leak Detector products. Our experienced technicians are available to answer your questions, troubleshoot any problems, and help you get the most out of your equipment.

We offer a wide range of services, including:

Online or nn-site installation and maintenance
Remote diagnostics and troubleshooting
Software updates and upgrades
Training and education
Repairs and replacements

Methods of Helium Leak Detection

Negative Pressure Method

Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

Sniffer Method

SFJ-231D High Precision Leak Detection Rate Dry Pump Helium Leak Detector 4
