Name: High Sensitivity Helium Leak Tester with Dry Vacuum Pump
Brand: Anhui Wanyi Science and Technology Co., Ltd.
SKU: SFJ-231
Price: 15,499.00 USD
Availability: InStock

Home > products > Helium Leak Detector >

High Sensitivity Helium Leak Tester with Dry Vacuum Pump

Bar Charts Vaccum leak detector

Sensitivity Vaccum leak detector

Graph Display Vaccum leak detector

Place of Origin:

Anhui, China

Brand Name:

Wayeal

Certification:

Model Number:

SFJ-231

Request A Quote

High Sensitivity Helium Leak Tester with Dry Vacuum Pump

Product Details

Leak Rate Display:

Numbers, Bar Charts, Graphs

Max Allowable Leak Detection Pressure (Pa):

1500Pa

Communication Interface:

RS232/485, LAN

Diamension:

645*678*965mm

Product Name:

Helium Leak Detector

Start Time (min):

≤1.58min

Detectable Quality:

2, 3, 4 (H2, He3, He4)

Leak Detection Port:

DN25KF

Highlight:

Bar Charts Vaccum leak detector

Sensitivity Vaccum leak detector

Graph Display Vaccum leak detector

Payment & Shipping Terms

Minimum Order Quantity

1 Unit

Price

Negotiate

Packaging Details

Wooden Case

Delivery Time

35 days

Payment Terms

T/T, VISA

Supply Ability

200 Units/Month

High Sensitivity Helium Leak Tester with Dry Vacuum Pump

Get Best Price

Advanced Vacuum Helium Leak Detector for HVAC Industry

Get Best Price

7Inch Color Touch Screen Helium Leak Detector for PCBs Leak Detection

Get Best Price

High Precision Helium Leak Detection Equipment with Iridium Ion Source

Get Best Price

+8613586823203

export@wayeal.com.cn

Contact Now

Product Description

Technical Specifications of SFJ-231D Helium Leak Detector

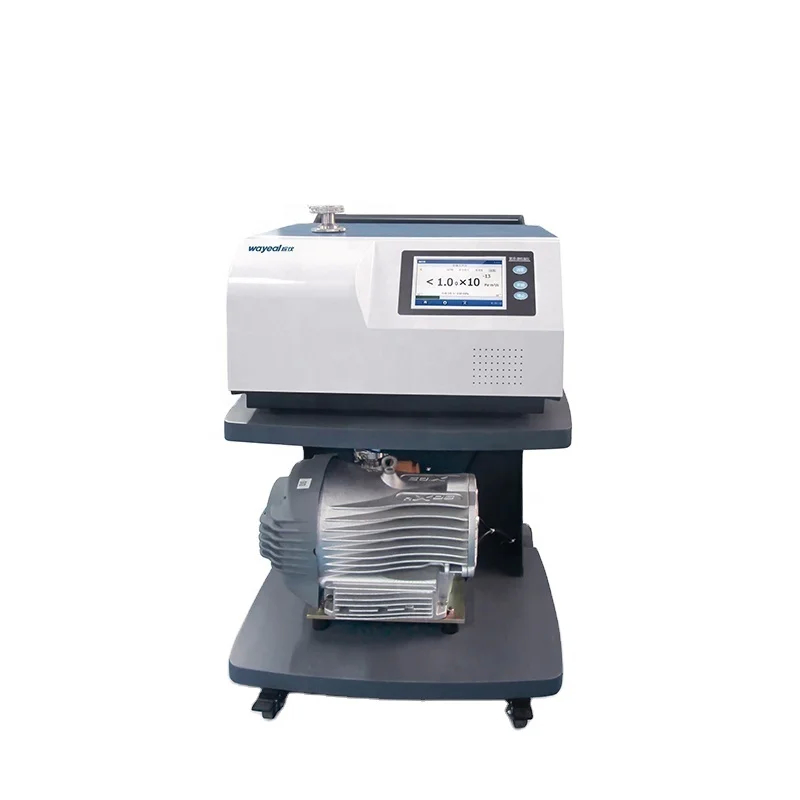

Wayeal SFJ-231d Oil Free Dry Pump Helium Leak Detector Machine
Performance Indicators	Minimum detectable leak rate (Pa·m³/s)/ vacuum mode	5.0×10^-13
	Minimum detectable leak rate (Pa·m³/s)/ sniffer mode	5.0×10^-9
	Response time(s)	<1
	Startup time(min)	≤2
	Leakage detection range (Pa·m³/s)	5.0×10^-13~1.0×10^-3
	Leakage rate display range (Pa·m³/s)	1.0×10^-13~1.0×10^-3
	Maximum allowable leak detection pressure(Pa)	1500
	Detectable quality	2,3,4(H2 , He3, He4)
Basic Configuration	Man-machine interface	7 "color LCD Touch Screen
	Ion source	2pcs, iridium coated yttrium oxide, automatic switching
	I/O Input/output interface	Eight inputs and eight outputs
	Communication interface	RS232/485, USB*2
	MES interface	Standard
	Physical size of instrument (W)×(D)×(H),mm	592 * 498 * 370mm
	Specifications of leak detection port	DN25 KF
	Power Supply	AC220V, 50HZ/60HZ
	Operating temperature	0-40ºC
	Power	1000W
	Display language	Both Chinese and English
	Leakage rate display	Figure, bar chart, curve chart

Dry vacuum pumps (oil-free vacuum pumps) are widely used in leak detection applications that demand high cleanliness, corrosion resistance, and operational efficiency due to their oil-free operation, corrosion resistance, and simple maintenance requirements. The following outlines typical industries and components where dry pumps are essential for leak testing:
1. Semiconductor and Electronics Industry

Leak testing components:
Wafer fabrication equipment (e.g., etching machines, CVD reaction chambers)
High-vacuum sealed devices (MEMS sensors, chip packaging)

Vacuum coating equipment
2. New Energy Industry (Lithium Batteries/Hydrogen Energy)

Leak testing components:
Lithium battery electrolyte filling chambers
Fuel cell bipolar plates/stack sealing
Hydrogen storage tank valves and pipelines

3. Medical and Pharmaceutical Industry

Leak testing components:
Sterile packaging (vials, prefilled syringes)
Vacuum freeze dryers (lyophilizers)
Medical catheters/implant device packaging

4. Automotive Industry

Leak testing components:
New energy vehicle battery pack sealing
High-pressure fuel system pipelines (for hydrogen fuel cell vehicles)

5. Scientific Research and High-End Manufacturing

Leak testing components:
Particle accelerator vacuum pipelines
Spacecraft fuel tanks (satellites, rockets)
Superconducting equipment cooling systems
