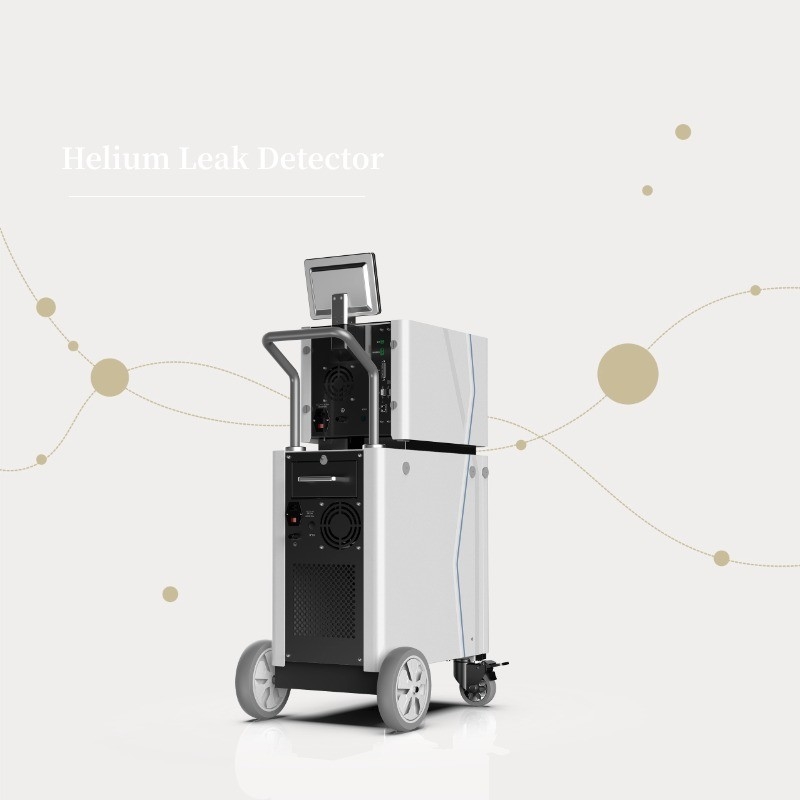

SFJ-16D Highly Sensitive Helium Leak Testing Equipment Vaccum Helium Leak Detector

  • SFJ-16D Highly Sensitive Helium Leak Testing Equipment Vaccum Helium Leak Detector
  • SFJ-16D Highly Sensitive Helium Leak Testing Equipment Vaccum Helium Leak Detector
  • SFJ-16D Highly Sensitive Helium Leak Testing Equipment Vaccum Helium Leak Detector
  • SFJ-16D Highly Sensitive Helium Leak Testing Equipment Vaccum Helium Leak Detector
Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16D
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Helium Leak Detector Leak Detection Port DN25KF
User Interface 7inch Color Touch Screen Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 2.5*10-9 Pa.m3/s
Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s I/O Input Output Interface 8 Inputs, 8 Outputs
High Light

Testing Equipment Helium Leak Detector

,

Vaccum Helium Leak Detector
Leave a Message
Product Description

Introduction of Helium Leak Detector:



If you are working with systems that require leak-tightness, you need a reliable method to detect and locate small leaks. Helium Leak Detection is a widely used technique that can help you achieve that. Helium Leak Detection works by introducing helium gas into a sealed container or system. If there is a leak in the system, helium will escape through the leak and into the surrounding area. The mass spectrometer will detect the presence of helium in the surrounding area and pinpoint the location of the leak.



Technical Parameters of Helium Leak Detector:



SFJ-16D Highly Sensitive Helium Leak Testing Equipment Vaccum Helium Leak Detector

Product Name

Helium Leak Detector
Detection Method Helium Mass Spectrometer
Leak Detection Port DN25KF
Leak Rate Display Numbers, Bar Charts, Graphs
Response Time(s) <1s
User Interface 7inch Color Touch Screen
Operating temperature 0~40°C
Max Allowable Leak Detection Pressure (Pa) 1800Pa
Communication Interface RS232/485, LAN
Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 2.5*10 -9 Pa.m3/s
Mini Leak Detection Rate(Pa.m3/s)/Vacuum Mode 5.0*10-13 Pa.m3/s
Startup Time (min) ≤1.58
Backing Pumps Scroll Vacuum Pump
Diamension 755*467*1180mm
Power Supply 220V, 50Hz/60Hz
Language Chinese/English





Applications of Helium Leak Detector:



Battery: In the energy industry, helium leak detector is used to test the integrity of the battery pack, battery housing, and even pouches and cells to prevent leaks and ensure safety.



Aerospace Applications
Helium leak detector is also widely used in the aerospace industry for various applications. Some of the most common aerospace applications of helium leak detection include:



Leak testing of rocket engines and fuel systems


Testing of vacuum systems used in space probes and satellites


Leak testing of aircraft fuel tanks and hydraulic systems


Testing of hermetic seals on electronic components used in spacecraft


Helium leak detector is preferred in aerospace applications because it is highly sensitive and accurate, which is critical for ensuring the safety and reliability of aerospace equipment. It is also non-reactive and does not leave any residue, which is important for ensuring the cleanliness of space probes and satellites.



Support and Services:



Our Product Technical Support and Services for the Helium Leak Detector include:



Online Resources: Access our comprehensive online library of manuals, FAQs, and troubleshooting guides designed to help you understand and operate your Helium Leak Detector effectively.



Software Updates: Keep your Helium Leak Detector up-to-date with the latest software enhancements and performance improvements by downloading the latest firmware from our support portal.



Technical Assistance: Our skilled team of technical support engineers is available to provide expert advice and assistance with any questions or issues you may encounter with your Helium Leak Detector.



Training Services: We offer specialized training programs to help you and your team get the most out of your Helium Leak Detector, covering operation, maintenance, and best practices for leak detection.





Parts and Accessories: We supply a full range of genuine parts and accessories specifically designed for the Helium Leak Detector to maintain its performance and extend its service life.



SFJ-16D Highly Sensitive Helium Leak Testing Equipment Vaccum Helium Leak Detector 0

Methods of Helium Leak Detection (Helium Leak Detector)

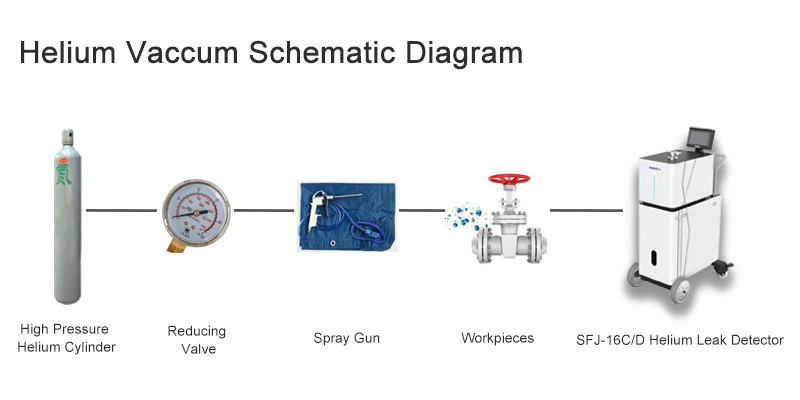

Helium Vacuum Method

SFJ-16D Highly Sensitive Helium Leak Testing Equipment Vaccum Helium Leak Detector 1Helium Hood Method



SFJ-16D Highly Sensitive Helium Leak Testing Equipment Vaccum Helium Leak Detector 2



Negative Pressure Method

SFJ-16D Highly Sensitive Helium Leak Testing Equipment Vaccum Helium Leak Detector 3



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

SFJ-16D Highly Sensitive Helium Leak Testing Equipment Vaccum Helium Leak Detector 4





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

SFJ-16D Highly Sensitive Helium Leak Testing Equipment Vaccum Helium Leak Detector 5

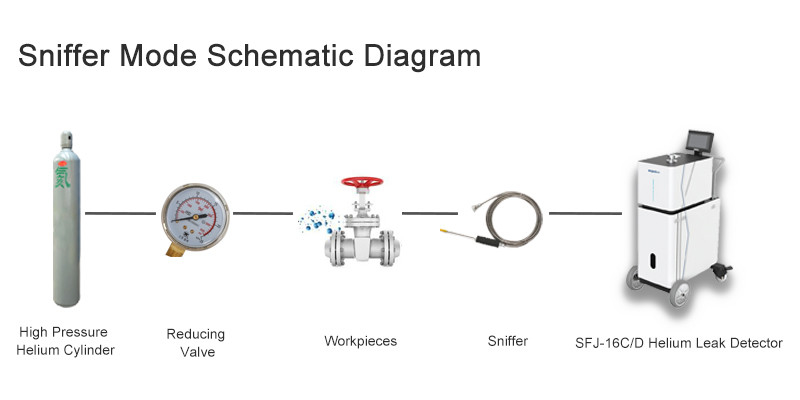

Sniffer Method

SFJ-16D Highly Sensitive Helium Leak Testing Equipment Vaccum Helium Leak Detector 6

SFJ-16D Highly Sensitive Helium Leak Testing Equipment Vaccum Helium Leak Detector 7
