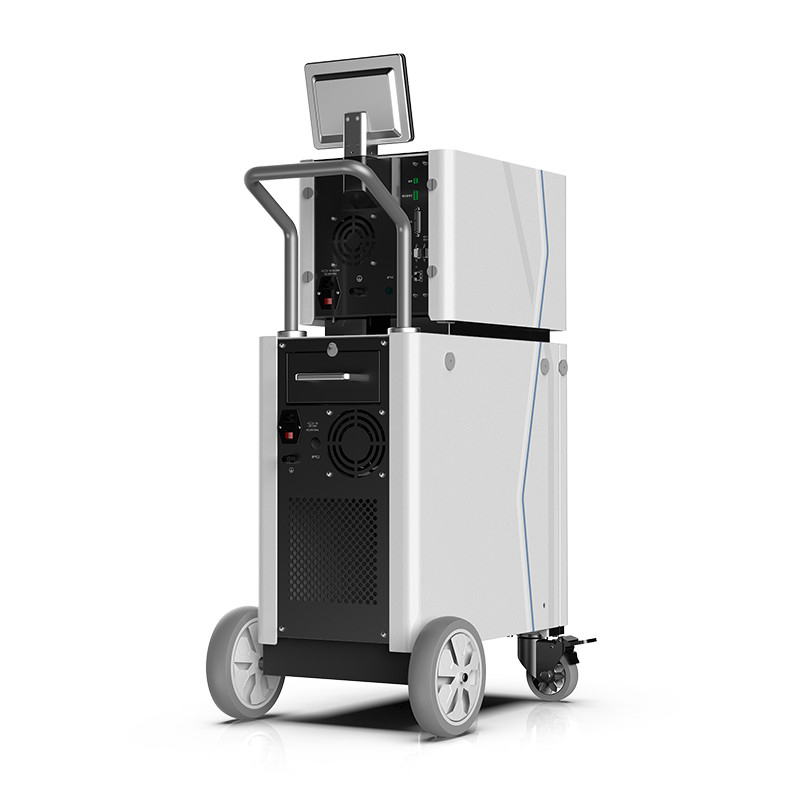

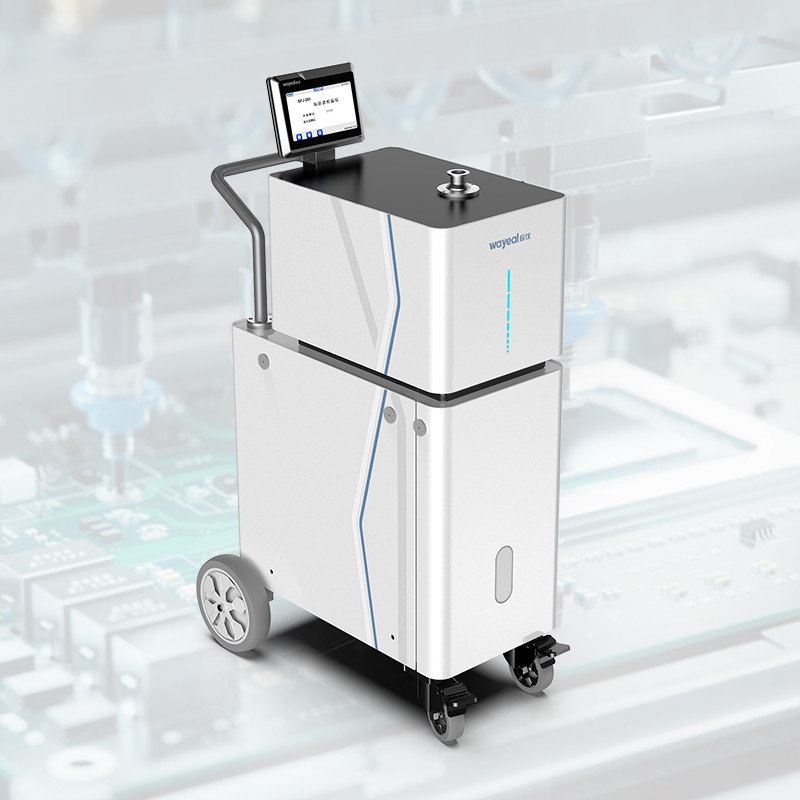

SFJ-16D Mobile Vaccum Helium Mass Spectrometer Leak Detector

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16C
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leak Detection Port DN25KF User Interface 7inch Color Touch Screen
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 2.5*10-9 Pa.m3/s Operating Temperature 0~40°C
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching Detectable Quality 2, 3, 4 (H2, He3, He4)
Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s I/O Input Output Interface 8 Inputs, 8 Outputs
High Light

Vaccum Spectrometer Leak Detector

,

Helium Mass Spectrometer Leak Detector

,

Spectrometer Leak Detector

Leave a Message
Product Description

Introduction of Helium Leak Detector:

Helium mass spectrometer leak detection is an instrument commonly used to detect and locate small leaks. It typically uses a vacuum chamber in which a sealed container filled with helium is placed. Helium leaks out of the container, and the rate of the leak is detected by a mass spectrometer.





Technical Parameters of Helium Leak Detector:



SFJ-16D Mobile Vaccum Helium Mass Spectrometer Leak Detector Price

Product Name

Helium Leak Detector

Detection Method Helium Mass Spectrometer
Leak Detection Port DN25KF
Leak Rate Display Numbers, Bar Charts, Graphs
Response Time(s) <1s
User Interface 7inch Color Touch Screen
Operating temperature 0~40°C
Max Allowable Leak Detection Pressure (Pa) 1800Pa
Communication Interface RS232/485, LAN
Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 2.5*10 -9 Pa.m3/s
Mini Leak Detection Rate(Pa.m3/s)/Vacuum Mode 5.0*10-13 Pa.m3/s
Startup Time (min) ≤1.58
Backing Pumps Scroll Vacuum Pump
Diamension 755*467*1180mm
Power Supply 220V, 50Hz/60Hz
Language Chinese/English


Applications of Helium Leak Detector:



Aerospace: Ensuring the integrity of fuel systems, oxygen supply lines, and other critical components is paramount in aerospace applications.



Automotive: In the automotive industry, helium leak testing is used for testing fuel tanks, radiators, air-conditioning systems.



Medical Devices: Ensuring the sterility and integrity of medical implants, surgical instruments, and other devices is crucial, making helium leak testing an ideal choice.



Support and Services of Helium Leak Detector:



Installation Assistance: Guidance through the setup process to ensure your leak detector is installed correctly and functioning optimally right from the start.



Operational Training: Comprehensive training sessions for operators to become proficient in using the device, understanding its features, and interpreting results accurately.



Maintenance Support: Scheduled maintenance services to keep your device in top condition, as well as recommendations for preventive care and maintenance best practices.



Troubleshooting Help: Expert assistance to diagnose and resolve issues that may arise during the operation of your helium leak detector, minimizing downtime and maintaining productivity.



Software Updates: Regular updates to the device's software to ensure you have access to the latest features, improvements, and security enhancements.



Repair Services: We offer repair services to restore your device to its full functionality as quickly as possible.



Parts Replacement: Access to genuine replacement parts to ensure the longevity and reliability of your helium leak detector.



Technical Documentation: Provision of detailed documentation, including user manuals, technical specifications, and troubleshooting guides to support the use of your helium leak detector.



SFJ-16D Mobile Vaccum Helium Mass Spectrometer Leak Detector 0

SFJ-16D Mobile Vaccum Helium Mass Spectrometer Leak Detector 1



Methods of Helium Leak Detection (Helium Leak Detector)



Helium Vacuum Method

SFJ-16D Mobile Vaccum Helium Mass Spectrometer Leak Detector 2Helium Hood Method



SFJ-16D Mobile Vaccum Helium Mass Spectrometer Leak Detector 3



Negative Pressure Method

SFJ-16D Mobile Vaccum Helium Mass Spectrometer Leak Detector 4



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

SFJ-16D Mobile Vaccum Helium Mass Spectrometer Leak Detector 5





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

SFJ-16D Mobile Vaccum Helium Mass Spectrometer Leak Detector 6





Sniffer Method

SFJ-16D Mobile Vaccum Helium Mass Spectrometer Leak Detector 7

SFJ-16D Mobile Vaccum Helium Mass Spectrometer Leak Detector 8
