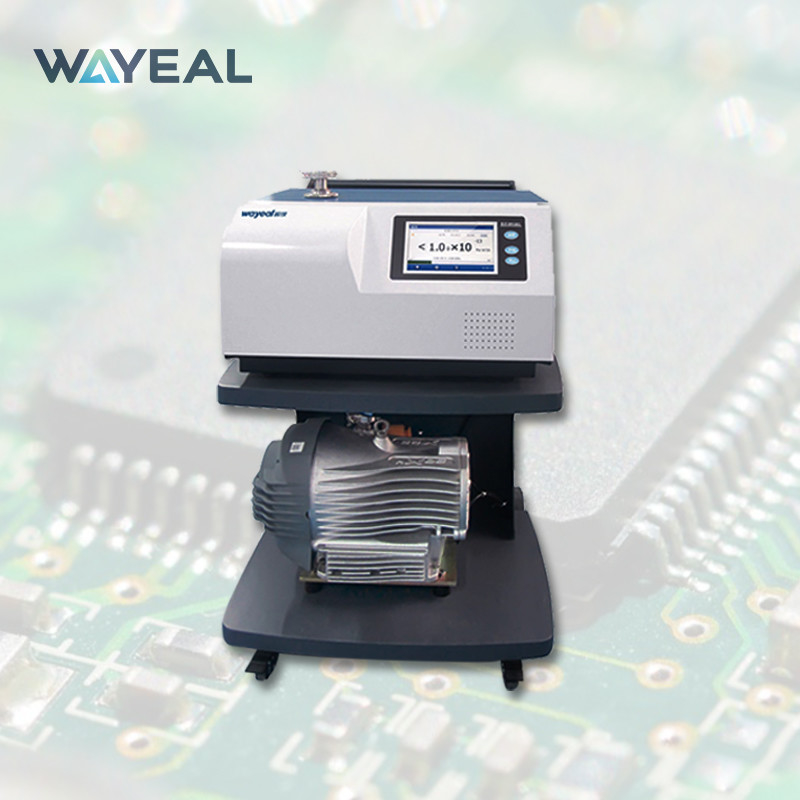

SFJ-231D Leak Detect System Helium Leak Detector With Oil Less Vaccum Pump

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-231D
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Product Name Helium Leak Detector Language Chines/English
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 5.0*10-9 Pa.m3/s Detection Method Helium Mass Spectrometer
Operating Temperature 0~40°C Leak Detection Port DN25KF
High Light

SFJ-231D Helium Leak Detector

,

SSFJ-231D Leak Detect System

,

Oil less Vaccum Pump Leak Detector

Leave a Message
Product Description

Introduction of Helium Leak Detector



Helium Leak Detector



Mobile helium leak detectors designed to meet the requirements of the most demanding industrial leak detection applications. Providing fast, accurate and repeatable test results, test flexibility and high sensitivity in a low-maintenance design, it is ready to tackle the toughest leak detection operations that industry may face. The SFJ-231D provides fast, accurate results for any application, from leak detection of large vessels and systems to all-weather, high-cycle, repeatable component testing in the toughest industrial environments.





Technical Parameters of Helium Leak Detector:



Product Name

Helium Leak Detector

Detection Method

Helium Mass Spectrometer

Leak Detection Port

DN25KF

Leak Rate Display

Numbers, Bar Charts, Graphs

Response Time(s)

<1s

User Interface

7inch Color Touch Screen

Operating temperature

0~40°C

Max Allowable Leak Detection Pressure (Pa)

1500Pa

Communication Interface

RS232/485, LAN

Detectable Quality

2, 3, 4 (H2, He-3, He-4)

Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode

5.0*10 -9 Pa.m3/s

Mini Leak Detection Rate(Pa.m3/s)/Vacuum Mode

5.0*10-13 Pa.m3/s

Startup Time (min)

≤2

Diamension

592*498*370mm

Power Supply

220V, 50Hz/60Hz

Language

Chinese/English





Applications of Helium Leak Detector:



Automobile Industry: Helium leak detectors have the general advantage of helium leak detection in automotive evaporator, cooler, and compressor leak detection, featuring simple operation, fast work pace, and low false positive rate.



Power Plants: Leak detectors are mainly used to detect leaks in the internal vacuum system of the turbine and the condensate tank, because if there are leaks in each link, it will increase the cost of production, so leak detection in power plants is very important in actual production. Helium leak detectors are widely used in the field of leak detection in power plants.



In the new energy field, helium leak detector is mainly applied to lithium battery cover, core, module, water-cooled board, PACK package, 3C, hydrogen energy and other scenes.





SFJ-231D Leak Detect System Helium Leak Detector With Oil Less Vaccum Pump 0



Methods of Helium Leak Detection (Helium Leak Detector)



Helium Vacuum Method

SFJ-231D Leak Detect System Helium Leak Detector With Oil Less Vaccum Pump 1Helium Hood Method



SFJ-231D Leak Detect System Helium Leak Detector With Oil Less Vaccum Pump 2



Negative Pressure Method

SFJ-231D Leak Detect System Helium Leak Detector With Oil Less Vaccum Pump 3



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

SFJ-231D Leak Detect System Helium Leak Detector With Oil Less Vaccum Pump 4





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

SFJ-231D Leak Detect System Helium Leak Detector With Oil Less Vaccum Pump 5





Sniffer Method

SFJ-231D Leak Detect System Helium Leak Detector With Oil Less Vaccum Pump 6
