Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
CE
Model Number:
SFJ-231
Introduction of Helium Leak Detector

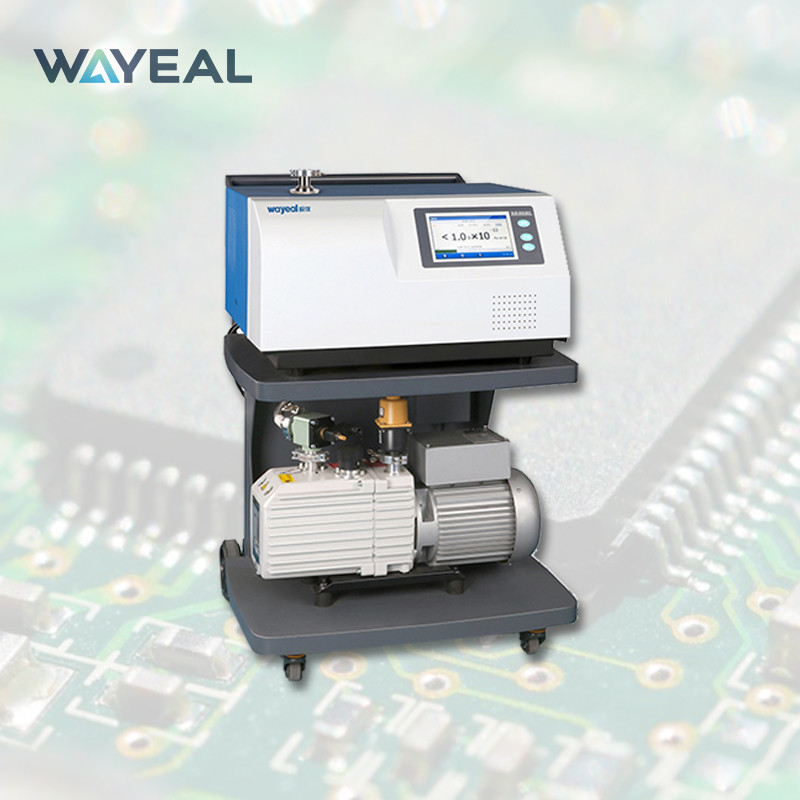

Helium Leak Detector
Helium leak detector is based on the principle of mass spectrometry, using helium as an exploratory gas, to quickly locate and quantitatively detect the leakage of various containers that need to be sealed. Since helium is an inert gas, it is non-polluting to the atmosphere and safe to use; with its small atomic weight and low viscosity, helium is easy to penetrate through any leakage that may be present, and has high detection sensitivity, speed, and a wide range of applications.
Technical Parameters of Helium Leak Detector:
|
Product Name |
Helium Leak Detector |
|---|---|
|
Detection Method |
Helium Mass Spectrometer |
|
Leak Detection Port |
DN25KF |
|
Leak Rate Display |
Numbers, Bar Charts, Graphs |
|
Response Time(s) |
<1s |
|
User Interface |
7inch Color Touch Screen |
|
Operating temperature |
0~40°C |
|
Max Allowable Leak Detection Pressure (Pa) |
1500Pa |
|
Communication Interface |
RS232/485, LAN |
|
Detectable Quality |
2, 3, 4 (H2, He-3, He-4) |
|
Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode |
5.0*10 -9 Pa·m3/s |
|
Mini Leak Detection Rate(Pa·m3/s)/Vacuum Mode |
5.0*10-13 Pa·m3/s |
|
Startup Time (min) |
≤2 |
|
Diamension |
592*498*370mm |
|
Power Supply |
220V, 50Hz/60Hz |
|
Language |
Chinese/English |
Applications of Helium Leak Detector:
Helium mass spectrometry has been widely used in the field of vacuum leak detection technology, the advantages of this method are: high sensitivity of leak detection, fast response time of the instrument, high diffusion speed of helium molecules in the high vacuum environment of the instrument; so helium leak detector has been widely used in many fields.
New energy: Li-ion battery cover, core, module, water-cooled board, PACK package, 3C, hydrogen energy, etc.
Semiconductor: packaging, chip manufacturing, vacuum machine, epitaxial wafer, wafer, connector, filter, photovoltaic, etc.
Others: Aerospace, military, marine, etc.
Methods of Helium Leak Detection (Helium Leak Detector)
Helium Vacuum Method
Helium Hood Method
Negative Pressure Method
Vacuum Chamber Helium Leak Detection and Recovery System (external filling)
Sniffer Method
