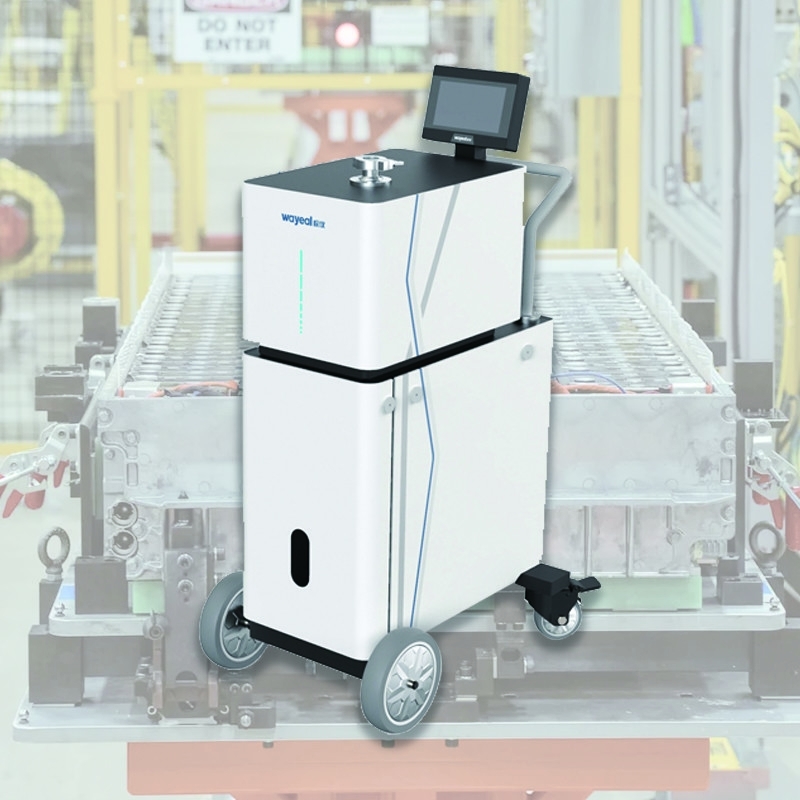

360 Degree Rotating LCD Touch Screen Helium Leak Detector DN25KF Leak Detection Port

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16C
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Temperature 0~40°C MES Interface Standard
Start Time (min) ≤1.58 Minutes Response Time(s) <1s
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching Product Name Helium Leak Detector
Detection Method Vacuum Mode And Sniffer Mode Max Allowable Leak Detection Pressure (Pa) 1800Pa
High Light

LCD Touch Screen Helium Mass Spectrometer

,

360 Degree Rotating Helium Leak Detector

,

Power Industry Helium Leak Testing Machine

Leave a Message
Product Description

Product Description:



Helium Leak Detector

Helium leak detectors are sophisticated instruments used to identify and locate small leaks in various systems by detecting the presence of helium. Helium, a light, inert gas, is ideal for this purpose due to its small atomic size, which allows it to easily pass through tiny leaks, and its rare presence in the ambient atmosphere, which reduces background noise in measurements.  It is equipped with a 7-inch color touch screen user interface that provides easy access to the device’s settings and features.

The Helium Leak Detector is a reliable and efficient way to monitor and detect leaks in any kind of vaccum system. With its superior detection capabilities and easy-to-use user interface, it is the perfect solution for monitoring helium leaks in industrial vacuum systems.



Technical Parameters:


DN25KF Leak Detection Port 360°C Rotating LCD Touch Screen Helium Leak Detector
Parameter Description
MES Interface Standard
Communication Interface RS232/485, LAN
Response Time(s) <1s
Language Chinese/English
Start Time (min) ≤1.58min
Operating temperature 0~40°C
Detectable Quality 2, 3, 4 (H2, He3, He4)
Max Allowable Leak Detection Pressure (Pa) 1800Pa
Detection Method Helium Leak Detection
Diamension 755*467*1180mm

Backing Pumps

Rotary Vane Vacuum Pump

I/O Input/ Output Interface

8 Inputs, 8 Outputs

Specifications of Leak Detection Port

DN25 KF



Features:



1. High accuracy and stability

2. Fast response and detection

3. High efficiency and low maintenance cost

4. Easy to operate and maintain



Application:



New energy industry: Lithium Batte Cover Plate, BatteCell, Module, Water Cold Plate,Pack, 3C, Hydrogen Energy, etc



Power industry: Bushing, fuse cylinder, lightning arrester, density meter, dynamicseal, etc

Support and Services:

Helium Leak Detector Technical Support and Service

We provide technical support and service for our Helium Leak Detector products. Our team of engineers and technicians are highly experienced in helium leak detection technology and can help you with any questions you may have. We provide services such as:



1. On-site support for installation and maintenance of your helium leak detector

2. Online video call or phone call technical support for troubleshooting and repair

3. Product training to help you get the most out of your detector

4. Regular maintenance and calibration services to keep your detector in top condition

5. Repair services for any damages or malfunctions

6. Our team is committed to providing excellent customer service and will do our best to get you the help you need. If you have any questions or concerns, please don’t hesitate to contact us.





Methods of Leak Detection



Negative Pressure Method

360 Degree Rotating LCD Touch Screen Helium Leak Detector DN25KF Leak Detection Port 0



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

360 Degree Rotating LCD Touch Screen Helium Leak Detector DN25KF Leak Detection Port 1





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

360 Degree Rotating LCD Touch Screen Helium Leak Detector DN25KF Leak Detection Port 2





Sniffer Method

360 Degree Rotating LCD Touch Screen Helium Leak Detector DN25KF Leak Detection Port 3

360 Degree Rotating LCD Touch Screen Helium Leak Detector DN25KF Leak Detection Port 4
