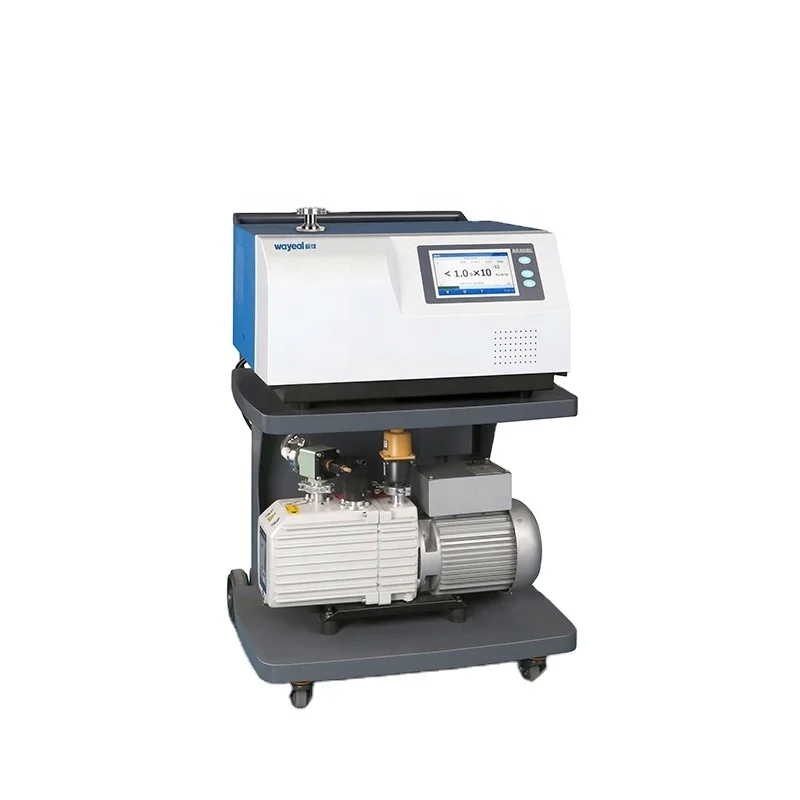

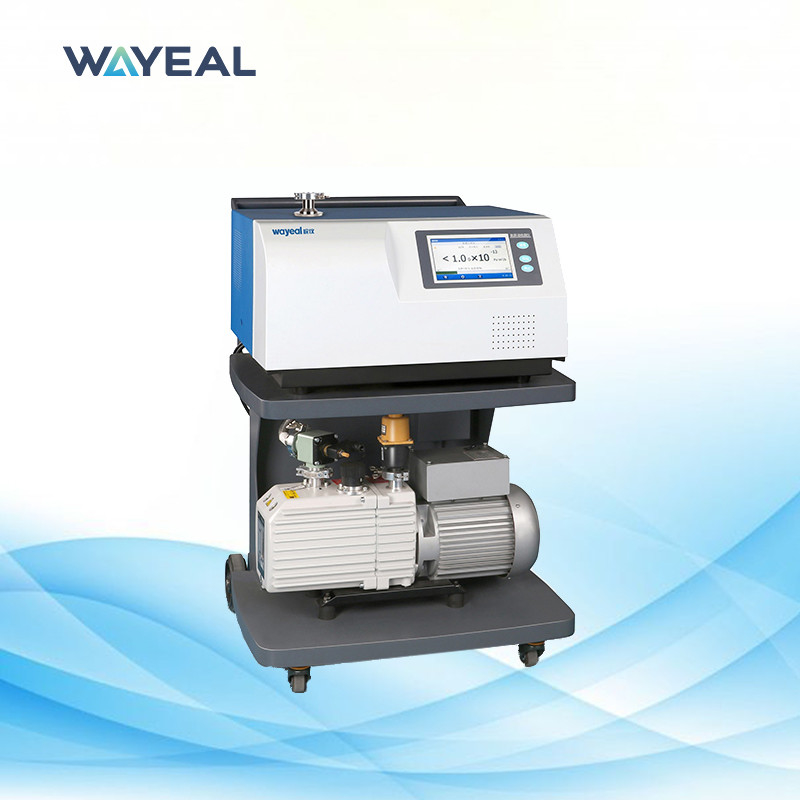

Rapid Respone Time DN25KF Vacuum Helium Mass Spectrometer Leak Detector

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-231
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leak Rate Display Numbers, Bar Charts, Graphs Start Time (min) ≤2
MES Interface Standard Max Allowable Leak Detection Pressure (Pa) 1500
Leak Detection Port DN25KF Product Name Helium Leak Detector
Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s Response Time(s) <1
High Light

helium detector for detecting leaks

,

DN25KF Vacuum helium leak tester

,

13 Pa.m3/s Vacuum helium leak tester

Leave a Message
Product Description

Introduction of Helium Leak Detector:



Helium Leak Detector - The Perfect Solution for Leak Detection



The helium leak detector is the perfect solution for detecting leaks, especially in demanding applications. This superior leak detector offers superior leak detection capabilities, with a minimum leak detection rate of 5*10-13 Pa·m3/s in vaccum mode. It is also capable of detecting different qualities of helium, such as 2, 3, and 4 (H2, He3, He4). This device can operate in temperatures from 0 to 40°C, and has a start time of less than 2 minutes and a response time of less than 1s.

This helium leak detector is ideal for a wide range of applications, such as industrial, automotive, new energy, refrigeration, home appliance and other industries . It is a reliable and cost-effective solution for leak detection, providing a fast and accurate solution to detect leaks.



Technical Parameters of Helium Leak Detector:



Rapid Respone Time Vaccum Helium Mass Spectrometer Leak Detector
Product Name Helium Leak Detector
Leak detection port DN25KF
Response Time(s) <1
User Interface 7inch Color Touch Screen
Detectable Quality 2, 3, 4 (H2, He3, He4)
Leak rate display Numbers, Bar Charts, Graphs
Diamension 645*678*965mm
Start Time (min) ≤2
Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode 5*10-9  Pa·m3/s
Mini Leak Detection Rate(Pa·m3/s)/Vaccum Mode 5*10-13 Pa·m3/s
Maximum Allowable Leak Detection Pressure 1500Pa
Ion Source 2pcs, Iridium coated yttrium oxide, automatic switching
I/O Input Output Interface 8 inputs, 8 outputs
Communication Interface RS232/485, USB*2
MES Interface Standard
Operating Temperature 0~40°C
Language Chinese/English





Applications of Helium Leak Detector:



Wayeal's SFJ-231 helium leak detector is the ideal choice for you. This product is perfect for various vacuum detection of automotive refrigeration industry, automotive fuel industry, automotive new energy, hydrogen cylinder industry, hydrogen energy components, home refrigeration industry, helium recovery systems.



Support and Services:

Helium Leak Detector Technical Support and Service

We provide technical support and services for our helium leak detector products. Our technical engineer could provide remote or onsite trianing, installation, maintenance and repair services to ensure that you get the most out of your helium leak detector.





Methods of Helium Leak Detection



Negative Pressure Method

Rapid Respone Time DN25KF Vacuum Helium Mass Spectrometer Leak Detector 0



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

Rapid Respone Time DN25KF Vacuum Helium Mass Spectrometer Leak Detector 1





Sniffer Method

Rapid Respone Time DN25KF Vacuum Helium Mass Spectrometer Leak Detector 2

Rapid Respone Time DN25KF Vacuum Helium Mass Spectrometer Leak Detector 3Rapid Respone Time DN25KF Vacuum Helium Mass Spectrometer Leak Detector 4

Rapid Respone Time DN25KF Vacuum Helium Mass Spectrometer Leak Detector 5
