IC6210 Integrated Ion Chromatography Instrument With Conductivity Detector

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number IC6210
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 20 days
Payment Terms L/C, T/T
Supply Ability 30 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name PEEK Pump Ion Chromatography Instruments Detector Conductivity Dete Tor
Cell Volumn ≤0.6µL Detection Range 0~15000μs/cm
Baseline Noise ≤0.1%FS Baseline Drift ≤0.5%FS
High Light

IC6210 Ion Chromatography Instrument

,

Ion Chromatography Instrument With Conductivity Detector

Leave a Message
Product Description

IC6210 Integrated Ion Chromatography Instruments with Conductivity Detector



Product Introduction



Ion chromatography, a form of liquid chromatography, measures concentrations of ionic species by separating them based on their interaction with a resin. Ionic species separate differently depending on species type and size. Sample solutions pass through a pressurized chromatographic column where ions are absorbed by column constituents. As an ion extraction liquid, known as eluent, runs through the column, the absorbed ions begin separating from the column. The retention time of different species determines the ionic concentrations in the sample.



Product Features

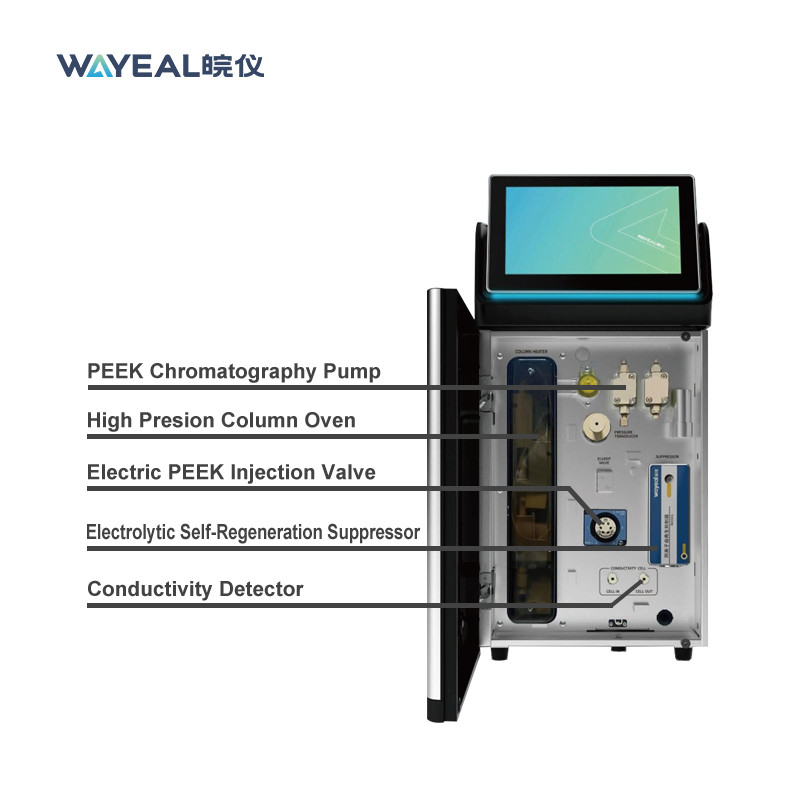

1. Ideal model for high efficiency, high sensitivity, high reliability ion chromatography; dual system one machine realizes yin and cation simultaneously;
2. Conductance and electrochemical detectors meet the detection requirements of different substances;
3. Can realize two-dimensional ion chromatography (valve switching) and post-column chemical derivatives
4. Dual system simultaneously detection design allows customers to maximize efficiency, further shorten detection time

5. Double pump, column temperature box, modular design of the crash generator, the user can choose the required system configuration;
6. It can be equipped with high-end double pump double system detection, and can also customize single pump single system detection according to customer needs, and personalize your chromatography solution.



Product Parameter

IC6210 Integrated Ion Chromatography Instruments with Conductivity Detector
System Parameter
Qualitative repeatability ≤0.5%
Quantitative repeatability ≤1.0%
Pump System
Pump flow rate (0.001~10.000) mL/min
Pump head pressure resistance (0 ~ 35) MPa
Flow rate setting error <0.1%
Flow rate stability <0.1%
Pressure display accuracy 0.001Mpa
Pressure pulsation <0.5%
Electrical conductivity detector
Baseline noise ≤0.1%FS
Baseline drift ≤0.5%FS
Minimum detection concentration (Cl) ≤ 0.0002ug/mL
Minimum detectable concentration (Li) ≤ 0.0001ug/mL
Conductivity cell volume ≤ 0.6μL
Conductivity detection range 0-15000μS/cm
Detector resolution 0.00238nS/cm
Conductivity cell temperature setting error ±0.01°C
Temperature compensation range 1.5-3.0%
Constant current source range 0-500mA in 0.1mA increments
Column Oven room temperature +5℃~85℃
Temperature range +5°C~85°C
Temperature control stability ≤ 0.1℃
Autosampler
Sample Vials ≥ 120 Vials (1.5ml standard sample bottle)
Repeatability

Full-loop injection <0.3% RSD,

Partial injection <0.5% RSD,

Nondestructive injection <1 % RSD (injection volume >5uL)

Syringe 500ul; optional; 250ul, 1000ul, 2500ul
Quantification ring specifications 100ul; optional: 20ul, 50ul, 200ul
Linearity >0.999
Cross-contamination <0.01%
Eluent Generator
Flow rate range 0.001 to 3.000 ml/min
Concentration range KOH, MSA - 0.1 ~ 100.0mM
Concentration accuracy 0.1mM
Electrolyte original concentration 25% KOH/MSA
Electrolyte volume 1000mL
Maximum working pressure 21MPa (3000psi)
Gradient accuracy 1.5



Industry Application



It can be used for the detection and analysis of anions (e.g. F- , Cl- , Br- , BrO3- , NO3- , NO2- , SO42- , PO43- , disinfection by-products, etc.) and cations (e.g. Li+ , Na+ , NH4+ , K+ , Mg2+ , Ca2+ , etc.).
