Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
ISO, CE
Model Number:
IC6200

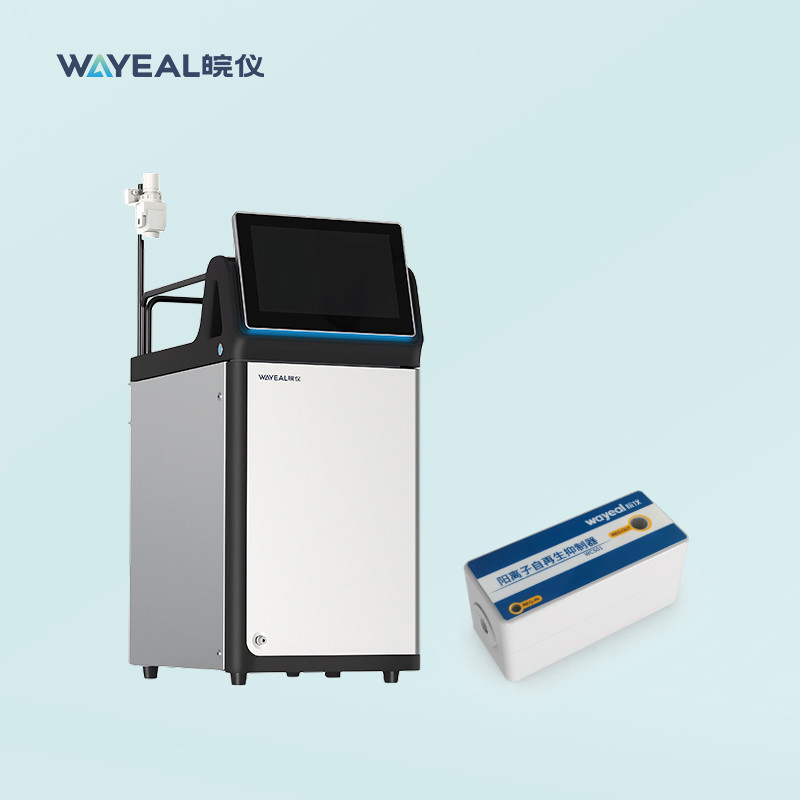

120 Vials Autosampler PEEK Pump Ion Chromatography Instruments
Description of Ion Chromatography Instrument
Ion chromatography is used for water chemistry analysis. Ion chromatographs are able to measure concentrations of major anions, such as fluoride, chloride, nitrate, nitrite, and sulfate, as well as major cations such as lithium, sodium, ammonium, potassium, calcium, and magnesium in the parts-per-billion (ppb) range. Concentrations of organic acids can also be measured through ion chromatography.
Features of Ion Chromatography Instrument
1. Ideal model for high efficiency, high sensitivity, high reliability ion chromatography; dual system one machine realizes yin and cation simultaneously;
2. Conductance and electrochemical detectors meet the detection requirements of different substances;
3. Can realize two-dimensional ion chromatography (valve switching) and post-column chemical derivatives;
4. Dual system simultaneously detection design allows customers to maximize efficiency, further shorten detection time;
5. Double pump, column temperature box, modular design of the crash generator, the user can choose the required system configuration;
6. It can be equipped with high-end double pump double system detection, and can also customize single pump single system detection according to customer needs, and personalize your chromatography solution.
Product Parameters of IC6200
| 120 Vials Autosampler PEEK Pump Ion Chromatography Instruments | |
| System Parameter | |
| Qualitative Repeatability | ≤0.5% |
| Quantitative Repeatability | ≤1% |
| Pump System | |
| Flow Rate | (0.001～10.000)mL/min |
| Pump Head Pressure Resistance | (0 ~ 35) Mpa |
| Flow Rate Setting Inaccuracy | <0.1% |
| Flow Stability | <0.1% |
| Pressure Display Accuracy | 0.01Mpa |
| Pressure Pulsation | <0.5% |
| Conductivity Detector | |
| Baseline Noise | ≤0.1%FS |
| Baseline Drift | ≤0.5%FS |
| Minimum Detectable Concentration (Cl) | ≤0.0002μg/mL |
| Minimum Detection Concentration (Li) | ≤0.0001μg/mL |
| Conductivity Cell Volume | ≤ 0.6μL |
| Conductivity Detection Range | 0-15000μS/cm |
| Detector Resolution | 0.00238nS/cm |
| Conductivity Cell Temperature Setting Error | ±0.01°C |
| Resolution of Conductivity Cell Temperature Display | 0.001°C |
| Suppressor | |
| Constant Current Source Range | 0-500mA in 0.1mA increments |
| Column Oven | |
| Temperature Range | Room temperature +5°C~85°C |
| Control Temperature Stability | ≤ 0.1°C |
| Autosampler | |
| Number of Sample Vials | ≥ 120 (1.5mL standard sample bottle) |
| Repeatability |
Full loop injection < 0.3% RSD, Partial injection < 0.5% RSD, Non-destructive injection < 1 % RSD (injection volume > 5μL) |
| Syringe Size | Standard: 500μL; optional; 250μL, 1000μL, 2500μL |
| Loop Size | Standard: 100μL; optional: 20μL, 50μL, 200μL |
| Linearity | >0.999 |
| Cross-contamination | <0.01% |
| Eluent Generator | |
| Flow Rate Range | 0.001 to 3.000mL/min |
| Eluent Concentration Range | KOH, MSA-0.1 to 100mM |
| Concentration Accuracy | 0.1mM |
| Original Concentration of Electrolyte | 25% KOH/MSA |
| Volume of Electrolyte | 1000mL |
| Maximum Working Pressure | 21Mpa (3000psi) |
| Gradient Accuracy | 1.5% |
Industry Application
Some typical applications of ion chromatography include:
