Infusion Pump Ion Chromatography Instrument For Iodine In Water Quality

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number IC6250
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 15 days
Payment Terms L/C, T/T
Supply Ability 30 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Ion Chromatograph For Water Quality Detection Application Environment Water Quality Testing
Power Supply 220V, 50~60Hz Flow Rate Range 0.001~3.000ml/min
Concentration Accuracy 0.1mM Max Working Pressure 21MPa(3000psi)
High Light

Infusion Pump Ion Chromatography Instrument

,

Iodine Detection Ion Chromatography Instrument

Leave a Message
Product Description

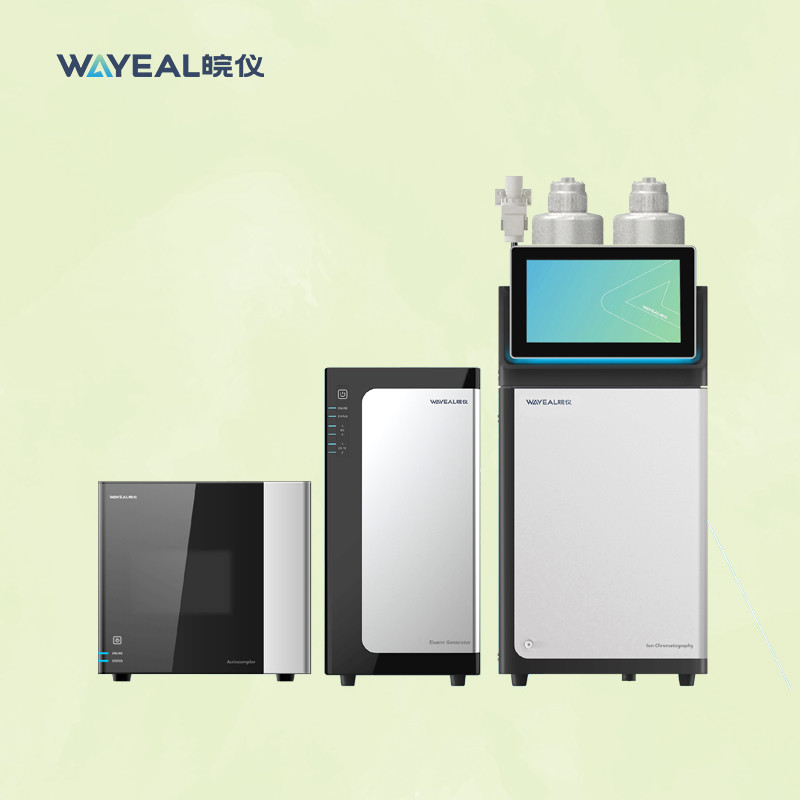

Infusion Pump Ion Chromatography Instruments for Detection of Iodine in Water Quality



Product Introduction



Ion chromatography is a form of liquid chromatography used to separate ions in aqueous solutions. Typically, IC analyzes anions such as fluoride, chloride, nitrite, bromide, nitrate, phosphate and sulfate. Ion chromatography can detect other ions as well. Chromate, perchlorate, and organic acids are examples.



Product Features



1. Intergrated apperance design, high brightness LCD full touch GUI controller


2. High degree of automation "One Key Rinse" and "One Key Maintenance" automatic maintenance function.


3. Higher intergration: Support optional parts upgrade to 2D system and multi-detector combination.


4. Full PEEK pump and electric injection valve.



5. Powerful and convenient chromatpgraphy workstation



6. High precision temperatur-controlled conductivity detector.





Product Parameter





In-line Eluent Generation Ion Chromatograph Instruments with Conductivity Detector

Qualitative Repeatability ≤0.05%
Quantitative Repeatability ≤0.3%
Pump System
Flow Rate (0.001~12.000) mL/min
Pump Head Pressure Resistance (0 ~ 40) MPa
Flow Rate Setting Inaccuracy <0.05%
Flow Stability <0.05%
Pressure Display Accuracy 0.001Mpa
Pressure Pulsation <0.5%
Conductivity Detector
Baseline Noise ≤0.05%FS
Baseline Drift ≤0.4%FS
Minimum Detectable Concentration (Cl) ≤ 0.0001ug/mL
Minimum Detection Concentration (Li) ≤ 0.00005ug/mL
Conductivity Cell Volume ≤ 0.6μL
Conductivity Detection Range 0-15000 μS/cm
Detector Resolution 0.00238nS/cm
Conductivity Cell Temperature Setting Error ±0.01°C
Resolution of Conductivity Cell Temperature Display 0.001°C

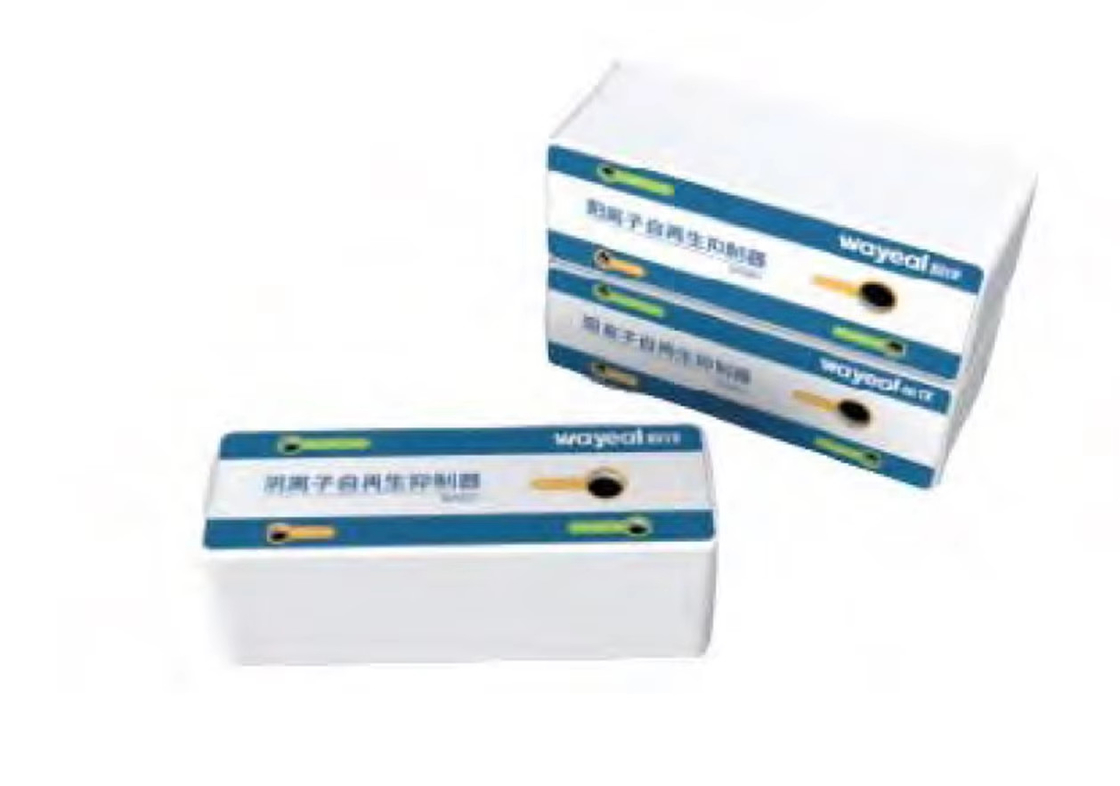

Suppressor
Constant Current Source Range 0-500mA in 0.1mA increments
Column Oven
Temperature Range Room temperature +5°C~85°C
Control Temperature Stability ≤ 0.1°C

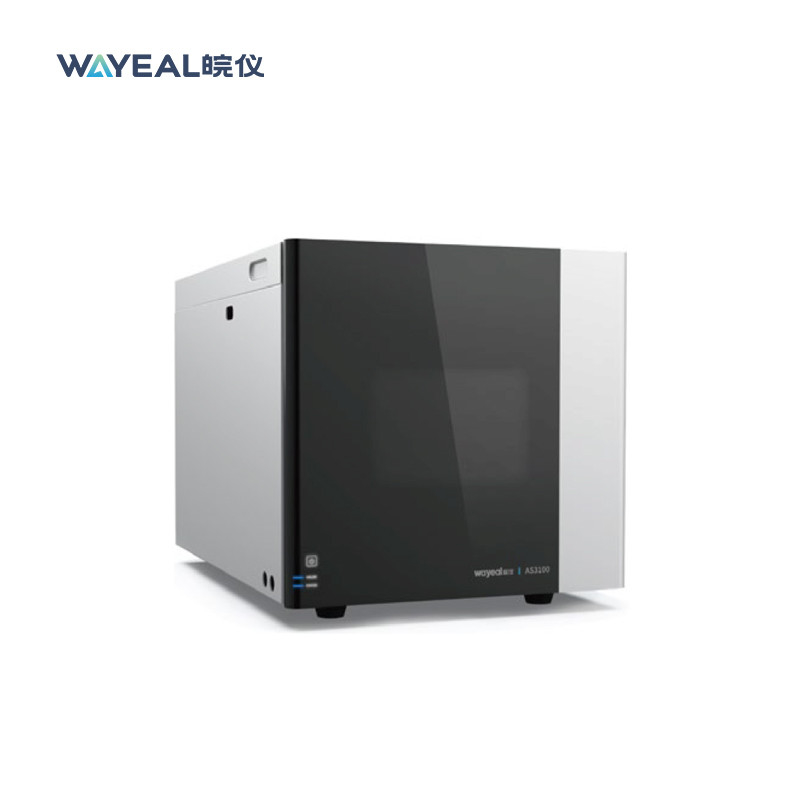

Autosampler
Number of Sample Vials ≥ 120 (1.5ml standard sample bottle)
Repeatability

Full loop injection < 0.3% RSD,

Partial injection < 0.5% RSD,

Non-destructive injection < 1 % RSD (injection volume > 5uL)

Syringe Size Standard: 500ul; optional; 250ul, 1000ul, 2500ul
Loop Size

Standard: 100ul; optional: 20ul, 50ul, 200ul

Linearity >0.999
Cross-contamination <0.01%

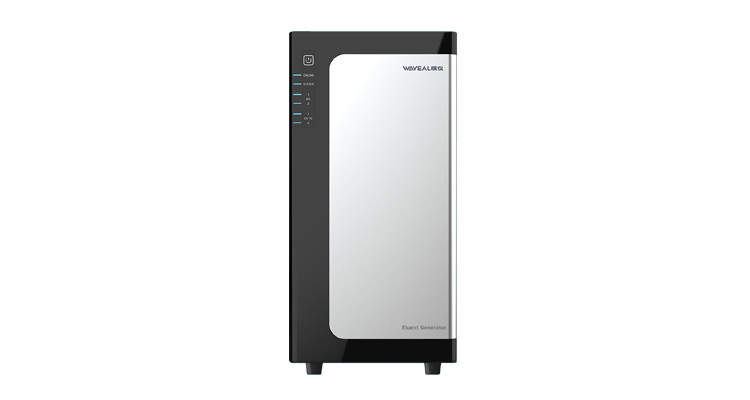

Eluent Generator


Flow Rate Range 0.001 to 3.000ml/min
Eluent Concentration Range KOH, MSA-0.1 to 100mM
Concentration Accuracy 0.1mM
Original Concentration of Electrolyte 25% KOH/MSA
Volume of Electrolyte 1000mL
Maximum Working Pressure 21MPa (3000psi)
Gradient Accuracy 1.5%







Industry Application



Application of ion chromatography in ambient air


1. Detection of anions, cations, organic acids, hexavalent chromium, ammonia and organic ammonia in particulate matter in ambient air.

2. Detection of anions and cations in atmospheric precipitation.
