Wayeal IC6210 Foods Beverages Ion Chromatography With Conductivity Detector

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number IC6210
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 15 days
Payment Terms L/C, T/T
Supply Ability 30 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Ion Chromatography Machine Application Pharmaceuticals, Clinical Studies
Power Supply 220V, 50~60Hz Qualitative Repeatability ≤0.5%
Pump Flow Rate 0.001~10.000 ML/min Sampling System Autosampler, 120 Vails
High Light

Beverages Ion Chromatography Instrument

,

Wayeal IC6210 Ion Chromatography Instrument

Leave a Message
Product Description

Wayeal IC6210 Foods and Beverages Use Ion Chromatography With Conductivity Detector



Product Introduction



Ion chromatography, a form of liquid chromatography, measures concentrations of ionic species by separating them based on their interaction with a chromatographic column stationary phase. Ionic species separate differently, depending on species type and size. Sample solutions pass through a pressurized chromatographic column where ions are retained by column constituents due to ionic interactions. As an ion extraction liquid, known as eluent, runs through the column, the retained ions begin separating from the column and eventually reach the detector where it produces a change in the signal which is represented by a peak in the chromatogram. Ions of interest can be identified, based on their retention time and quantitated, based on the detector’s response and standards to those ions.

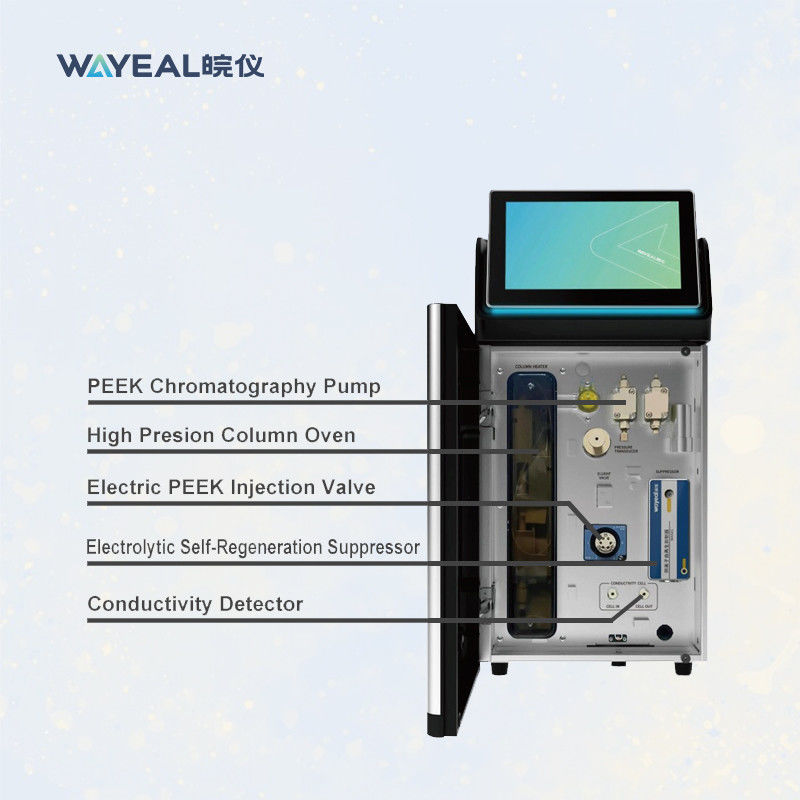

Product Features



1. Intergrated design and compact structure, minimizing connections between components


2. 7.0" high brightness LCD touch operation interface, synchronized with the chromatography workstation, clearly displays the working statusOne-button operation, the system can realize automatic cleaning after the analysis is completed to ensure the cleaning effect


3. One-touch maintenance": one-touch operation, the system can realize automatic maintenance of the instrument without manual operation, extending the service life of instrument.


4. Full PEEK pump and electric injection valve.



5. All-plastic non-metallic flow path



6. Electrolytic self-regenerating membrane suppressor



7. High precision temperatuer-controlled conductivity Detector





Product Parameter





Wayeal IC6210 Foods and Beverages Use Ion Chromatography With Conductivity Detector
System Parameter
Qualitative Repeatability ≤0.5%
Quantitative Repeatability ≤1.0%
Pump System
Flow Rate (0.001~10.000) mL/min
Pump Head Pressure Resistance (0 ~ 35) MPa
Flow Rate Setting Inaccuracy <0.1%
Flow Stability <0.1%
Pressure Display Accuracy 0.01Mpa
Pressure Pulsation <0.5%
Conductivity Detector
Baseline Noise ≤0.1%FS
Baseline Drift ≤0.5%FS
Minimum Detectable Concentration (Cl) ≤ 0.0002ug/mL
Minimum Detection Concentration (Li) ≤ 0.0001ug/mL
Conductivity Cell Volume ≤ 0.6μL
Conductivity Detection Range 0-15000 μS/cm
Detector Resolution 0.00238nS/cm
Conductivity Cell Temperature Setting Error ±0.01°C
Resolution of Conductivity Cell Temperature Display 0.001°C
Suppressor
Constant Current Source Range 0-500mA in 0.1mA increments
Column Oven
Temperature Range Room temperature +5°C~85°C
Control Temperature Stability ≤ 0.1°C
Autosampler
Number of Sample Vials ≥ 120 (1.5ml standard sample bottle)
Repeatability

Full loop injection < 0.3% RSD,

Partial injection < 0.5% RSD,

Non-destructive injection < 1 % RSD (injection volume > 5uL)

Syringe Size Standard: 500ul; optional; 250ul, 1000ul, 2500ul
Loop Size

Standard: 100ul; optional: 20ul, 50ul, 200ul

Linearity >0.999
Cross-contamination <0.01%

Eluent Generator


Flow Rate Range 0.001 to 3.000ml/min
Eluent Concentration Range KOH, MSA-0.1 to 100mM
Concentration Accuracy 0.1mM
Original Concentration of Electrolyte 25% KOH/MSA
Volume of Electrolyte 1000mL
Maximum Working Pressure 21MPa (3000psi)
Gradient Accuracy 1.5%







Industry Application



Some typical applications of ion chromatography include:

  • Drinking water analysis for pollution and other constituents

  • Determination of water chemistries in aquatic ecosystems

  • Analysis of residual limits in pharmaceuticals

  • Determination of additives and components in foods and beverages

  • Isolation of select proteins

  • Trace anions in organic solvents

  • Determination of ammonium, amines and other ions in industrial wastewater

  • Trace ion analysis in electronics
