Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
ISO, CE
Model Number:
SFJ-231

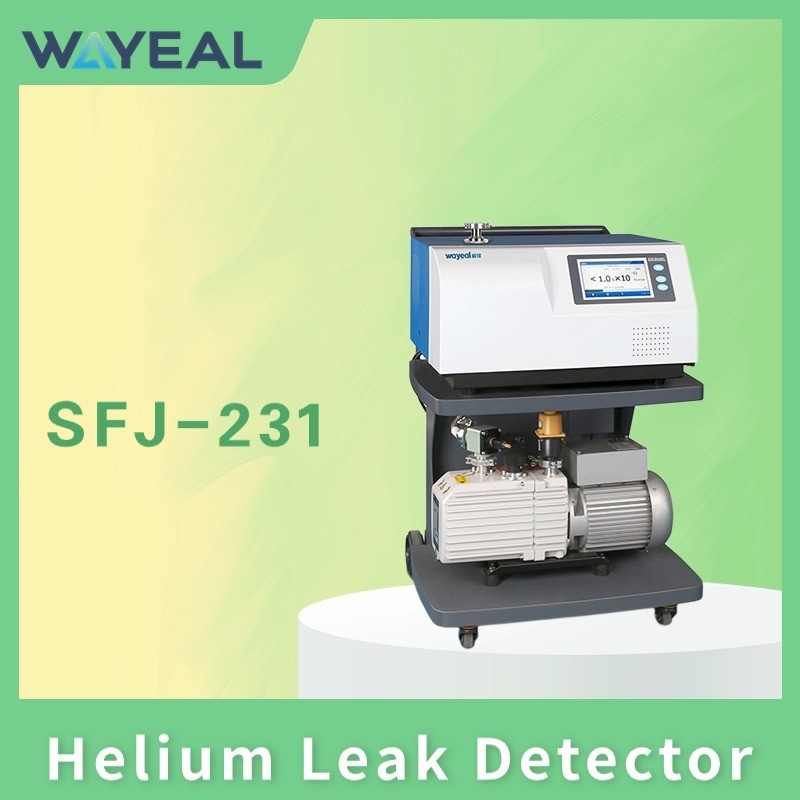

Wayeal SFJ-231 2 Ion Sources Helium Leak Detector Machine for Small Leaks Detection
Introduction of Helium Leak Detector
Helium leak testing is a method that is used to detect and locate leaks in many different industrial applications. This process involves pressurizing the system or having a component tested with a helium gas mixture. This is then followed by specialized helium leak detectors that are used to sense and measure the helium that escapes from any leaks. By analyzing the amount and concentration of helium, technicians are able to find the exact location of the leak.
Parameters of Helium Leak Detector
| Wayeal SFJ-231 2 Ion Sources Helium Leak Detector Machine for Small Leaks Detection | ||
Performance Indicators |
Minimum detectable leak rate (Pa·m3/s)/ vacuum mode |
5.0×10-13 |
| Minimum detectable leak rate (Pa·m3/s)/ sniffer mode |
5.0×10-9 | |
| Response time(s) | <1 | |
| Startup time(min) | ≤2 | |
| Leakage detection range (Pa·m3/s) |
5.0×10-13~1.0×10-3 | |
| Leakage rate display range (Pa·m3/s) |
1.0×10-12~1.0×10-3 | |
| Maximum allowable leak detection pressure(Pa) | 1330 | |
| Detectable quality | 2,3,4(H2 , He3, He4) | |
Basic Configuration |
Man-machine interface | 7 "color LCD Touch Screen |
| Ion source | 2pcs, iridium coated yttrium oxide, automatic switching | |
| I/O Input/output interface | Eight inputs and eight outputs | |
| Communication interface | RS232/485,USB*2 | |
| MES interface | Standard | |
| Physical size of instrument (W)×(D)×(H),mm |
645 x 678 x 965mm | |
| Specifications of leak detection port | DN25 KF | |
| Power Supply | AC220V,50HZ/60HZ | |
| Operating temperature | 0-40ºC | |
| Power | 1000W | |
| Display language | Both Chinese and English | |
| Leakage rate display | Figure, bar chart, curve chart | |
Optional Accessories of Helium Leak Detector

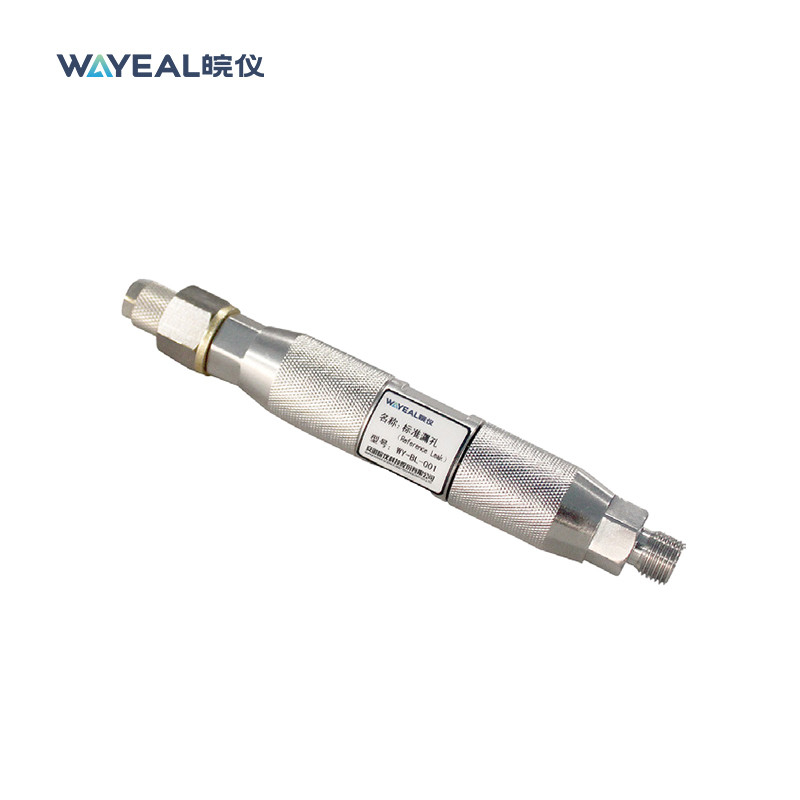

Spray probe, wireless remote control, 20 micron inlet filter, calibration leak, customized tooling, sniffer, leak detection chamber, helium pressure chamber, vaccum pump oil
Applications of Helium Leak Detector
Helium leak detection has a wide range of applications and has been found to be an important process in various industries such as automotive, aerospace, HVAC, refrigeration and semiconductor manufacturing. Semiconductor industry like packing, chip manufacturing, vacuummachine, epitaxial wafer, wafer, connector, filter, photovoltaic.
Methods of Helium Leak Detection
