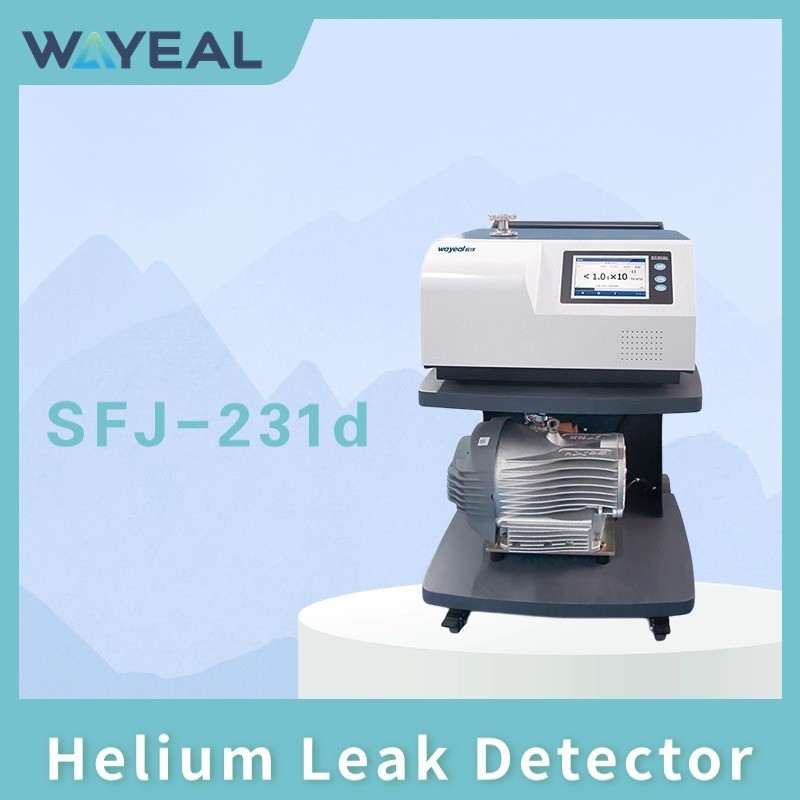

Wayeal SFJ-231d Oil Free Dry Pump Helium Leak Detector Machine Price

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number SFJ-231d
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 30 days
Payment Terms L/C, T/T
Supply Ability 200 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Wayeal Helium Leak Detector Product Diamension 645 * 678 * 965mm
Accuracy 1.0*10-12~1.0*10-3 Ion Source 2pcs, Iridium Coated Yttrium Oxide
Communication Interface RS232 Response Time(s) <1
High Light

Oil Free Dry Pump Helium Leak Detector

,

Dry Pump Helium Leak Detector

Leave a Message
Product Description

Wayeal SFJ-231d Oil Free Dry Pump Helium Leak Detector Machine Price



Introduction of Helium Leak Detector



Leak testing is essential in quality assurance techniques and functionality testing for a wide range of pressured equipment. A helium leak detector is a safe and easy leak testing instrument that uses helium gas. Helium leak detector is the most accurate type of leak testing. The SFJ-231d series helium leak detector offer various outstanding features and superb performance for leak detection using helium gas.





Parameters of Helium Leak Detector



Wayeal SFJ-231d Oil Free Dry Pump Helium Leak Detector Machine Price















Performance Indicators








Minimum detectable leak rate
(Pa·m3/s)/ vacuum mode
5.0×10-13
Minimum detectable leak rate
(Pa·m3/s)/ sniffer mode
5.0×10-9
Response time(s) <1
Startup time(min) ≤2
Leakage detection range
(Pa·m3/s)
5.0×10-13~1.0×10-3
Leakage rate display range
(Pa·m3/s)
1.0×10-13~1.0×10-3
Maximum allowable leak detection pressure(Pa) 1500
Detectable quality 2,3,4(H2 , He3, He4)





















Basic Configuration












Man-machine interface 7 "color LCD Touch Screen
Ion source 2pcs, iridium coated yttrium oxide, automatic switching
I/O Input/output interface Eight inputs and eight outputs
Communication interface RS232/485, USB*2
MES interface Standard
Physical size of instrument
(W)×(D)×(H),mm
592 * 498 * 370mm
Specifications of leak detection port DN25 KF
Power Supply AC220V, 50HZ/60HZ
Operating temperature 0-40ºC
Power 1000W
Display language Both Chinese and English
Leakage rate display Figure, bar chart, curve chart





Features of Helium Leak Detector



1. Original imported molecular pump
2. S
elf-protection functions prevents the background from being polluted;
3. Double iridium with ion source
4.
Automatic evacuation pressure and time setting, high effciency of leak detectio
5. Clean air circuit system



Applications of Helium Leak Detector

Helium leak detectors are used in a variety of applications, including vacuum systems, refrigeration and air conditioning systems, and research and development. They are particularly useful for detecting small leaks that would be difficult to locate using other methods.



Methods of Helium Leak Detection

Wayeal SFJ-231d Oil Free Dry Pump Helium Leak Detector Machine Price 0

Wayeal SFJ-231d Oil Free Dry Pump Helium Leak Detector Machine Price 1

Wayeal SFJ-231d Oil Free Dry Pump Helium Leak Detector Machine Price 2



Wayeal SFJ-231d Oil Free Dry Pump Helium Leak Detector Machine Price 3



Wayeal SFJ-231d Oil Free Dry Pump Helium Leak Detector Machine Price 4Wayeal SFJ-231d Oil Free Dry Pump Helium Leak Detector Machine Price 5

Wayeal SFJ-231d Oil Free Dry Pump Helium Leak Detector Machine Price 6
