DOAS Ambient Air Quality Monitoring Instruments TDLAS Gas Analyzer For Automotive

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number YC7500
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 15 days
Payment Terms L/C, T/T
Supply Ability 50 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Ambient Air Quality Monitoring Instruments For Detection Of CO Emissions From Vehicles Size 520*900*830mm
Weight 40KGS Detection Gas CO, CO2, HC,NO
Light Absorption Coefficient 0-16m Response Time 7s
High Light

TDLAS Ambient Air Quality Monitoring Instruments

,

DOAS Ambient Air Quality Monitoring Instruments

,

Automotive tdlas gas analyzer

Leave a Message
Product Description

Ambient Air Quality Monitoring Instruments for Detection of CO Emissions from Vehicles



Product Introduction

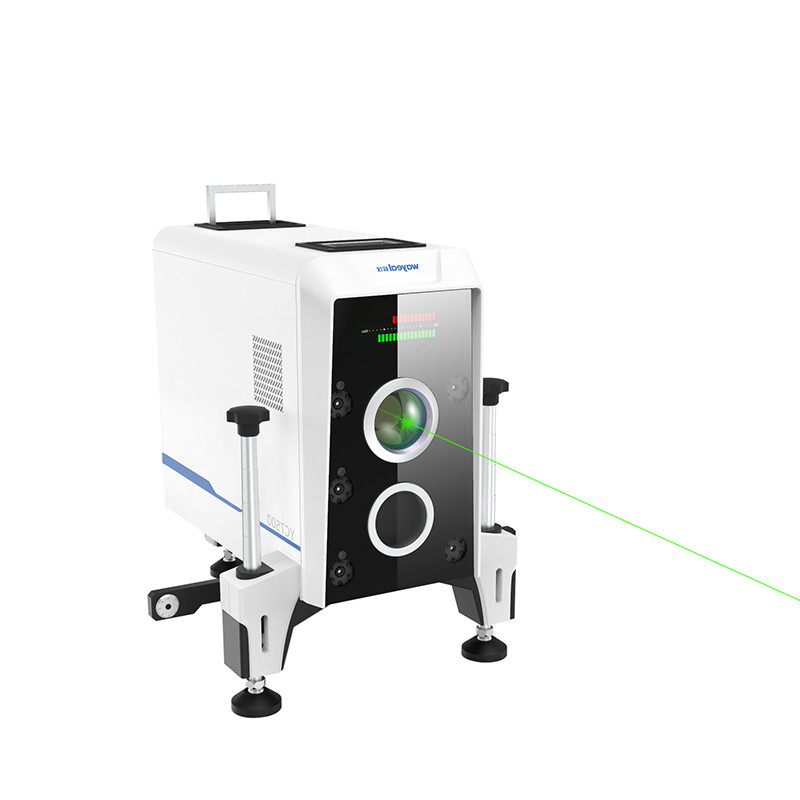

The YC7500 motor vehicle emission telemetry system is an advanced, efficient and convenient exhaust emission telemetry product. The exhaust components CO and CO2 are measured by the laser diode absorption spectroscopy (TDLAS technology) in the near-infrared band, HC and NO are measured by the ultraviolet differential absorption spectroscopy (DOAS) with ultraviolet light source, the opacity is measured by a green light source with a wavelength of 550-570nm, and the Ringelmann Blackness is photographed by video camera equipment.





Main Componets
Exhaust temperature sensing analyzer, velocity acceleration, vehicle identification, IPC, black smoke capture, server, meteorological instrument, management platform software, mini air quality monitoring system, mobile APP




Product Parameter

Product Name Exhaust Gas Analyzer Ambient Air Quality Monitoring Instruments
Measurement Components Measurement Range Measurement Error
CO (0~10) % ≤10%
CO2 (0~16) % ≤10%
HC (0~10000) x10-5 ≤15%
NO (0~10000) x10-5 ≤10%
Opaque Smoke Level 1-100% ≤5%
Smokiness Factor 0-50
Light Absorption Coefficient 0-16m
Response Time 0.7s

Speed Range Speed/Acceleration Systems
Speed Measurement Accuracy 1-100km/h
Technical Parameters of the License Plate Recognition System Speed:1-50km/h Speed: 50-100km/h
Error: ±1.5km/h Error: ±3km/h
Technical Parameters of the License Plate Recognition System
Vehicle image Capture Rate >98%
Vehicle License Plate Recognition Rate >95%



Product Performance



1. Through high-definition video capture cameras, high-definition lenses, flash lights and intelligent license plate recognition algorithms, it can realize such functions as license plate capture, video capture and video storage.



2. It can realize the functions of control drive of hardware equipment in the exhaust parameter system, the collection of sensor data, the information analysis and processing, the data storage and network uploading, and achieve the functions of motor vehicle screening, exhaust gas measurement, license plate capture, and over-standard law enforcement.



3. Environmental meteorological parameters are measured in real time through the use of high-precision sensors, such as wind speed, temperature, humidity, air pressure and other environmental parameters, providing equipment operating environment meteorological information for telemetry data analysis to ensure stable and reliable operation of equipment.


Industry Application



Pollutant emission monitoring of motor vehicles
