ODM Continuous Ambient Air Pollution Monitoring Instruments AQ7800

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number AQ7800
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 15 days
Payment Terms L/C, T/T
Supply Ability 20 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Ambient Air Quality Monitoring Instruments Repeatability ≤±5%
Linearity Error ≤±1% F.S. Measurement Method GC-FID
Analysis Cycle ≤15min Detector FID
High Light

AQ7800 air pollution monitoring instruments

,

ODM air pollution monitoring instruments

,

ODM ambient air monitoring instruments

Leave a Message
Product Description

Continuous Ambient Air Quality Monitoring Instruments of Total Non-methane Hydrocarbons



Product Introduction



The AQ7800 automatic ambient air quality non-methane monitoring system monitors methane, non-methane total hydrocarbons and the five meteorological parameters (temperature, humidity, pressure, wind speed, wind direction) and other related parameters.



Product Parameter



Product Name Ambient Air Quality Monitoring Instruments
Size 1030*720*2060mm, 970*900*1000mm
Working Temperature 15-35C°
Measurement Range 0-5ppm
Measurement Error ≤±1% F.S.
Measurement Method GC-FID
Detection Limit ≤20 ppb
Working Humidity ≤85%RH
Linearity error ≤±1% F.S.
Repeatability ≤±5%



Product Performance



1. Accurate and stable pressure and flow control, with a pressure control accuracy better than ±0.05kPa and a flow control accuracy better than 0.5% F.S.
2. Column box control accuracy is better than ±0.1℃.
3. Adopt imported valve, low maintenance and long service life.
4. The use of a miniature FID detector, more sensitive response to methane and non-methane total hydrocarbons.



Industry Application



Mainly for ambient air monitoring of methane and non-methane total hydrocarbons;
Ambient air monitoring, Atmospheric monitoring of plant boundaries in chemical parks

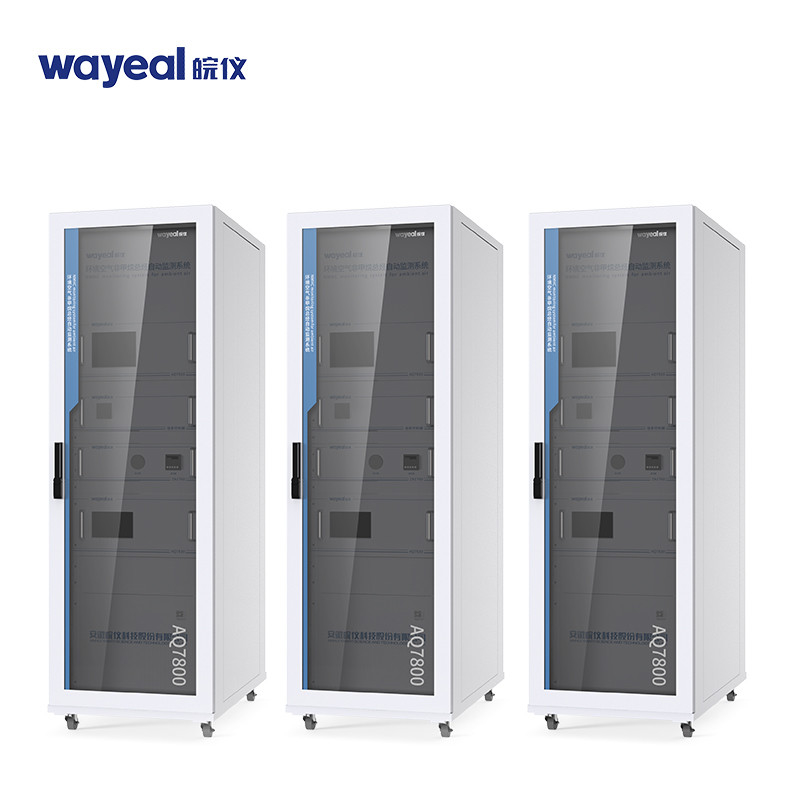

ODM Continuous Ambient Air Pollution Monitoring Instruments AQ7800 0

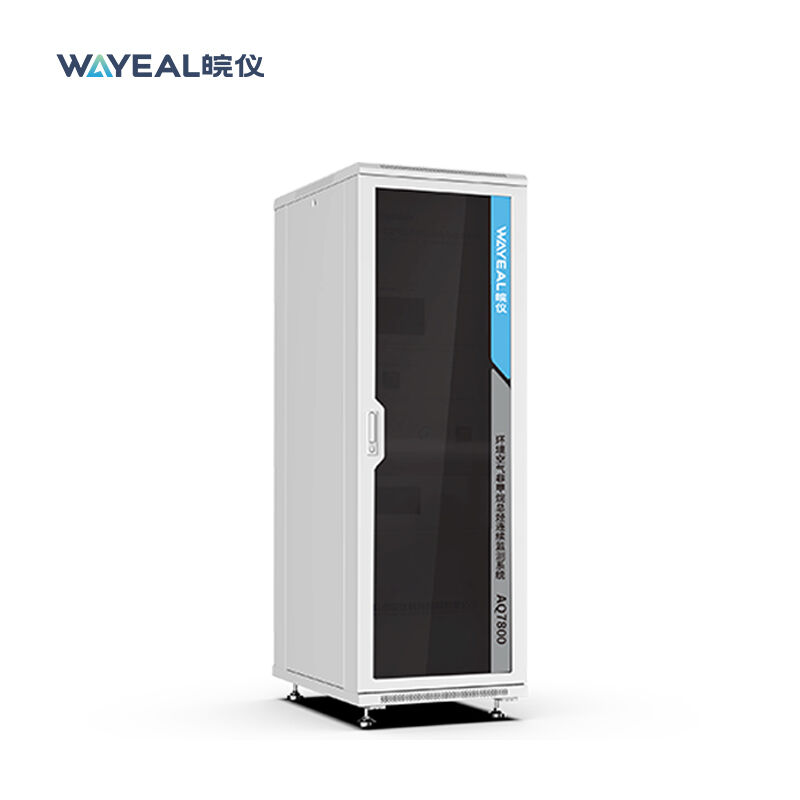

ODM Continuous Ambient Air Pollution Monitoring Instruments AQ7800 1



ODM Continuous Ambient Air Pollution Monitoring Instruments AQ7800 2

ODM Continuous Ambient Air Pollution Monitoring Instruments AQ7800 3
