Stack Continuous Emissions Monitoring System Cems Gas Analyzer For SO2 NOX O2

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number CEMS1250
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 25 days
Payment Terms L/C, T/T
Supply Ability 20 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Continuous Flue Gas Emission Monitoring System For SO2 NOX O2 Monitoring Overall Size 930*730*2010mm
Gross Weight 177KGS Measure Method UV Differential Method
Usage Gaseous Pollutant Monitoring Application Area Thermal Power Plants
High Light

Stack Continuous Emissions Monitoring System

,

SO2 Continuous Emissions Monitoring System

,

Stack cems gas analyzer

Leave a Message
Product Description

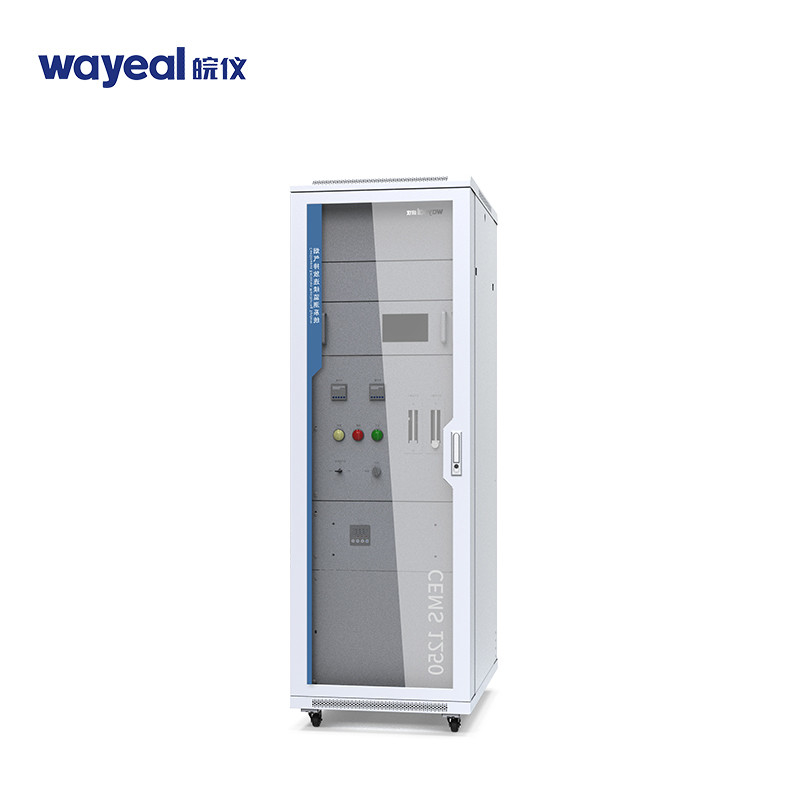

Wayeal Continuous Flue Gas Emission Monitoring System for Dust Concentration Detection



Product Introduction



The CEMS 1250 continuous flue gas emission monitoring system from Wayeal can continuously monitor SO2, NO, O2, soot concentration, flue gas temperature, pressure, flow rate, humidity and many other related parameters, and count the emission rate, total emission, etc. For example, gaseous pollutants are monitored using the UV differential method to measure the SO2 and NO content in the flue gas; the O2 content is measured using the electrochemical method; the flue gas temperature is measured using the temperature sensor; the flue gas pressure is measured using the pressure sensor; the flue gas flow rate is measured using the Pitot tube; the flue gas humidity is measured using the high temperature capacitive humidity sensor.



Product Parameter


Wayeal Continuous Flue Gas Emission Monitoring System for SO2 NOX O2 Monitoring

Product Size

930*730*2010mm

Weight

177KGS

Measure Method

UV Differential Method,electrochrmical, temperature sensor, pressure sensor, pitot tube

Nitrogen Oxide Measurement

Heat Resistance Moisture Meter

Contaminant Range

SO2 concentration 0-45/100 mg/m3

NOX concentration 0-45/100 mg/m3

O2 content 0-25%

Pre-processing

Condensing Method





Product Performance



1. Gas analyser with xenon lamp light source with a life expectancy of 10 years.

2. Gas analyzer adopts grating spectroscopy and array sensing, no moving parts, high reliability

3. Simple system wiring and easy installation and maintenance.

4. The optical fibre connection between the light source, gas chamber and spectrometer makes the components easy and inexpensive to maintain and replace.





Industry Application



(Emission monitoring of stationary sources producing pollutant gases from industrial processes)

Thermal power plantsIndustrial kilns, industrial boilersResidential heating boilersIron and steel metallurgyWaste incineration plantsPetrochemical industryCement industry, etc.
