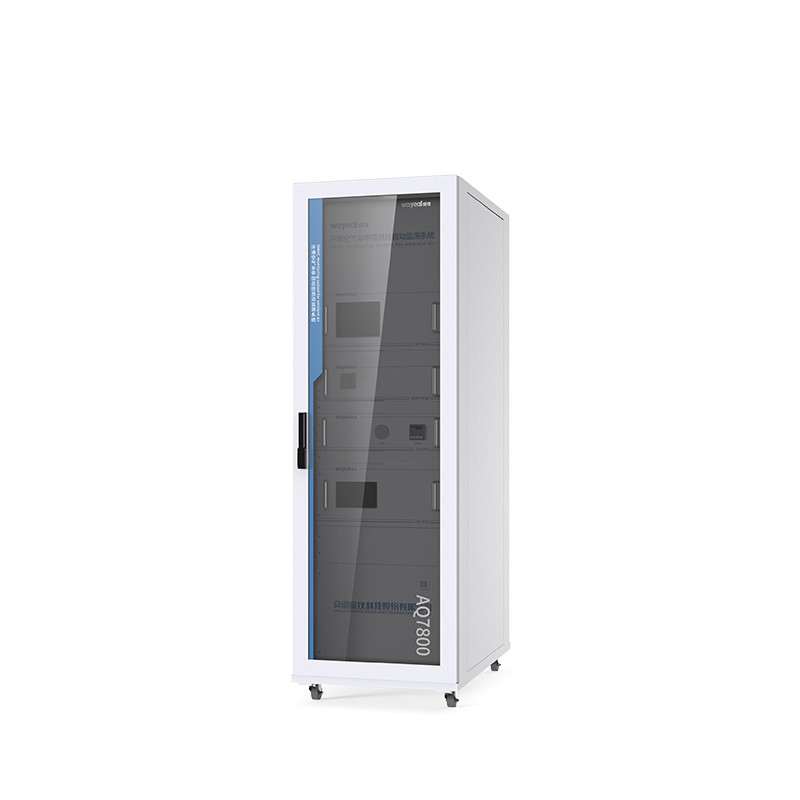

GC-FID Total Hydrocarbon Analyzer Air Pollution Monitoring Instruments

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number AQ7800
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 15 days
Payment Terms L/C, T/T
Supply Ability 50 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Ambient Air Quality Monitoring Instrument Packing Wooden Case Or Customization
Detection Method GC-FID Detection Of Substances Methane, Non-methane Hydrocarbons
Detection Limit ≤20 PpbC Application Urban Roads, Airports VOCS Monitoring
High Light

GC-FID total hydrocarbon analyzer

,

Air total hydrocarbon analyzer

,

GC-FID air pollution monitoring instruments

Leave a Message
Product Description

Ambient Air Quality Monitoring Equipment for Non-methane Total Hydrocarbons Detection



Product Introduction



The continuous ambient air monitoring instruments uses the GC-FID method to directly measure the concentration of methane and non-methane hydrocarbons by back-blowing and enrichment of the sample gas, enabling accurate measurement of low The continuous ambient air non-methane monitoring system uses the GC-FID method to directly measure methane and non-methane concentrations by back-blowing and enrichment of the sample gas. The system operates with a constant flow rate of ambient air into the sampling system. After de-dusting, the sample is enriched and removed at low temperature by a large capacity composite enrichment column, the MFC accumulates the sampling volume, the valve is switched and the back-blowing is performed, resulting in a separate peak of non-methane total hydrocarbons and a direct measurement of the concentration.







Product Performance



1. Accurate determination of total non-methane hydrocarbons in ambient air with detection limits at the ppb level.

2. Low-temperature cold trap enrichment and removal technology to improve the accuracy of direct measurement of non-total methane hydrocarbons

3. Passivation treatment of the internal piping of the instrument, very low adsorption

4. Full cold point free design for non-destructive testing of high boiling points





Product Parameter



Ambient Air Quality Monitoring Instruments

Size

1030*720*2060mm, 970*900*1000mm

Working Temperature

15-35C°

Measurement Range

0-5ppm

Measurement Error

≤±1% F.S.

Measurement Method

GC-FID

Detection Limit

≤20 ppb

Working Humidity

≤85%RH



Industry Application



Urban air station MHC monitoring,
Urban roads, airports, ports VOCS monitoring
VOCS monitoring at enterprise plant boundaries
Park air VOCS monitoring
