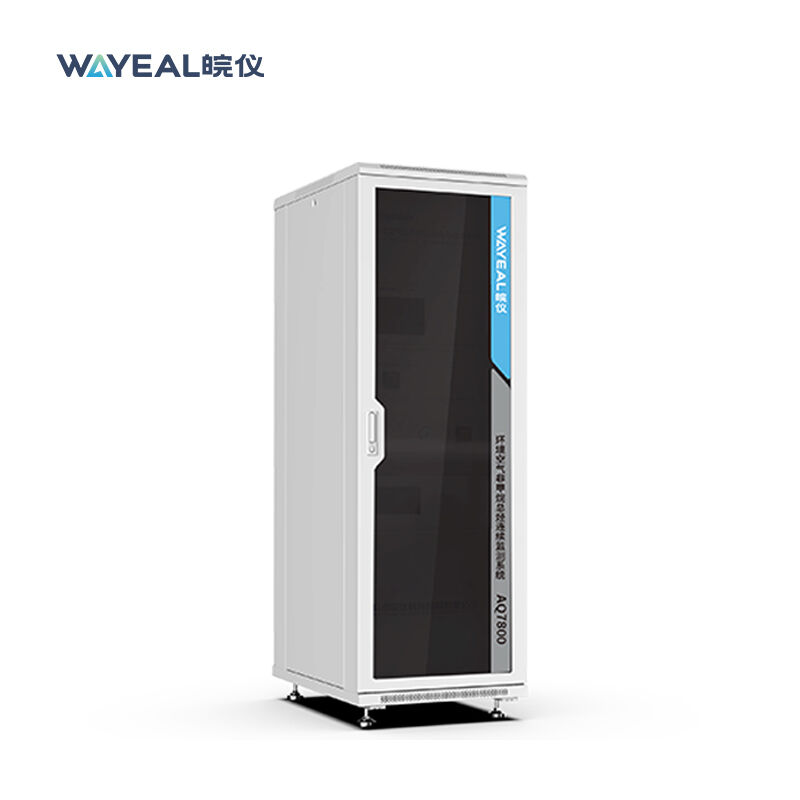

Wayeal Ambient Air Quality Monitor with GC-FID Method for NMHC Detection at ≤20 ppb in Urban Air Stations

Basic Properties
Place of Origin: Anhui, China
Brand Name: Wayeal
Certification: ISO, CE
Model Number: AQ7800
Trading Properties
Minimum Order Quantity: 1
Price: Negotiation
Payment Terms: L/C,T/T
Supply Ability: 50 Pieces Per Month
Tags

NOX nitrogen oxide analyzer

outdoor air quality measurement device

particulate monitoring systems
Specifications
Product Name: Wayeal Ambient Air Quality Monitoring Instruments For Non-methane Total Hydrocarbons Packing: Wooden Case
Diamension: 1030*720*2060mm, 970*900*1000mm Detection of substances: Methane, Non-methane Hydrocarbons
Detection Limit: ≤20 PpbC Application: NMHC Monitoring At Urban Air Stations
High Light:

Beta Attenuation environmental dust monitor

,

NMHC environmental dust monitor

,

NMHC beta attenuation particulate monitor
Product Description
NMHC Environmental Dust Monitor Beta Attenuation Particulate Monitor
Wayeal Ambient Air Quality Monitoring Instruments for Non-methane Total Hydrocarbons
Product Introduction
Our continuous ambient air monitoring instruments utilize the GC-FID method to directly measure methane and non-methane hydrocarbon concentrations through back-blowing and enrichment of sample gas, enabling precise measurement of low-concentration non-methane hydrocarbons (NMHC).
Product Performance
  • Accurate determination of total non-methane hydrocarbons in ambient air with detection limits at the ppb level
  • Low-temperature cold trap enrichment and removal technology enhances direct measurement accuracy of non-total methane hydrocarbons
  • Passivation treatment of internal instrument piping ensures minimal adsorption
  • Full cold point free design enables non-destructive testing of high boiling points
Technical Specifications
Parameter Specification
Size 1030*720*2060mm, 970*900*1000mm
Working Temperature 15-35°C
Measurement Range 0-5ppm
Measurement Error ≤±1% F.S.
Measurement Method GC-FID
Detection Limit ≤20 ppb
Working Humidity ≤85% RH
Industry Applications
  • Urban air station MHC monitoring
  • VOCS monitoring for city roads, airports, ports, and similar locations
  • VOCS monitoring at enterprise plant boundaries
  • Park air VOCS monitoring
