10ml-1000ml Automatic Water Monitoring System For Wastewater Treatment Plant
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Automatic Water Sampler For Industrial Waste Water Collection | Sampling Interval | 1min~9999min Can Be Set |
---|---|---|---|
Single Sample Retention Volume | 10ml-1000ml | Built-in Sampling Pump Suction Range | ≥6.5m |
Weight | 60KGS | Analogue Interface | 4mA~20mA/O.5V-2.5V |
High Light | 10ml automatic water monitoring system,1000ml automatic water monitoring system,1000ml automated water quality monitoring system |

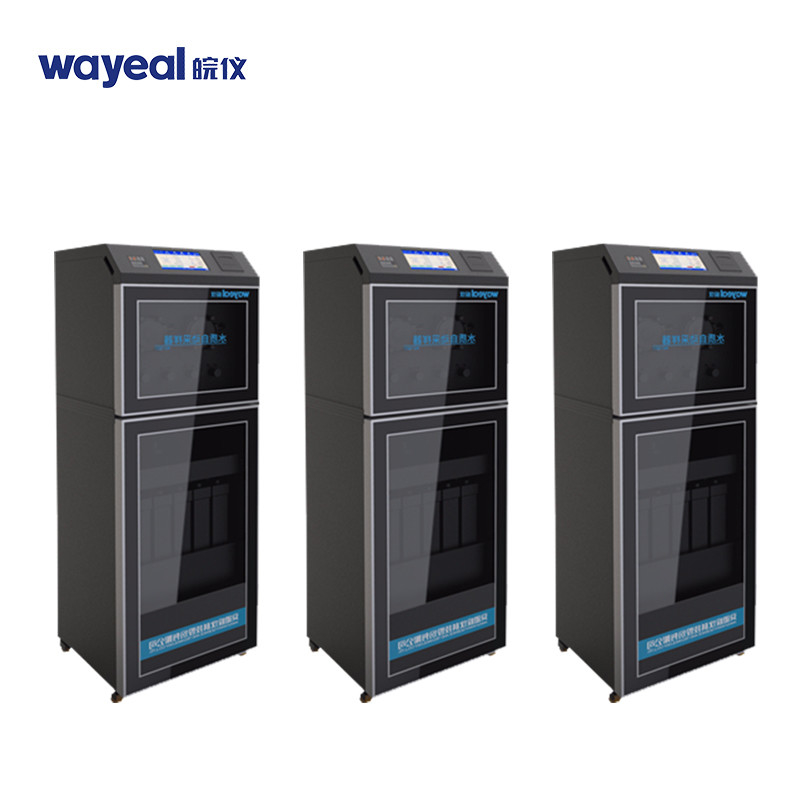

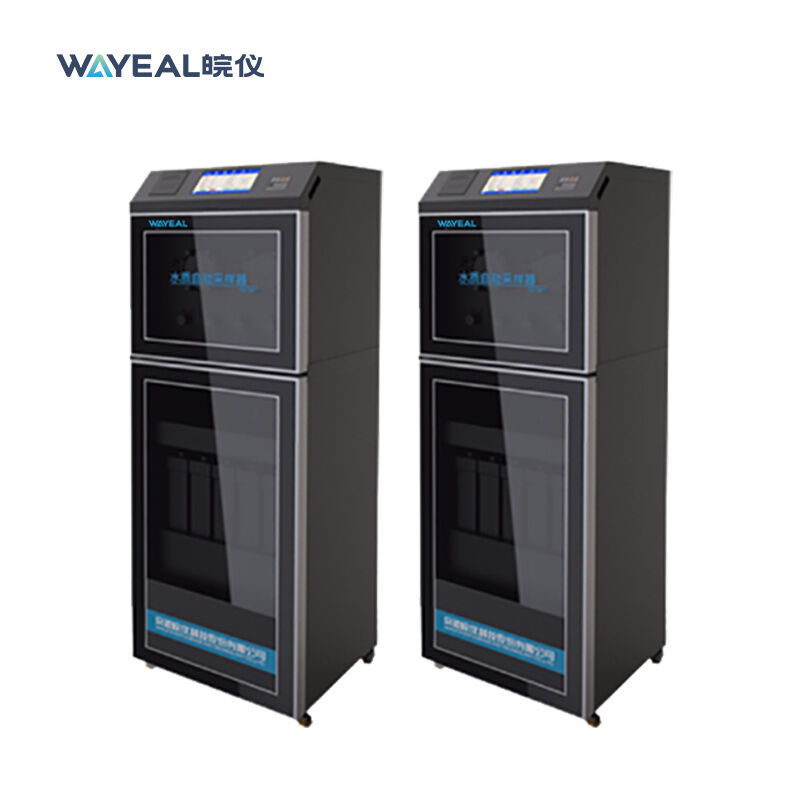

Wayeal Online Deep Water Sampler for Wastewater Treatment Plant
Product Introduction
WS1801 automatic water sampler using embedded control technology, is a full-featured intelligent sampler. It can be used in conjunction with a flowmeter to automatically adjust the sampling speed according to the flow rate, to track the flow rate and to achieve the continuity of sampling.
Product Parameter
Wayeal Online Deep Water Sampler for Wastewater Treatment Plant | |
Sampling Interval | 1min~999min |
Storage Temperature of Water Sample | 0°C-4°C |
Airtightness of Piping Systems | ≤-0.07MPa |
Qty of Sample Bottles | 25 Bottles |
Single Retention Volume | 10ml-1000ml |
Average Power | 75W |
Retention Volume Error | ±7%(200ml) Insulation |
Operating Voltage | AC220V±10%,50Hz±1Hz |
Analogue Interface | 4mA~20mA/O.5V-2.5V |
Product Performance
1. Power failure protection function: after the instrument is powered off and re-powered in the operating state, the instrument can automatically resume the original operating state, and the parameters are not lost after the power failure.
2. Automatic emptying function: After each sampling, the system can automatically empty the water in the tube to ensure that the sampling line is not clogged with sediment.
3. Rinse function: the sampling line can be automatically rinsed before each sample is taken to ensure the independence and representativeness of each collection.
4. Overflow prevention function: the number of bottles can be set by the user and the sample retention will be stopped when the set number of bottles is completed
5. Refrigerated water samples: Highly efficient refrigeration unit to keep retained water samples at 0°C~4°C
Product Application
Industrial enterprises, sewage treatment plants, surface water
