Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
ISO, CE
Model Number:
WS1801

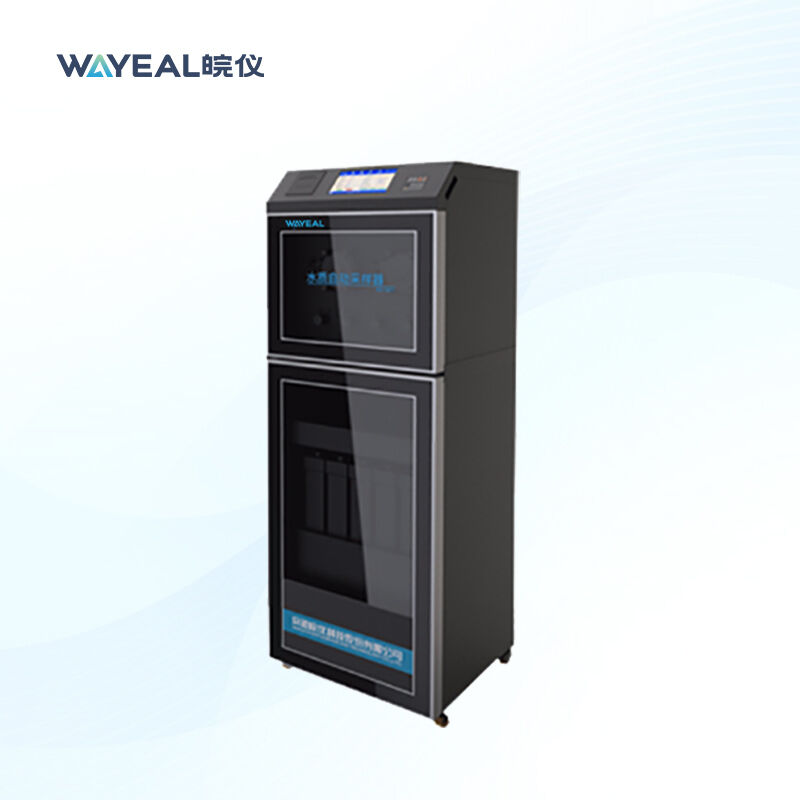

WS1801 Continuous Water Monitoring Equipment Automatic Water Quality Sampler
Product Introduction
WS1801 water quality automatic sampler using embedded control technology, is a fully functional intelligent sampler. A unique built-in water sample staging device provides uninterrupted mixed water samples, which can be used inline with the online monitor to achieve overrun retention, simultaneous sample retention and delivery of mixed samples.
Product Parameter
| Product Name | Continuous Water Monitoring Equipment Automatic Water Quality Sampler |
| Sampling Interval | 1min~999min |
| Storage Temperature of Water Sample | 0°C-4°C |
| Airtightness of Piping Systems | ≤-0.07MPa |
| Qty of Sample Bottles | 25 Bottles |
| Single Retention Volume | 10ml-1000ml |
| Average Power | 75W |
| Retention Volume Error | ±7%(200ml) Insulation |
| Operating Voltage | AC220V±10％,50Hz±1Hz |
| Analogue Interface | 4mA～20mA/O.5V-2.5V |
Product Performance
1. Split bottle retention function:The instrument can realize 1 to 25 bottles of sample separation, and the number of sample bottles can be set freely.
2. Sampling functions:Timed sampling, time isometric, flow isometric, flow tracking, external control sampling, serial control and other sampling triggering methods can be achieved.
3. Sample supply function:Uninterrupted mixed water samples can be supplied simultaneously to multiple online monitors for COD, ammonia nitrogen and heavy metals.
4. Sample Retention Function:Over-sampling, simultaneous sampling, direct sampling and serial controlled sampling can be achieved.
Product Application
Industrial enterprises, sewage treatment plants, surface water
