Industrial Continuous Water Monitoring Equipment Automatic Water Sampler 10ml-1000ml

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number WS1801
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 30 days
Payment Terms L/C, T/T, Western Union
Supply Ability 30 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Automatic Water Sampler For Industrial Waste Water Collection Sampling Interval 1min~9999min Can Be Set
Single Sample Retention Volume 10ml-1000ml Retention Volume Error ±7%
Operating Temperature 0℃-50℃ Working Humidity ≤85%RH
High Light

10ml Continuous Water Monitoring Equipment

,

1000ml Continuous Water Monitoring Equipment

,

Industrial Automatic Water Sampler

Leave a Message
Product Description

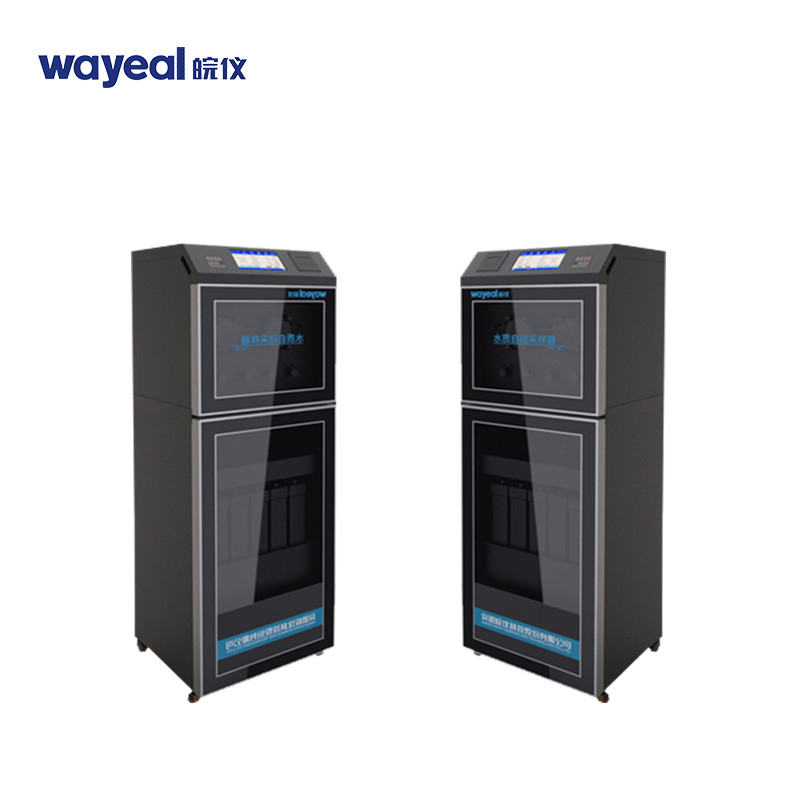

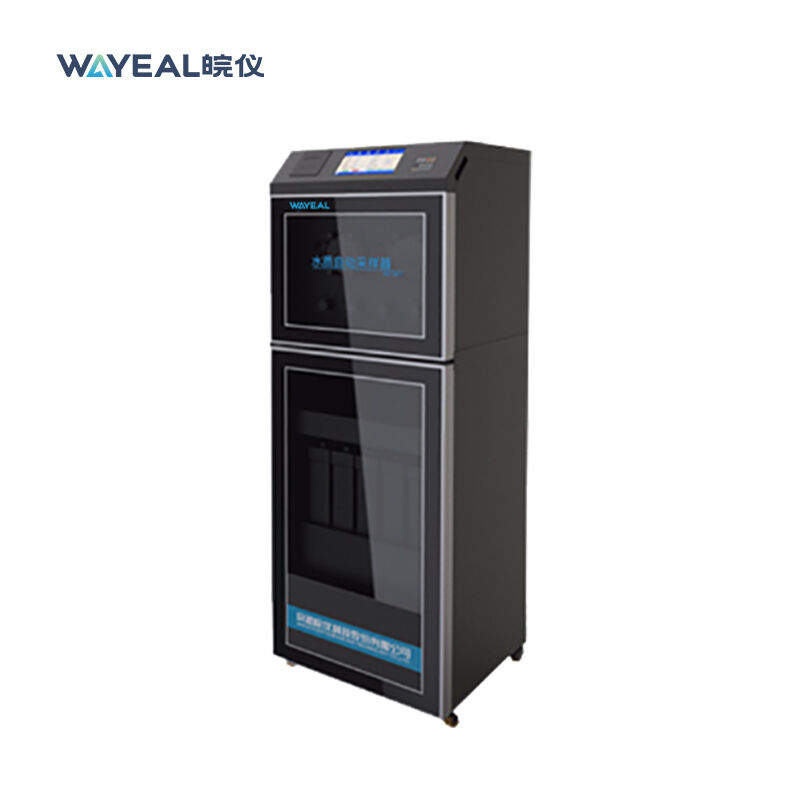

Wayeal WS1801 Automatic Water Sampler for Industrial Waste Water Collection



Product Introduction



WS1801 automatic water sampler is a fully functional and intelligent sampler. It can be used in conjunction with an online monitor to achieve the functions of over-sampling, simultaneous sample retention and transport of mixed samples.





Product Parameter



Wayeal WS1801 Automatic Water Sampler for Industrial Waste Water Collection
Sampling Interval 1min~999min
Storage Temperature of Water Sample 0°C-4°C
Airtightness of Piping Systems ≤-0.07MPa
Qty of Sample Bottles 25 Bottles
Single Retention Volume 10ml-1000ml
Average Power 75W
Retention Volume Error ±7%(200ml) Insulation
Operating Voltage AC220V±10%,50Hz±1Hz
Analogue Interface 4mA~20mA/O.5V-2.5V


Product Performance



1. Sample retention and acid addition function: sample preservation without deterioration and easy storage and transportation.

2. Automatic calibration: the sampling and retention volumes are automatically calibrated and the accuracy is not affected by the ageing of the peristaltic pump tube. No need for frequent manual calibration for more accurate sampling and sample retention.



3. Sample record function: records the bottle number, time, volume and measurement value of each sample. 2000 data records can be recorded.

4. Large colour screen:7" TFT true colour touch screen, clear and beautiful interface display, easy menu operation.

5. Communication function: Remote reset, remote start sampling, remote parameter modification and remote extraction of sample records can be achieved through the RS232 interface of the instrument.



Product Application



Industrial enterprises, sewage treatment plants, surface water
