Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
ISO, CE
Model Number:
IC6200

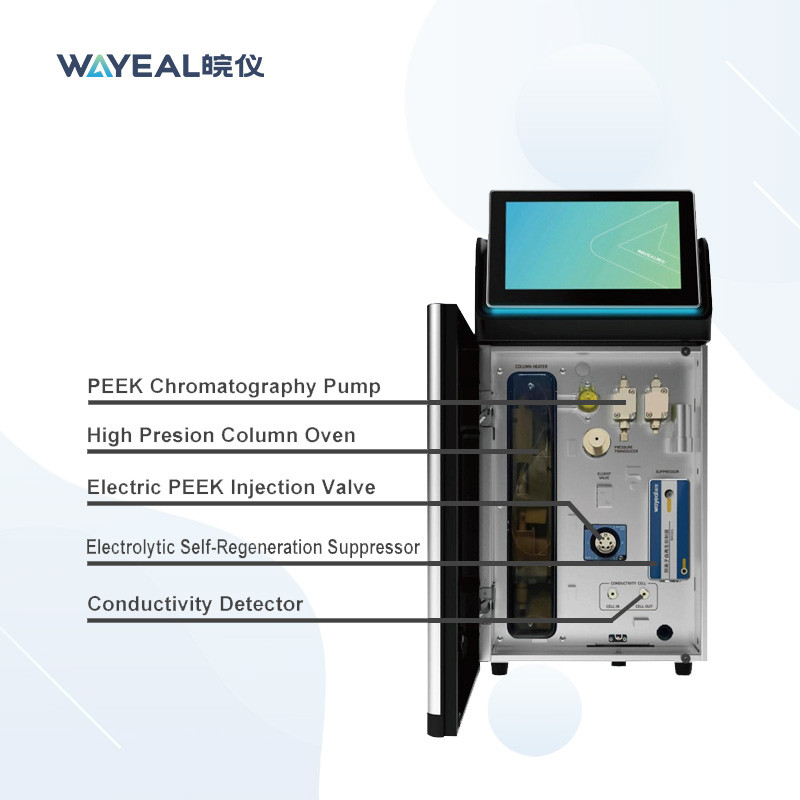

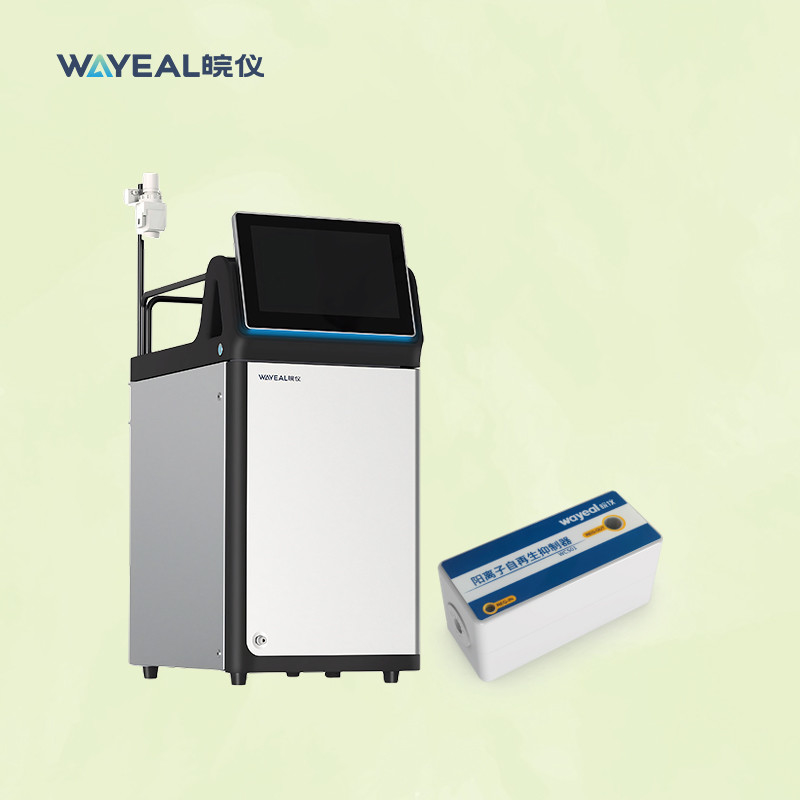

Wayeal Original Manufacturer Ion Chromatography Lab Instrument for Food Analysis
Introduction of Ion Chromatography Instrument
Ion chromatography instrument is a type of high performance liquid chromatograph, so it is also known as high performance ion chromatography (HPIC) or modern ion chromatography, which differs from traditional ion exchange column chromatography mainly because the resin has a high cross-linkage and low exchange capacity, and the injection volume is very small.
Parameters of Ion Chromatography Instrument
| Wayeal IC6200 Series Integrated Anion Or Cation Ion Chromatography System | |
| System Parameter | |
| Qualitative Repeatability | ≤0.5% |
| Quantitative Repeatability | ≤1% |
| Pump System | |
| Flow Rate | (0.001～10.000)mL/min |
| Pump Head Pressure Resistance | (0 ~ 35) MPa |
| Flow Rate Setting Inaccuracy | <0.1% |
| Flow Stability | <0.1% |
| Pressure Display Accuracy | 0.01Mpa |
| Pressure Pulsation | <0.5% |
| Conductivity Detector | |
| Baseline Noise | ≤0.1%FS |
| Baseline Drift | ≤0.5%FS |
| Minimum Detectable Concentration (Cl) | ≤0.0002μg/mL |
| Minimum Detection Concentration (Li) | ≤0.0001μg/mL |
| Conductivity Cell Volume | ≤ 0.6μL |
| Conductivity Detection Range | 0-15000μS/cm |
| Detector Resolution | 0.00238nS/cm |
| Conductivity Cell Temperature Setting Error | ±0.01°C |
| Resolution of Conductivity Cell Temperature Display | 0.001°C |
| Suppressor | |
| Constant Current Source Range | 0-500mA in 0.1mA increments |
| Column Oven | |
| Temperature Range | Room temperature +5°C~85°C |
| Control Temperature Stability | ≤ 0.1°C |

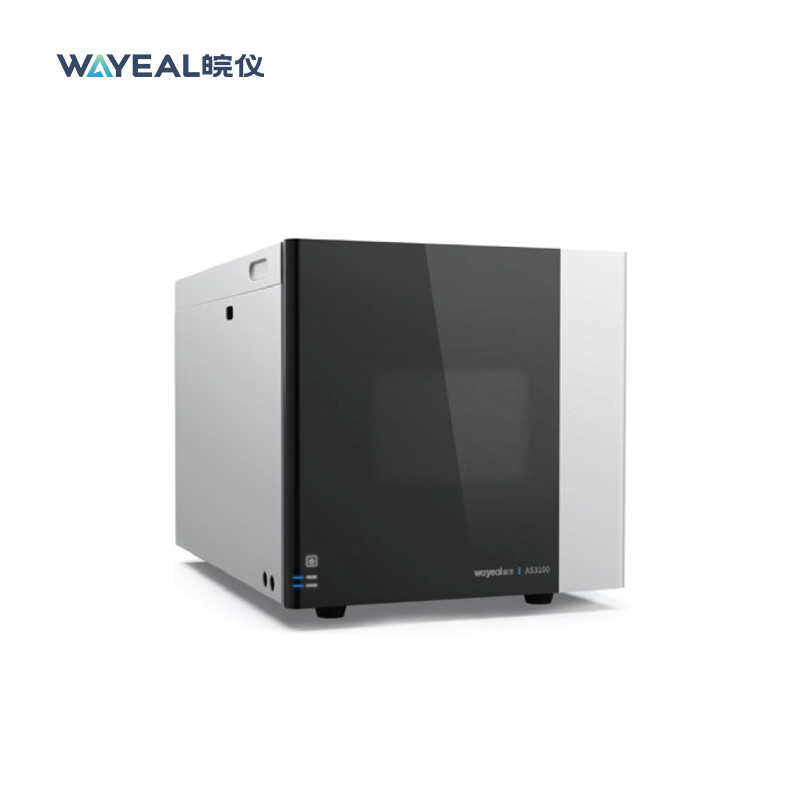

| Autosampler | |
| Number of Sample Vials | ≥ 120 (1.5mL standard sample bottle) |
| Repeatability |
Full loop injection < 0.3% RSD, Partial injection < 0.5% RSD, Non-destructive injection < 1 % RSD (injection volume > 5uL) |
| Syringe Size | Standard: 500μL; optional; 250μL, 1000μL, 2500μL |
| Loop Size | Standard: 100μL; optional: 20μL, 50μL, 200μL |
| Linearity | >0.999 |
| Cross-contamination | <0.01% |

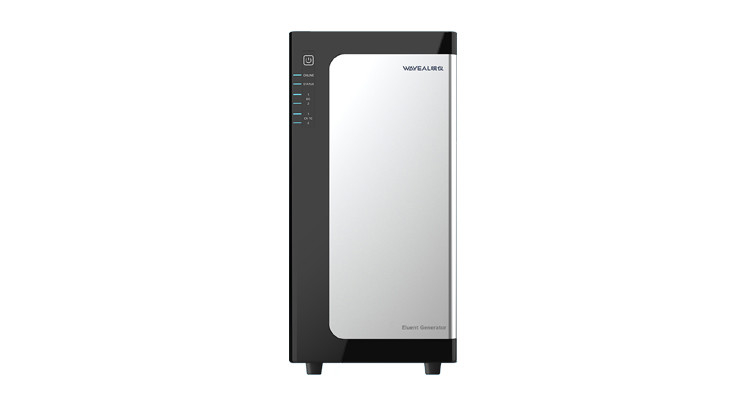

| Eluent Generator | |
| Flow Rate Range | 0.001 to 3.000mL/min |
| Eluent Concentration Range | KOH, MSA-0.1 to 100mM |
| Concentration Accuracy | 0.1mM |
| Original Concentration of Electrolyte | 25% KOH/MSA |
| Volume of Electrolyte | 1000mL |
| Maximum Working Pressure | 21MPa (3000psi) |
| Gradient Accuracy | 1.5% |
Performance of Ion Chromatogaphy Instrument
1. One-button operation allows the system to clean the system after the analysis is completed, ensuring cleaning results, reducing time and costs, and increasing work efficiency.
2. High and low voltage protection for immediate protection of the entire analysis and testing system.
3. Pre-heating of the drench solution prior to the injection valve to avoid negative effects such as poor reproducibility and peak spread due to temperature differences.
4. High accuracy, efficient temperature control and temperature compensation of the conductivity cell guarantee stability and high sensitivity of the detection and provide a wide dynamic detection range for simultaneous analysis of high and low content components.
5. Electrolytic self-regenerating membrane inhibition method, reagent-free design, no additional acid and alkali addition, no peristaltic pump regeneration.
Industry Application
Environment, food, medicine, agriculture, grain and oil, and chemical industry
