Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
ISO, CE
Model Number:
VM1700

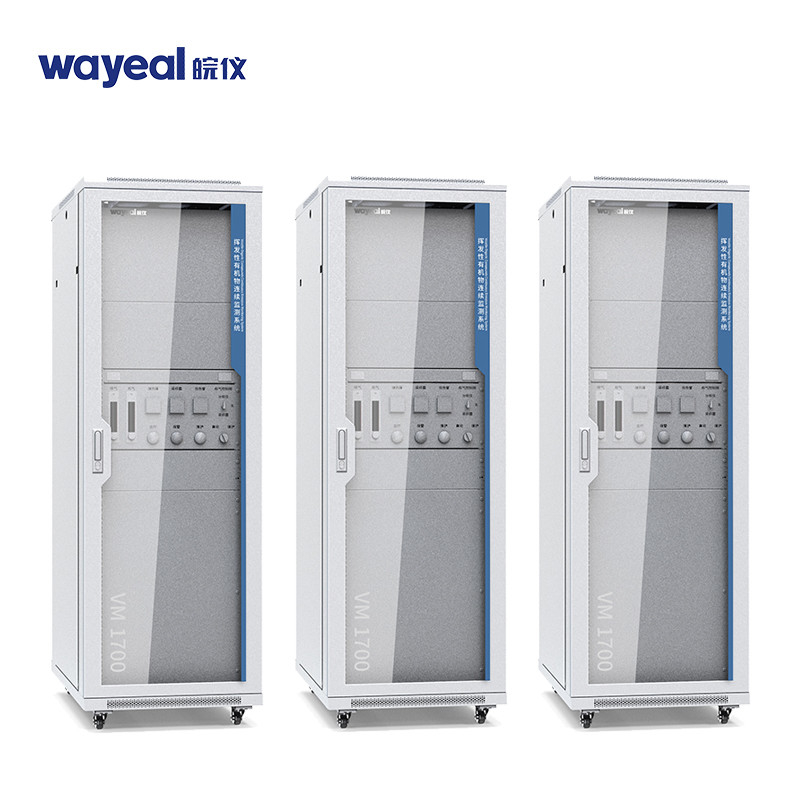

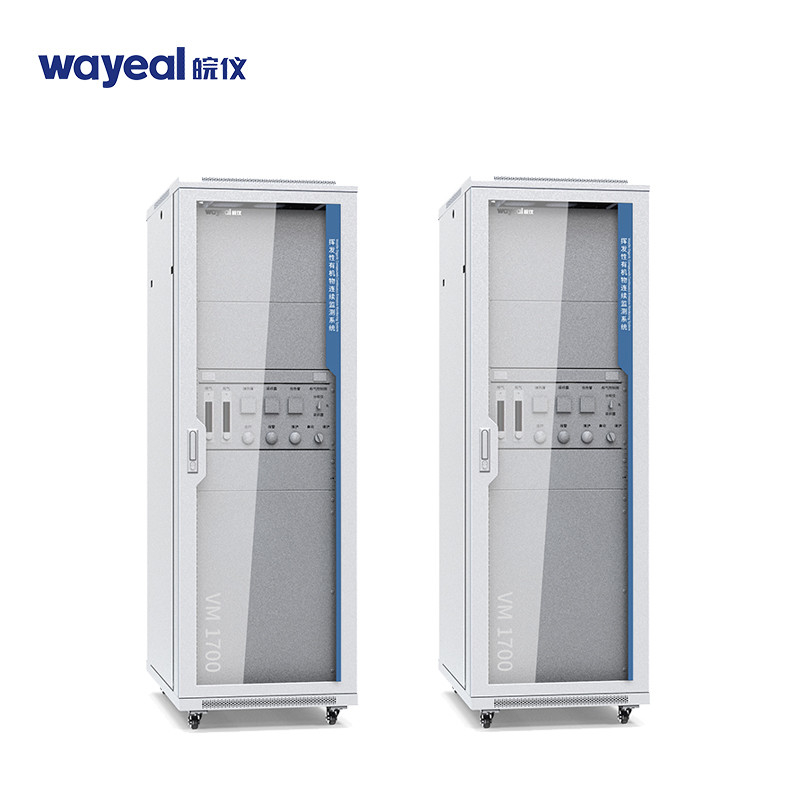

Continuous Emission Monitoring System for Organic Exhaust Gas Concentration Measurement
Product Introduction
The VOCs online monitoring system consists of a gaseous pollutant monitoring sub-system, a flue gas parameter monitoring sub-system and a data acquisition and processing sub-system. It can continuously monitor methane (CH), total hydrocarbons (THC), non-methane hydrocarbons (NMHC), benzene and other pollutants, as well as count the emission rate and total amount of emissions based on a number of relevant parameters such as flue gas temperature, pressure and flow rate.
Product Parameter
| Continuous Emission Monitoring System for VOC Organic Exhaust Gas Concentration Measurement | |
| Measure Method | Gas Chromatography+FID |
| Usage | Environmental Monitoring |
| Detecting Gas | CH ,THC,NMHC, |
| Application | Online organic exhaust gas analyzer |
| Packing | Wooden Case |
Product Performance
1. Standard gas chromatography analysis method for accurate measurement.
2. The single cycle time is less than 90s, ensuring real-time monitoring.
3. Touch screen human-machine interface for simple operation and ease of use.
4. The system uses a sampling method with the main gas circuit pumping and the bypass analyser feeding to ensure the response time of the system.
5. Three-stage filtration to ensure the service time of the analyser.
Industry Application
It is widely used for monitoring emissions of non-methane hydrocarbons and benzene in industrial processes and environmental areas such as petrochemicals, fine chemicals, pharmaceuticals, semiconductor manufacturing, leather processing, printing, spraying, coating, etc.
