CEMS Continuous Emissions Monitoring System for CO2 HCL Concentration 175KG

  • CEMS Continuous Emissions Monitoring System for CO2 HCL Concentration 175KG
Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number CEMS 1300
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 25 days
Payment Terms L/C, T/T
Supply Ability 20 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Continuous Emission Monitoring System Of O2 CO CO2 HCl Concentration Measurement Overall Diamension 930*730*2010mm
Weight 175KGS Measure Method Differential Absorption Spectroscopy
Detecting Gas SO2 , NOX ,O2 ,CO, CO2 , HCL Transport Packing Wooden Case
High Light

175KG Continuous Emissions Monitoring System

,

HCL Continuous Emissions Monitoring System

,

HCL cems continuous emission monitoring system
Leave a Message
Product Description

Outdoor Air Pollution Monitor Detector Continuous Emission Monitoring System for Flue Gas



Product Introduction

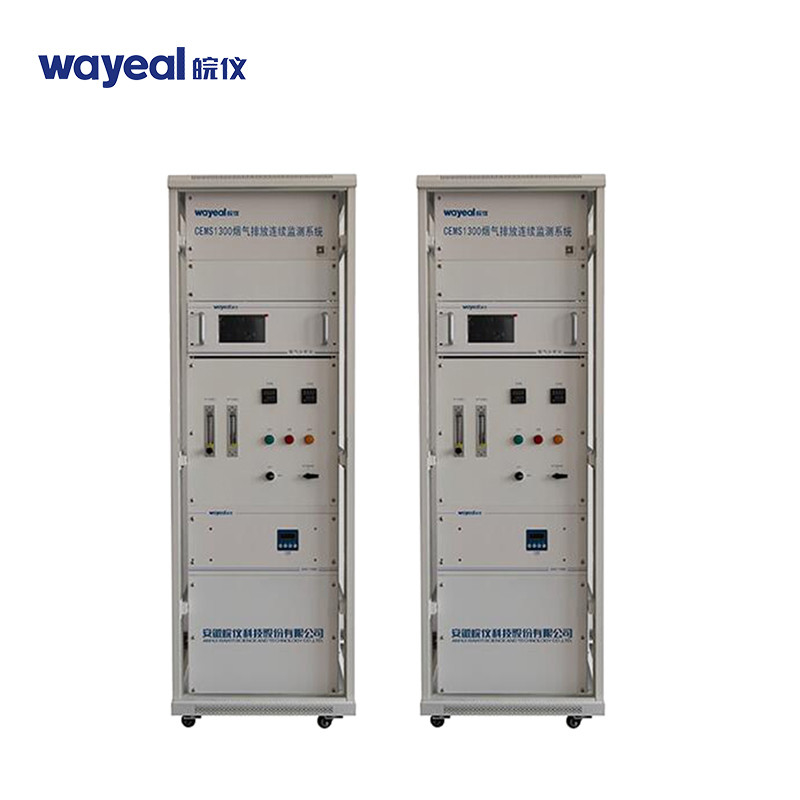

The CEMS1300  continuous emission monitoring system is used to continuously monitor SO2, NOx, O2, CO, CO2, HCI, soot (particulate matter) concentration, flue gas flow rate, flue gas pressure, flue gas humidity and many other related parameters as well as to count emission rates and total emissions.The whole system has the characteristics of simple structure, wide dynamic range, strong real-time, flexible networking and low operating cost. And the system adopts a modular structure, which is easy to combine and can be configured according to user requirements.







Product Parameter


CEMS Continuous Emission Monitoring System of O2 CO CO2 HCl Concentration Measurement
Size 930*730*2010mm
Weight 175KGS
Measure Method Differential Absorption Spectroscopy
Detecting Gas SO2 , NOX ,O2 ,CO, CO2 , HCL
Packing Wooden Case



Product Performance



1. The dust meter adopts the principle of in-situ laser backscattering, with high detection sensitivity and fast response speed.

2. Built-in self-calibration function, accurate measurement and good stability.

3. The condensation method is used to measure SO2 and NOX, avoiding inaccurate measurement due to SO2 absorption by condensate and the corrosion of the instrument by the formed sulphite.

4. With the functions of real-time on-site data transmission, remote fault diagnosis, statistical reports and graphical data analysis





Product Application



SO2 , NOX ,O2 ,CO, CO2 , HCL detecting



CEMS Continuous Emissions Monitoring System for CO2 HCL Concentration 175KG 0

CEMS Continuous Emissions Monitoring System for CO2 HCL Concentration 175KG 1



CEMS Continuous Emissions Monitoring System for CO2 HCL Concentration 175KG 2

CEMS Continuous Emissions Monitoring System for CO2 HCL Concentration 175KG 3
