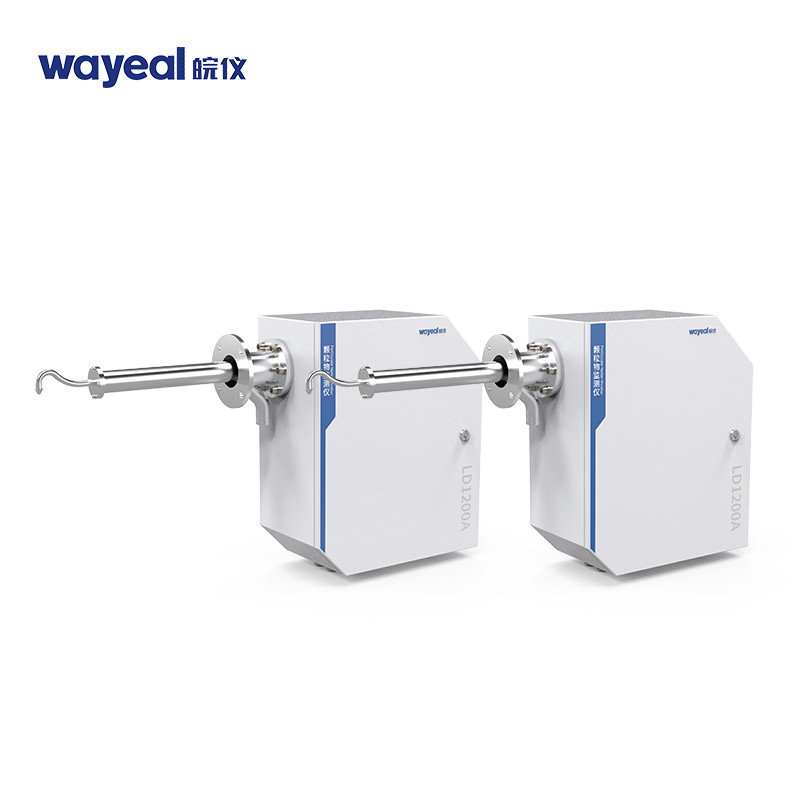

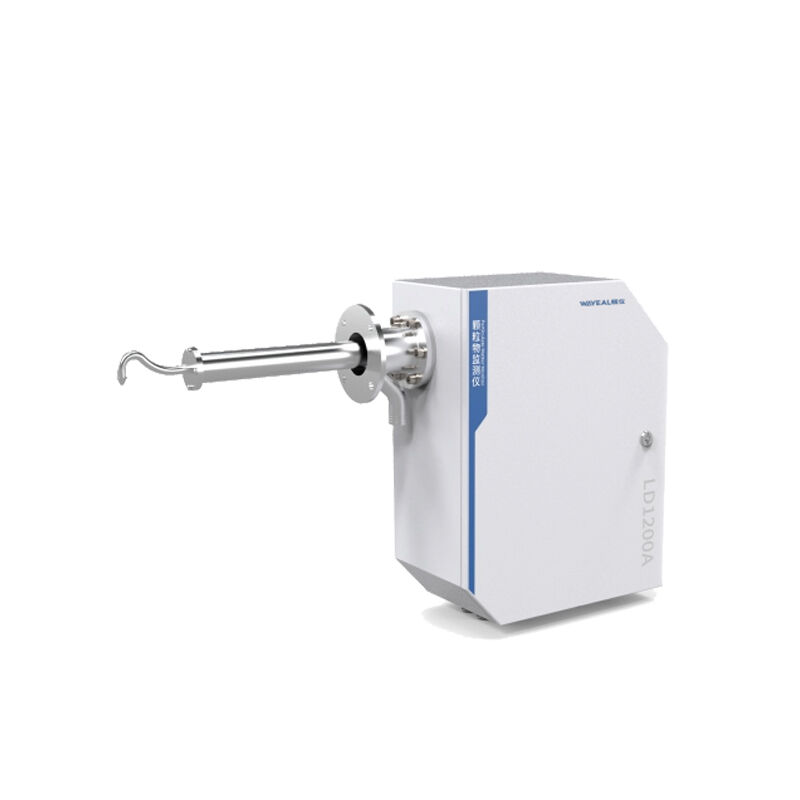

Particulate Matter Continuous Emissions Monitoring System Pm2.5 Pm10 Analyser

Basic Properties
Place of Origin: Anhui, China
Brand Name: Wayeal
Certification: ISO, CE
Model Number: LD1200A
Trading Properties
Minimum Order Quantity: 1
Price: Negotiation
Payment Terms: L/C,T/T
Supply Ability: 20 Pieces Per Month
Tags

cems analyzer

cems air pollution monitoring

cems emissions monitoring
Specifications
Product Name: Continuous Emission Monitoring System Of Particulate Matter Concentrations Measurement Application: CO, CO2, CH4, NH3, O3, HCI, HF
Color: White+Blue Power supply: 220V 50HZ
Analytical Method: Ultraviolet Fluorescence Method Packing: Wooden Case
High Light:

Pm2.5 Continuous Emissions Monitoring System

,

Pm10 Continuous Emissions Monitoring System

,

Pm2.5 pm10 analyser
Product Description

Continuous Emission Monitoring System of Particulate Matter Concentrations Measurement

Product Introduction

LD1200 is a highly sensitive device with robust design. It is provided with the high-temperature extraction sampling system scheme as well as the principle of laser forward scattering to measure particulate matters with high humidity and low concentration in the flue.

Product Parameter

Product Name Continuous Emissions Monitoring System pm2.5 pm10 Particle Dust Monitor
Size 2000*1200*800mm/600*600*600mm
Weight 50KGS
Detection Gas PM2.5, PM10
Minimum Detection Limit 0.1mg/m3
Packing Wooden Case
Material Stainless Steel
Color White, Blue
Packing Wooden Case or Customized

Product Performance

1. The optical structure has the laser forward scattering method with ultra-low range and ultra-high sensitivity, and the lowest testing limit is 0.1/m³.

2. It is provided with advanced high-temperature extraction sampling and high-temperature analysis measurement, which is not affected by moisture.

3. The zero point and range can be automatically calibrated, and the operation is stable and reliable.

4. It can achieve sampling at a constant velocity and the sampling speed can be predefined.

Industry Application

Mainly used in thermal power plants, industrial boiler kilns, garbage incineration plants, petrochemical industry, etc.
