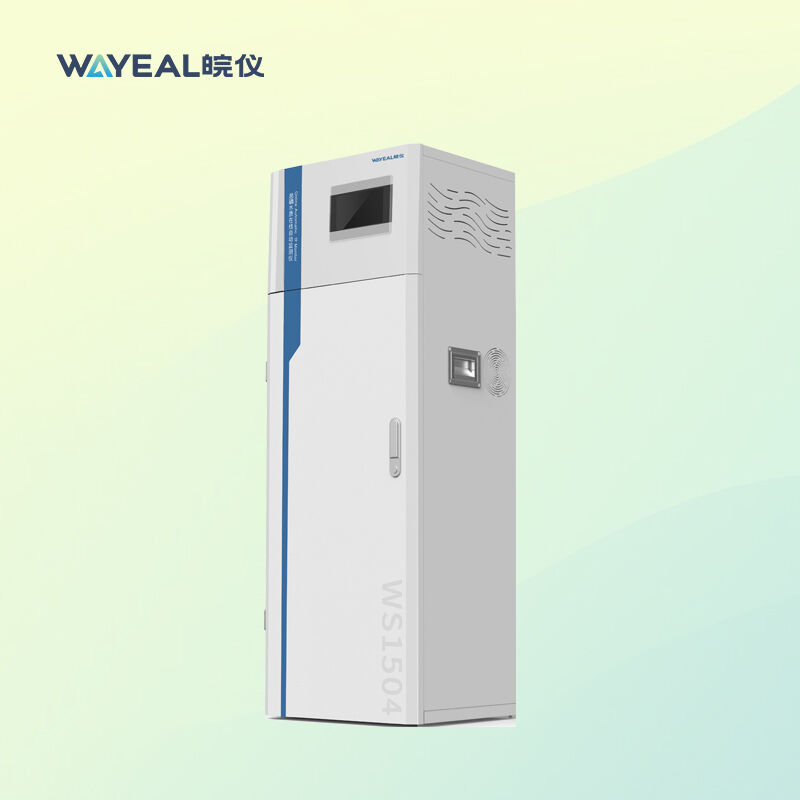

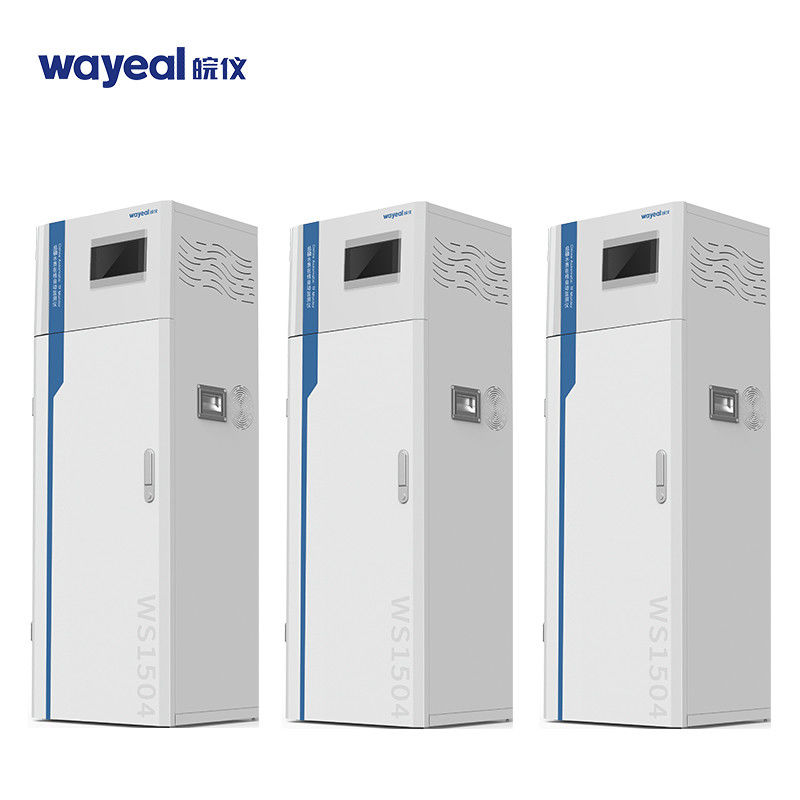

GB11893-89 Continuous Water Monitoring Equipment for Measuring Total Phosphorus WS1504

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number WS1504
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 30 days
Payment Terms L/C, T/T, Western Union
Supply Ability 10 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Continuous Water Quality Monitoring Equipment For Measuring Total Phosphorus Product Size 380*470*600mm
Application Surface Water Range Drift ≤±5%
Linearity ≤±5% Zero Drift ≤±5%
High Light

GB11893-89 Continuous Water Monitoring Equipment

,

WS1504 Continuous Water Monitoring Equipment

,

Water total phosphorus analyzer

Leave a Message
Product Description

Continuous Water Quality Monitoring Equipment for Measuring Total Phosphorus



Product Introduction



The potassium persulfate oxidation-ammonium molybdate spectrophotometry is adopted for WS1504 continuous water quality monitoring uquipment for total phosphorus content. In an acidic medium, orthophosphate reacts with ammonium molybdate to generate phosphomolybdenum heteropolyacid in the presence of antimony salt, which is immediately reduced by ascorbic acid to form a blue complex. This substance has a maximum absorption at 700nm. According to the Lambert-Beer law, the total phosphorus content in the water sample is measured through the photoelectric colorimetric method.



Product Parameter



Product Name Continuous Water Quality Monitoring Equipment for Measuring Total Phosphorus
Measurement Method Potassium persulphat oxidation - ammonium molybdate spectrophotometric method
Measurement Error ≤±3%
Zero Drift ≤ ±5%
Measurement Range 0.05~50mg/L
Repeatability ≤ ±5%
Range Drift ≤±1%



Product Performance



1. GB 11893-89 Water Quality - Determination of Total Phosphorus - Ammonium Molybdate Spectrophotometric Method is adopted.
2. The unique three-stage precision photoelectric metering device is used to realize fast and accurate reagent extraction and greatly reduce the impact of peristaltic pump tube aging;

3. Automatic electronically controlled safety gates are designed to take care of the safety of equipment operators and maintenance personnel.



Product Application



Sewage Treatment Plant, Enterprise Outfall
