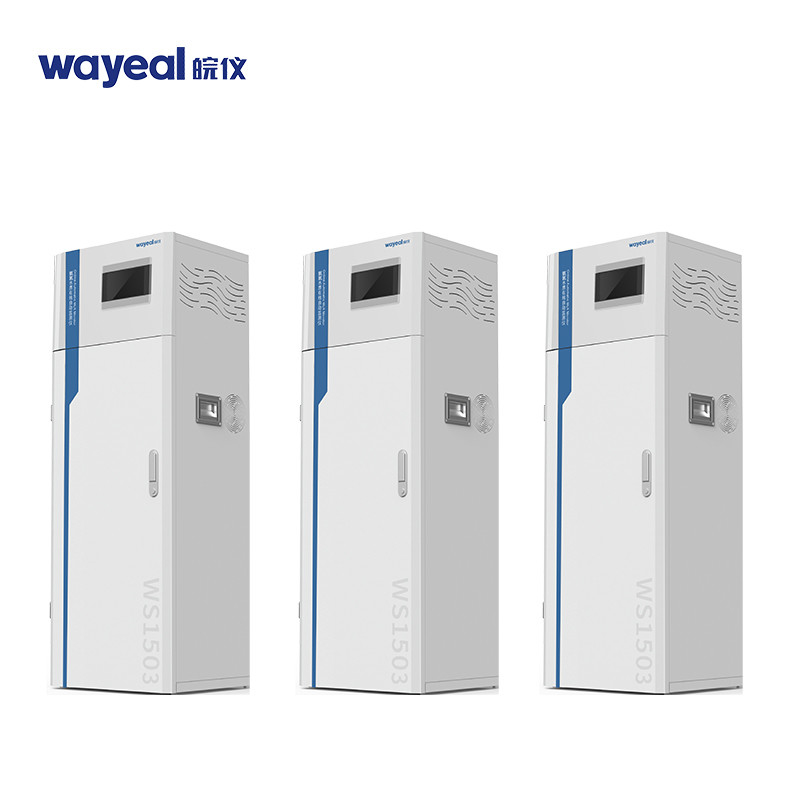

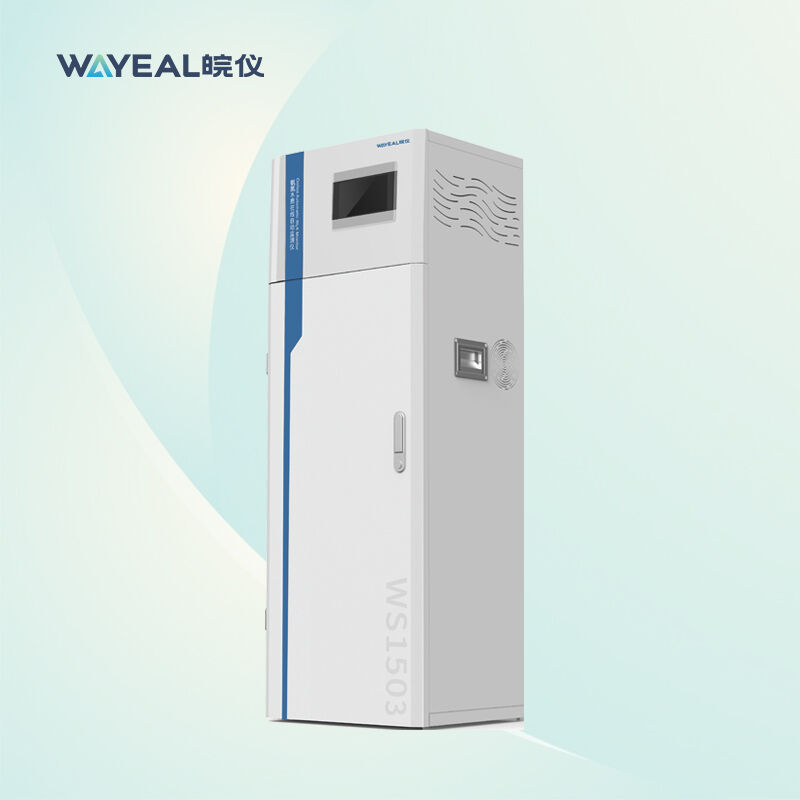

OEM Ammonia Nitrogen Analyzer Water Effluent Quality Monitoring System

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number WS1503
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 30 days
Payment Terms L/C, T/T, Western Union
Supply Ability 10 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Continuous Water Quality Monitoring Equipment Product Size 380*470*600mm
Weight 25KGS Measurement Error ≤±5%
Error Of Measurement ≤±3% Zero Drift ≤±0.02mg/L
High Light

OEM ammonia nitrogen analyzer

,

Effluent ammonia nitrogen analyzer

,

OEM effluent quality monitoring system

Leave a Message
Product Description

Ammonia Nitrogen Testing in Water Quality Continuous Water Quality Monitoring Equipment



Product Introduction



The salicylic acid spectrophotometry is adopted for WS1503 online automatic water quality monitor for ammonia nitrogen content. In the presence of alkaline medium and sodium nitrosoferricyanide, ammonium reacts with salicylate and hypochlorite ions to form a water-soluble blue compound, and the amount of ammonia nitrogen in the water sample is measured according to the Lambert-Bier law.



Product Parameter



Product Name Ammonia Nitrogen Testing in Water Quality Continuous Water Quality Monitoring Equipment
Measurement Method Salicylic Acid Spectrophotometric Method
Measurement Error ≤±3%
Zero Drift Zero-point Drift
Measurement Range 0~300.0mg/L
Repeatability ≤±2%
Range Drift ≤±1%



Product Performance



1. Unique three-stage precision photoelectric metering device for fast and accurate reagent withdrawal, significantly reducing the effects of peristaltic pump tube ageing.
2. Precise temperature compensation algorithms and ambient light elimination measures
3. Highly reliable reagent selection valves and anechoic flask assemblies with low failure rates and low maintenance effort.



Product Application



Sewage Treatment Plant, Enterprise Outfall
