Wayeal Continous CO2 Ambient Air Quality Monitoring Instruments for Motor Vehicle

  • Wayeal Continous CO2 Ambient Air Quality Monitoring Instruments for Motor Vehicle
Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number YC7500
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 15 days
Payment Terms L/C, T/T
Supply Ability 50 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Mbient Air Quality Monitoring Instruments For Motor Vehicle Exhaust Measurement Size 520*900*830mm
Weight 40KGS Detection Gas CO, CO2, HC,NO
Light Absorption Coefficient 0-16m Response Time 7s
High Light

Wayeal Ambient Air Quality Monitoring Instruments

,

CO2 Ambient Air Quality Monitoring Instruments

,

Wayeal air quality monitoring instruments
Leave a Message
Product Description

Continous Ambient Air Quality Monitoring Instruments for Motor Vehicle Exhaust Measurement



Product Introduction

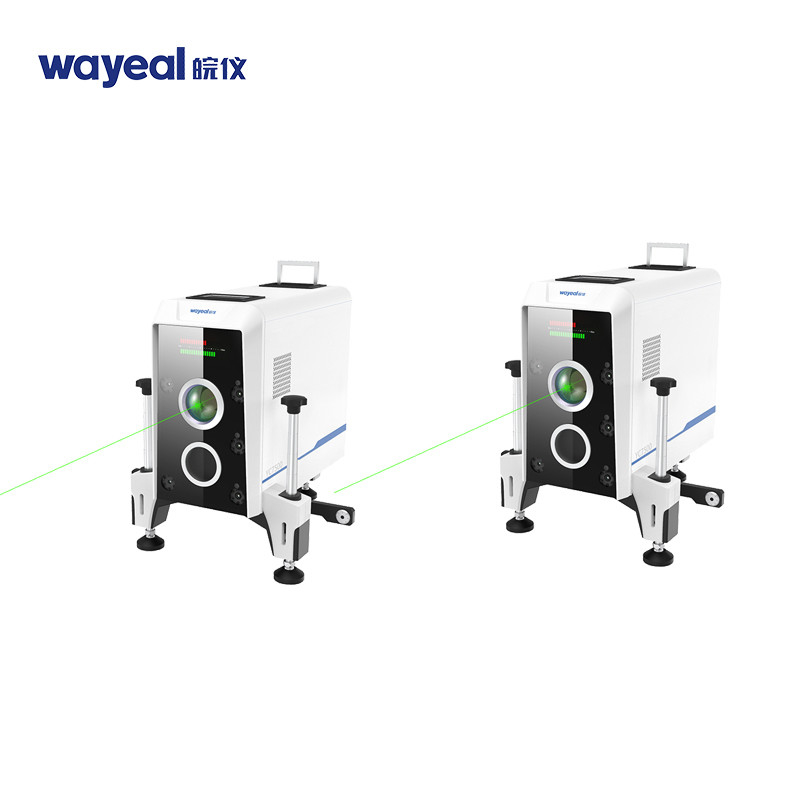

YC7500 motor vehicle exhaust remote sensing detection system product series is an advanced, efficient and convenient exhaust gas telemetry product developed by Wanyi based on years of technical experience in the field of gas analysis. There are YC7500-H horizontal fixed type, YC7500-W vertical fixed type and YC7500-V mobile vehicle-mounted type series products available.




Main Componets
Exhaust temperature sensing analyzer, velocity acceleration, vehicle identification, IPC, black smoke capture, server, meteorological instrument, management platform software, mini air quality monitoring system, mobile APP




Product Parameter

Product Name Exhaust Gas Analyzer Ambient Air Quality Monitoring Instruments
Measurement Components Measurement Range Measurement Error
CO (0~10) % ≤10%
CO2 (0~16) % ≤10%
HC (0~10000) x10-5 ≤15%
NO (0~10000) x10-5 ≤10%
Opaque Smoke Level 1-100% ≤5%
Smokiness Factor 0-50
Light Absorption Coefficient 0-16m
Response Time 0.7s

Speed Range Speed/Acceleration Systems
Speed Measurement Accuracy 1-100km/h
Technical Parameters of the License Plate Recognition System Speed:1-50km/h Speed: 50-100km/h
Error: ±1.5km/h Error: ±3km/h
Technical Parameters of the License Plate Recognition System
Vehicle image Capture Rate >98%
Vehicle License Plate Recognition Rate >95%



Product Performance



1. Telemetry mainframe
Stainless steel 304, waterproof, dustproof, anti-corrosion can work normally in rain and snow.
2. Telemetry auxiliary machine
Adopt high precision processing emitting lens and anti-corrosion coating technology to ensure accurate, stable and reliable measurement optical path.
3. Speed/acceleration measurement system
By using high precision speed radar, it provides effective data support for more accurate measurement of vehicle emission indicators.
4. Environmental meteorological parameter measurement system
Adopt high precision sensors to measure wind speed, temperature, humidity, air pressure and other environmental parameters in real time to provide equipment operation environment meteorological information for telemetry data analysis and ensure stable and reliable operation of equipment.
5. Intelligent License Plate Recognition System
Adopt high-definition video capture camera, high-definition lens and fill light, through intelligent license plate recognition algorithm, it can realize license plate capture, video capture video storage and other functions.
6. Motor vehicle exhaust data information control platform
To achieve the exhaust gas parameter system hardware equipment control drive, sensor data collection, information analysis and processing, data preservation network upload and other functions, can achieve the motor vehicle screening, exhaust gas measurement, license plate capture, over the standard law enforcement and other functions.


Industry Application



Ambient air monitoring, leakage monitoring in industrial parks, regional background station monitoring, mobile environmental monitoring vehicles

Wayeal Continous CO2 Ambient Air Quality Monitoring Instruments for Motor Vehicle 0



Wayeal Continous CO2 Ambient Air Quality Monitoring Instruments for Motor Vehicle 1





Wayeal Continous CO2 Ambient Air Quality Monitoring Instruments for Motor Vehicle 2



Wayeal Continous CO2 Ambient Air Quality Monitoring Instruments for Motor Vehicle 3
